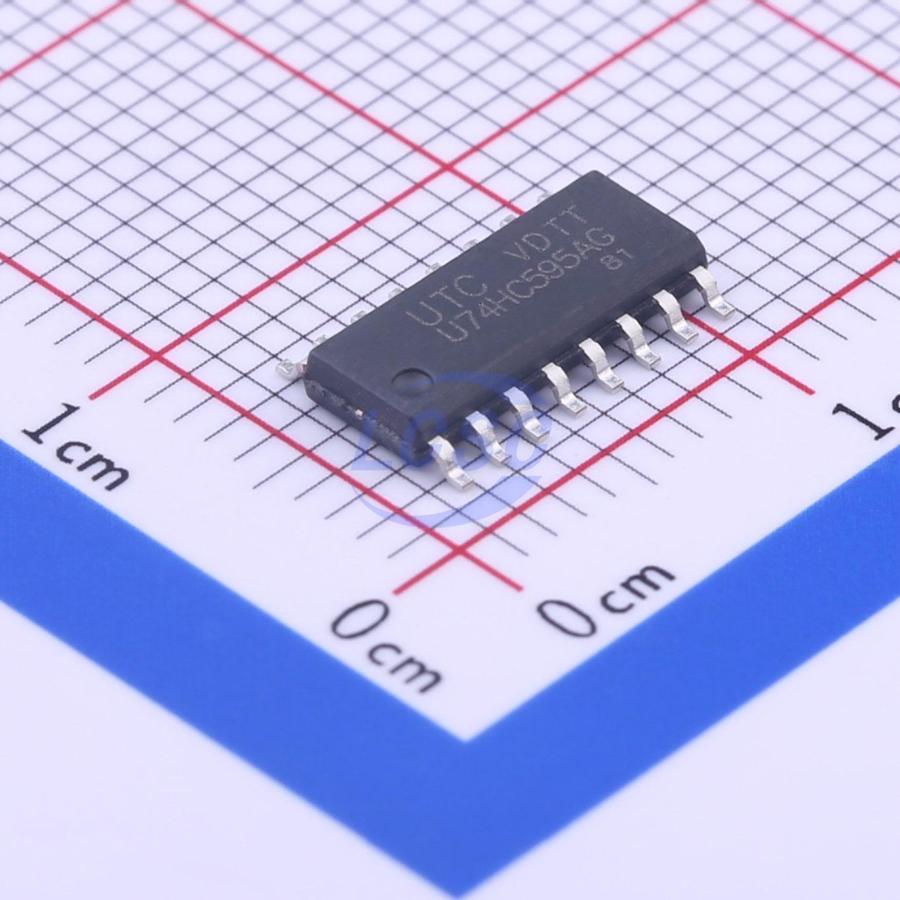

U74HC595AG-S16-R
2V~6V 35mA 14ns@6V,50pF Serial-to-Parallel or Serial SOP-16 Shift Registers
SOP-16RoHSActive
8-BIT SERIAL-IN SHIFT REGISTER WITH LATCHED 3-STATE PARALLEL OUTPUTS PROVIDING SERIAL OUTPUT
- Manufacturer
- UTC
- Manufacturer part #
- U74HC595AG-S16-R
- Store part #
- C87300
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C87300
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.12 | ₹95.60 |
| 50+ | ₹15.52 | ₹776.00 |
| 150+ | ₹13.73 | ₹2,059.50 |
| 500+ | ₹12.38 | ₹6,190.00 |
| 2,500+ | ₹11.02 | ₹27,550.00 |
| 5,000+ | ₹10.48 | ₹52,400.00 |
5 × ₹19.12
₹95.60
excl. GST
₹112.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
U74HC595AG-S16-R
₹95.60 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Series
- 74HC
- Output Current
- 35mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 14ns@6V,50pF
- Function
- Serial-to-Parallel or Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.332 g
Overview
The UTC 74HC595A contains an 8-bit register with asynchronous reset input and an 8-bit latch with output. The Serial Data Input (SER) will shift into the internal shift register during every LOW-to-HIGH transition on the Shift Clock. The latch will latch the 8-bit data from the shift register during the LOW-to-HIGH transition on the Latch Clock. The shift register also provides a serial output.
Key features
- Operation Voltage Range: 2~6V
- High Noise Immunity
- Output Compatibility with CMOS and TTL
- Specified from -40~+125°C
