UTC

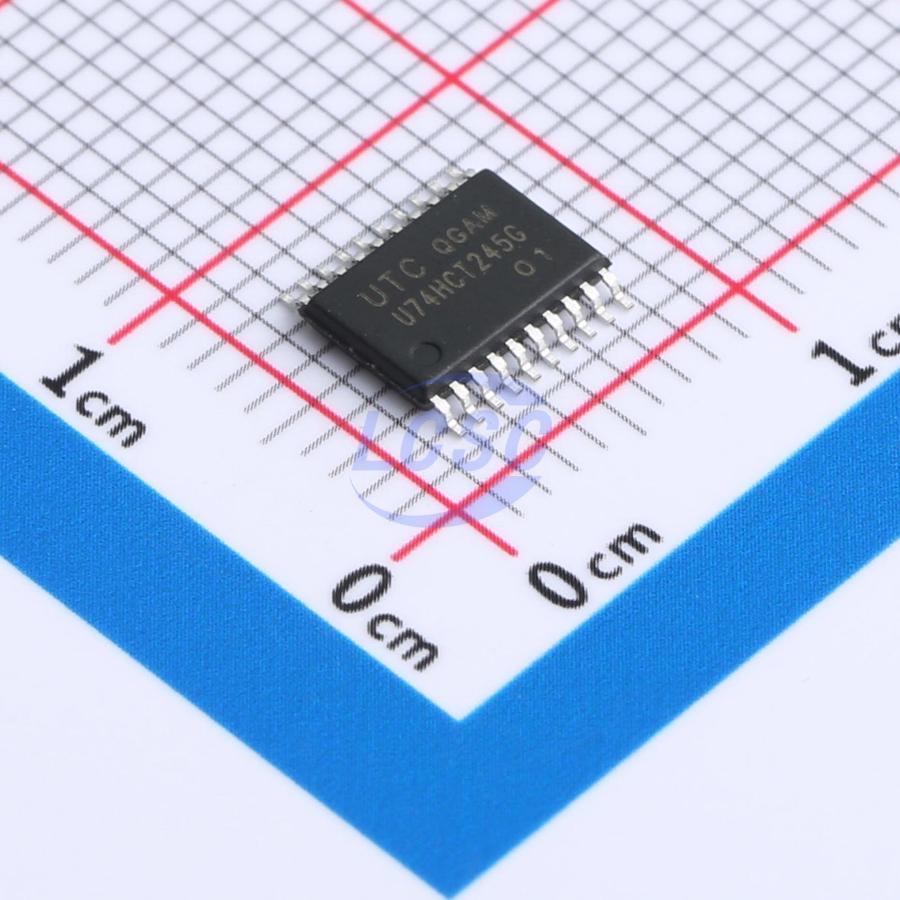

U74HCT245G

TTL-compatible CMOS 4.5V~5.5V 14ns@5.5V,50pF 8uA TSSOP-20 Gates and Inverters RoHS

TSSOP-20ROHS CompliantActive

CMOS IC Octal Bus Transceiver with 3-State Outputs

Manufacturer: UTC
Manufacturer part #: U74HCT245G
Store part #: C7494911
Package / case: TSSOP-20
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,005 in stock

#C7494911

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹33.51	₹167.55
50+	₹27.33	₹1,366.50
150+	₹24.67	₹3,700.50
500+	₹21.38	₹10,690.00
3,000+	₹19.90	₹59,700.00
6,000+	₹19.02	₹1,14,120.00

Quantity (min 5, multiples of 5)

5 × ₹33.51

₹167.55

excl. GST

₹197.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

U74HCT245G

₹167.55 for 5 + GST

Specifications

output type: Tri-State
Input Type: TTL-compatible CMOS
Logic Family: 74HCT
Voltage - Supply: 4.5V~5.5V
Propagation Delay: 14ns@5.5V,50pF
Output Logic Level - Low: 1mV~100mV;170mV~260mV
Features: Controllable output enable
Input Logic Level - Low: 800mV
Input Logic Level - High: 2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 4.4V~4.499V;3.98V~4.3V
Quiescent Current(Iq): 8uA
Number of Channels: 8;-
Current - Output High(IOH): 6mA
Current - Output Low(IOL): 6mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.565 g

Overview

The U74HCT245 is designed for the asynchronous communication between data buses. While the direction-control(DIR) is high, data transmits from the A bus to the B bus. Data transmits from the B bus to the A bus if DIR is low. The output-enable OE will isolate the device from the buses when high voltage is applied on it.
