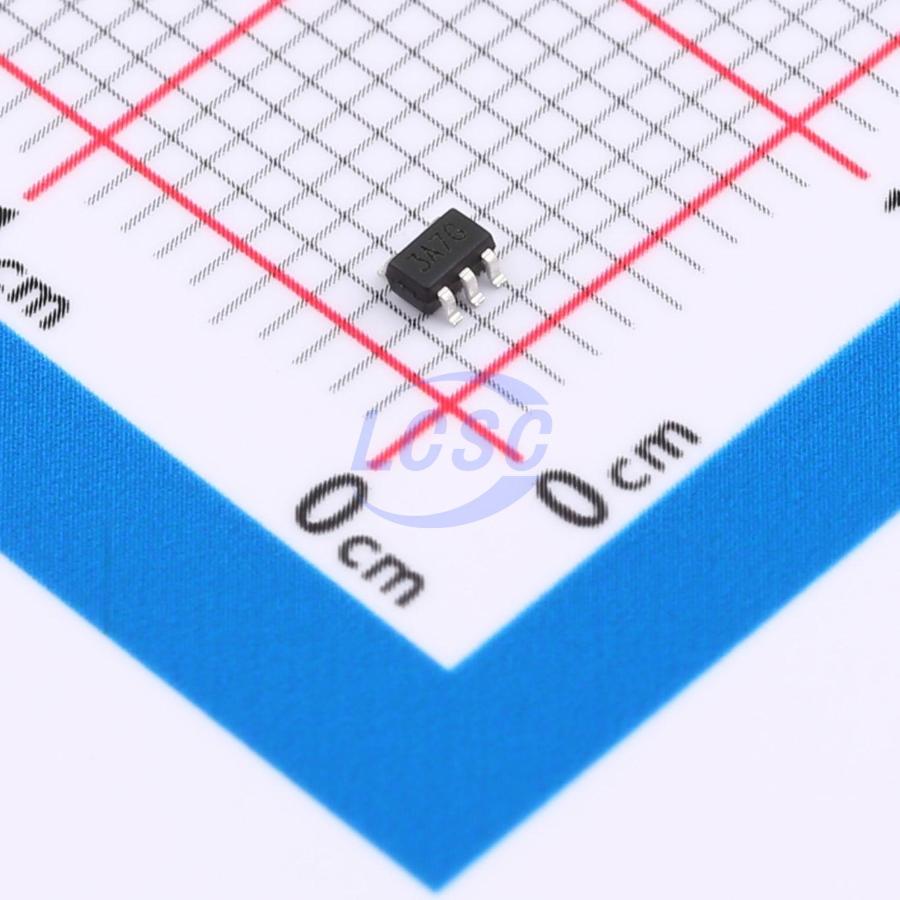

U74LVC1G17G
Schmitt trigger 1.65V~5.5V 8.3ns@5V,50pF 10uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
CMOSIC Single Schmitt-trigger Buffer
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC1G17G
- Store part #
- C7494900
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,380 in stock
#C7494900
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.20 | ₹72.00 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹4.99 | ₹1,497.00 |
| 3,000+ | ₹4.45 | ₹13,350.00 |
| 6,000+ | ₹4.01 | ₹24,060.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.20
₹72.00
excl. GST
₹84.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC1G17G
₹72.00 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 8.3ns@5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The UTC U74LVC1G17 is a single Schmitt-trigger buffer, it provides the function Y = A. The device have different input threshold levels for positivegoing (V_T+) and negative-going (V_T-) signals because of the Schmitt-trigger action in the input. This device has power-down protective circuit, preventing device destruction when it is powered down.
Key features
- Operation Voltage Range: 1.65V~5.5V
- Low Power Current: I_CC = 10μA (Max.)
- ±24mA Output Drive (V_CC = 3.0V)
- Power Down Protection
