UTCDatasheet (PDF)

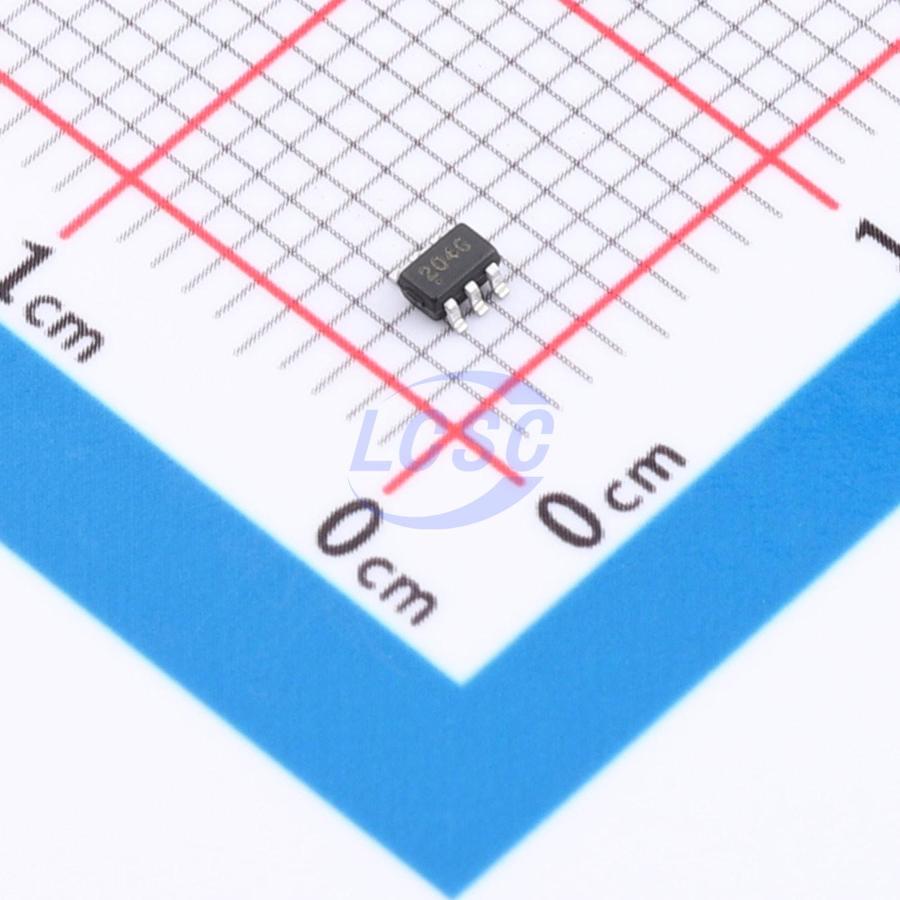

U74LVC2G04G-AL6-R
1.65V~5.5V 1.9ns@5V,50pF 10uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC2G04G-AL6-R
- Store part #
- C48384811
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C48384811
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.31 | ₹103.10 |
| 100+ | ₹8.22 | ₹822.00 |
| 300+ | ₹7.17 | ₹2,151.00 |
| 3,000+ | ₹6.39 | ₹19,170.00 |
| 6,000+ | ₹5.76 | ₹34,560.00 |
| 9,000+ | ₹5.44 | ₹48,960.00 |
10 × ₹10.31
₹103.10
excl. GST
₹121.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC2G04G-AL6-R
₹103.10 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 700mV;800mV
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.137 g
Overview
The U74LVC2G04 is a dual inverter gate that provides the Boolean function Y = A in positive logic. The device features a power-off protection circuit to prevent damage during power-down conditions.
Key features
- Operating voltage range: 1.65V ~ 5.5V
- Input voltage up to 5.5V
- High noise immunity
- Low power consumption
- Maximum propagation delay of 3.2 ns at 5V
- Package types: SOT-26, SOT-363
