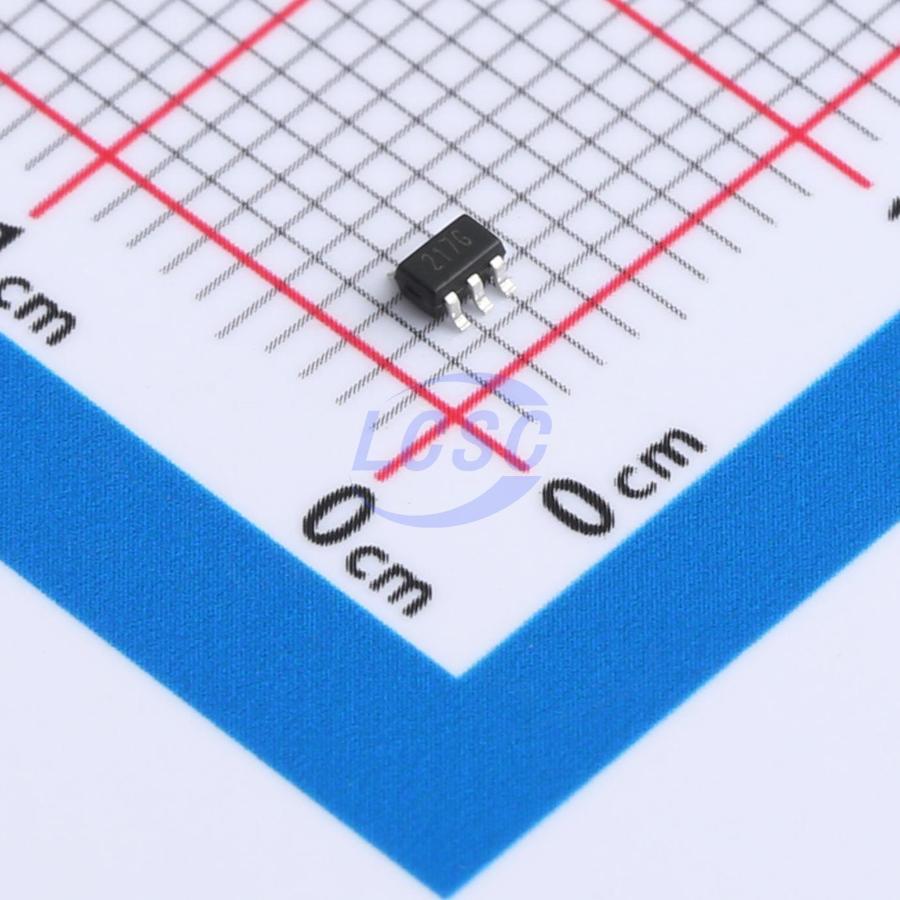

U74LVC2G17G
Schmitt trigger 1.65V~5.5V 5.4ns@3.3V,50pF 10uA SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
CMOS DUAL SCHMITT-TRIGGER BUFFER
- Manufacturer
- UTC
- Manufacturer part #
- U74LVC2G17G
- Store part #
- C7494902
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C7494902
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.54 | ₹72.70 |
| 50+ | ₹11.40 | ₹570.00 |
| 150+ | ₹9.84 | ₹1,476.00 |
| 500+ | ₹8.67 | ₹4,335.00 |
| 3,000+ | ₹7.73 | ₹23,190.00 |
| 6,000+ | ₹7.26 | ₹43,560.00 |
5 × ₹14.54
₹72.70
excl. GST
₹85.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U74LVC2G17G
₹72.70 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 5.4ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Input Logic Level - Low
- 300mV~700mV;400mV~1V;600mV~1.3V;1.1V~2V;1.4V~2.5V
- Input Logic Level - High
- 700mV~1.4V;1V~1.7V;1.3V~2.2V;1.9V~3.1V;2.2V~3.7V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2;-
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
The UTC U74LVC2G17 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Key features
- Operate From 1.65V to 5.5V
- 5V tolerant input/output for interfacing with 5V logic
- ±24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- IOFF Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
