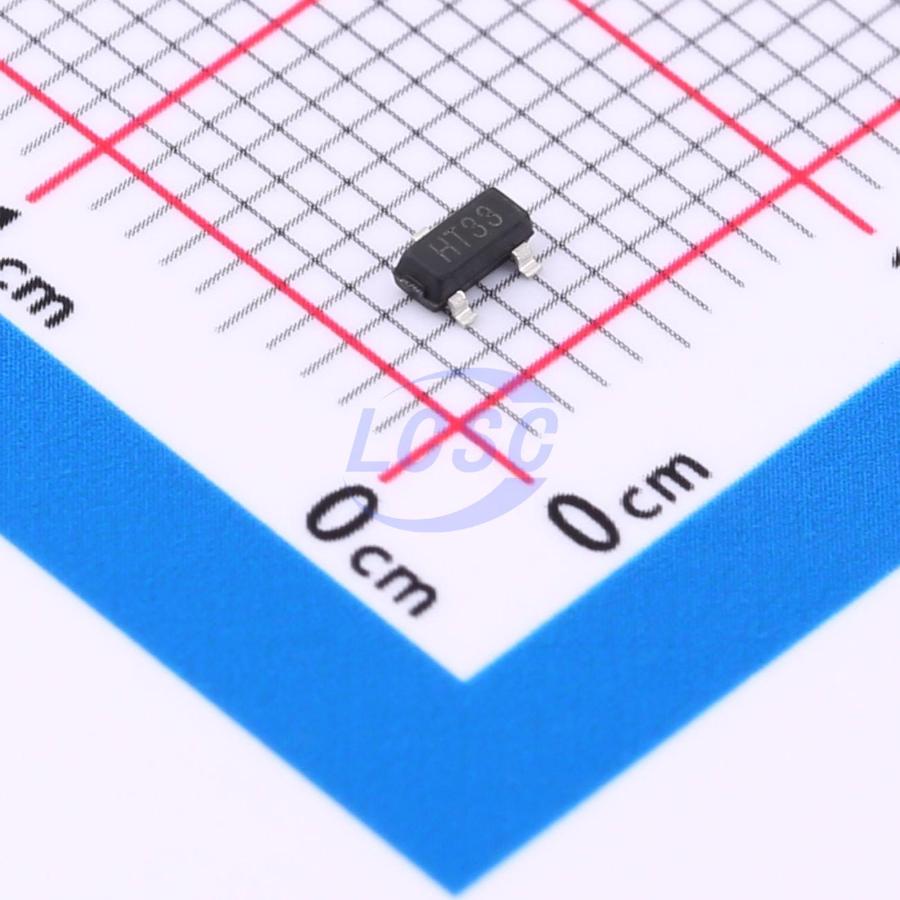

U7533
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U7533
- Store part #
- C41374766
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,545 in stock
#C41374766
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.29 | ₹61.45 |
| 50+ | ₹9.72 | ₹486.00 |
| 150+ | ₹8.43 | ₹1,264.50 |
| 500+ | ₹7.46 | ₹3,730.00 |
| 3,000+ | ₹6.69 | ₹20,070.00 |
| 6,000+ | ₹6.31 | ₹37,860.00 |
5 × ₹12.29
₹61.45
excl. GST
₹72.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U7533
₹61.45 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
U75XX is a low-dropout linear regulator fabricated in CMOS technology. With a maximum input voltage rating of 24V, it offers several fixed output voltage options ranging from 3V to 5V, featuring low quiescent current consumption. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
