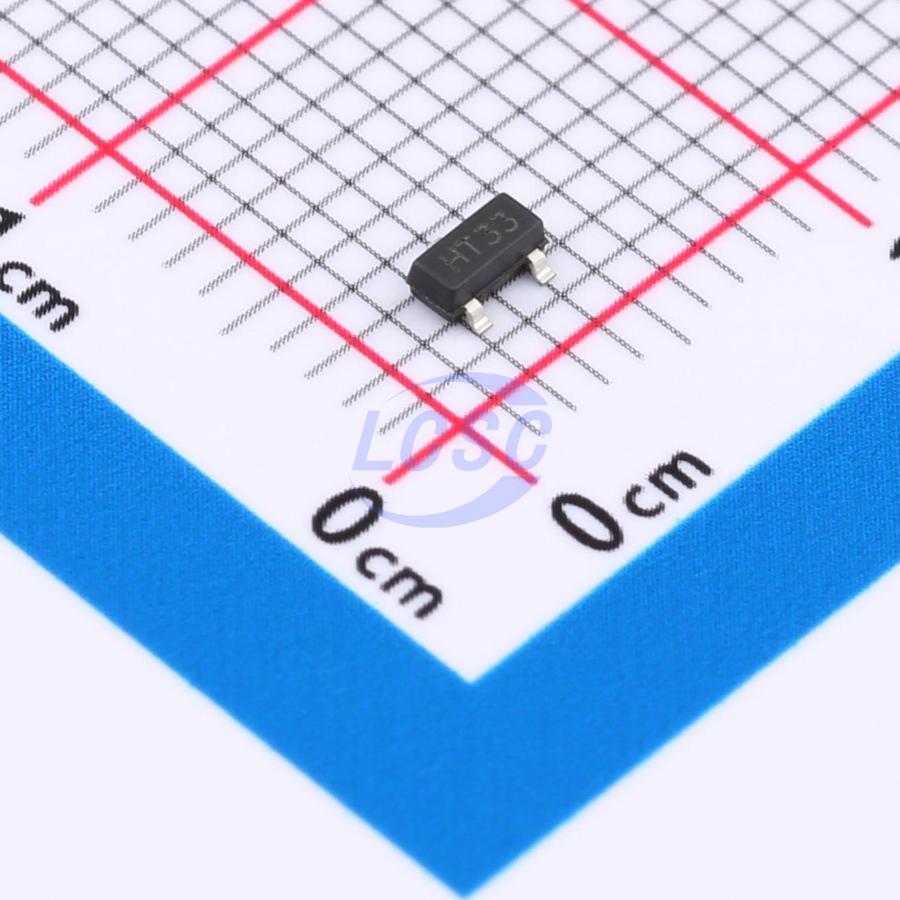

U7533H
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23-3
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U7533H
- Store part #
- C41374768
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C41374768
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.75 | ₹73.75 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.12 | ₹1,518.00 |
| 500+ | ₹8.96 | ₹4,480.00 |
| 3,000+ | ₹8.03 | ₹24,090.00 |
| 6,000+ | ₹7.57 | ₹45,420.00 |
5 × ₹14.75
₹73.75
excl. GST
₹87.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
U7533H
₹73.75 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
The U75XXH is a low dropout linear regulator. The error amplifier compares the feedback voltage Vfb — derived from the voltage divider formed by feedback resistors Rs and Rf — against the reference voltage (Vref). Based on this comparison, the error amplifier supplies the necessary gate voltage to the output transistor, maintaining a stable output voltage regardless of variations in input voltage or temperature.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- CMOS technology
- Maximum voltage rating up to 40V
- Multiple fixed output voltage options, output range 3.3V ~ 5.0V
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- Maximum operating voltage up to 40V
- Quiescent current: 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
- Low quiescent power dissipation
