TIDatasheet (PDF)

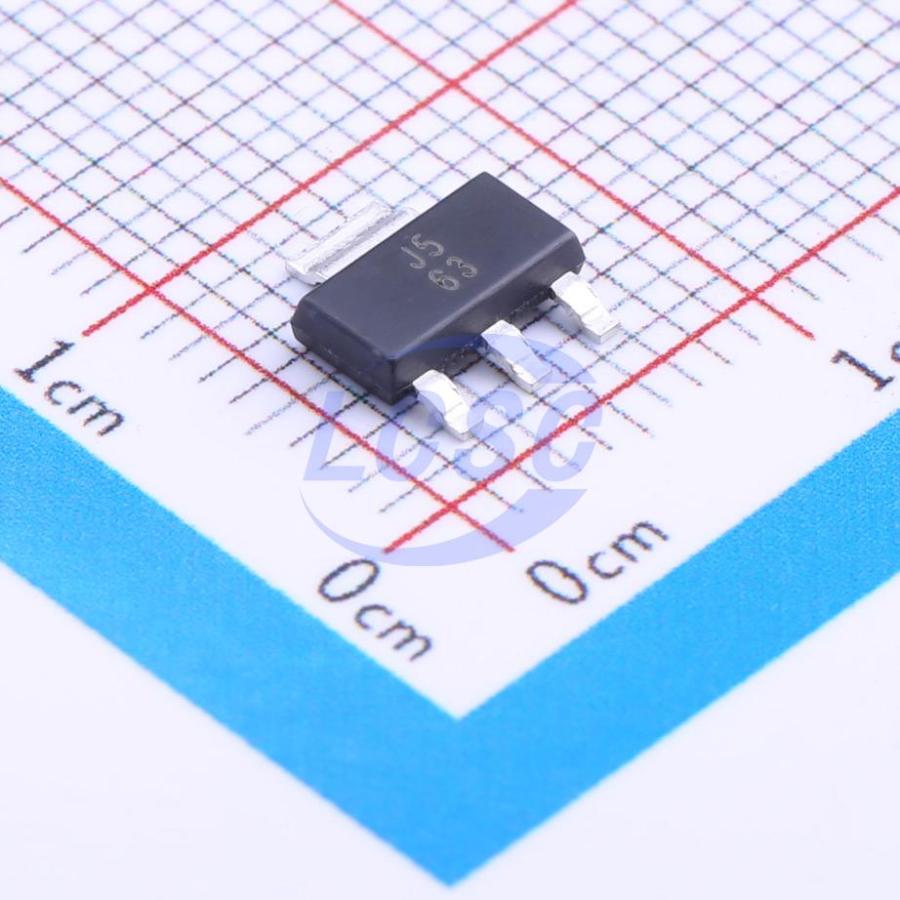

UA78M05IDCYR
5V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS3 CompliantActive
500mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA78M05IDCYR
- Store part #
- C182422
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,957 in stock
#C182422
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.18 | ₹79.18 |
| 10+ | ₹61.77 | ₹617.70 |
| 30+ | ₹54.38 | ₹1,631.40 |
| 100+ | ₹45.03 | ₹4,503.00 |
| 500+ | ₹40.89 | ₹20,445.00 |
| 1,000+ | ₹38.50 | ₹38,500.00 |
1 × ₹79.18
₹79.18
excl. GST
₹93.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M05IDCYR
₹79.18 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.5mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.288 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UA78M05IDCY#C2877974TI · SOT-223-4 | TI | SOT-223-4 | 13 | ₹109.99 · 13 in stock | View |
 | UA78M05QDCYRG4Q1#C485570TI · SOT-223-4 | TI | SOT-223-4 | 147 | ₹135.95 · 147 in stock | View |
 | UA78M05CDCYR#C201654TI · SOT-223 | TI | SOT-223 | 6,585 | ₹44.11 · 6,585 in stock | View |
 | UA78M05CDCY#C2865782TI · SOT-223-4 | TI | SOT-223-4 | 60 | ₹64.09 · 60 in stock | View |
 | LM78M05DCYRG#C22468100HANSCHIP semiconductor · SOT-223 | HANSCHIP semiconductor | SOT-223 | 205 | ₹16.83 · 205 in stock | View |
