TIDatasheet (PDF)

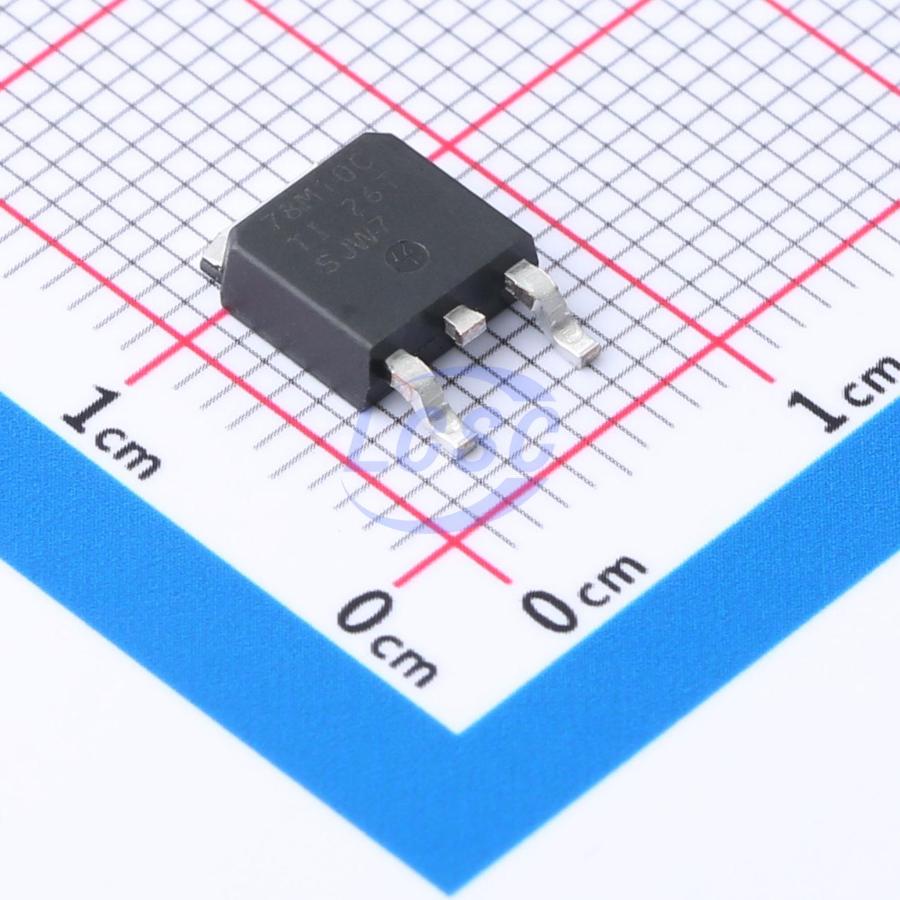

UA78M10CKVURG3
10V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
Positive-Voltage Regulators
- Manufacturer
- TI
- Manufacturer part #
- UA78M10CKVURG3
- Store part #
- C2868719
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,188 in stock
#C2868719
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.33 | ₹58.33 |
| 10+ | ₹45.75 | ₹457.50 |
| 30+ | ₹39.69 | ₹1,190.70 |
| 100+ | ₹34.27 | ₹3,427.00 |
| 500+ | ₹32.74 | ₹16,370.00 |
| 1,000+ | ₹31.88 | ₹31,880.00 |
1 × ₹58.33
₹58.33
excl. GST
₹68.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M10CKVURG3
₹58.33 for 1 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.7mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 28V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.71 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KIA7810AF-RTF/PQ#C22647466KEC · TO-252-2(DPAK) | KEC | TO-252-2(DPAK) | 1,125 | ₹24.45 · 1,125 in stock | View |
 | LM78M10CDT/TR#C54301703HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 1,190 | ₹17.33 · 1,190 in stock | View |
 | L78M10ABDT-TR#C100002ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 6,755 | ₹45.09 · 6,755 in stock | View |
 | BA178M10FP-E2#C3747856ROHM · TO-252 | ROHM | TO-252 | 5 | ₹107.55 · 5 in stock | View |
 | LM78M10ADT/TR#C54140483HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | On request | ₹18.83 · 0 in stock | View |
