TIDatasheet (PDF)

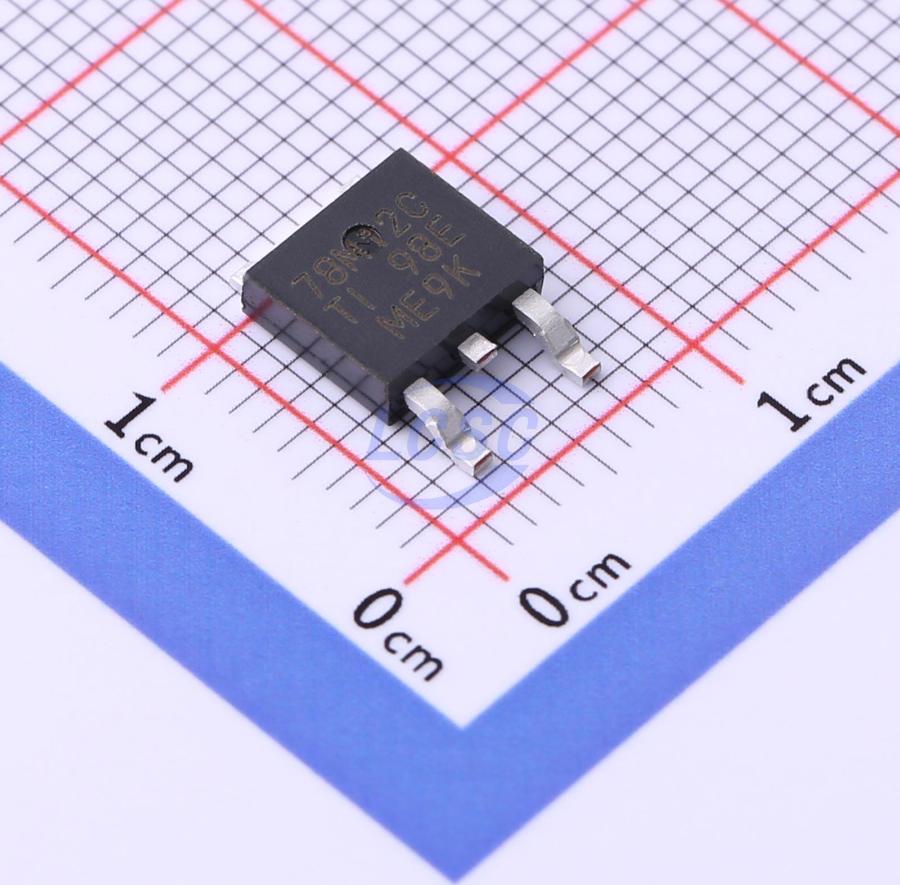

UA78M12CKVURG3
12V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
500mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA78M12CKVURG3
- Store part #
- C2866050
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2866050
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.19 | ₹132.19 |
| 10+ | ₹117.15 | ₹1,171.50 |
| 30+ | ₹102.96 | ₹3,088.80 |
| 100+ | ₹92.42 | ₹9,242.00 |
| 500+ | ₹88.13 | ₹44,065.00 |
| 1,000+ | ₹85.98 | ₹85,980.00 |
1 × ₹132.19
₹132.19
excl. GST
₹155.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M12CKVURG3
₹132.19 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.86 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78M12CDT/TR#C7432052HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 275 | ₹15.37 · 275 in stock | View |
 | 78D12#C7429765BLUE ROCKET · TO-252 | BLUE ROCKET | TO-252 | 40 | ₹30.15 · 40 in stock | View |
 | L78M12CDT-TR#C16424ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 46,600 | ₹37.02 · 46,600 in stock | View |
 | L78M12ABDT-TR#C61534ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 18,255 | ₹47.13 · 18,255 in stock | View |
 | 78M12#C499638KEXIN · TO-252-2 | KEXIN | TO-252-2 | 655 | ₹18.92 · 655 in stock | View |
