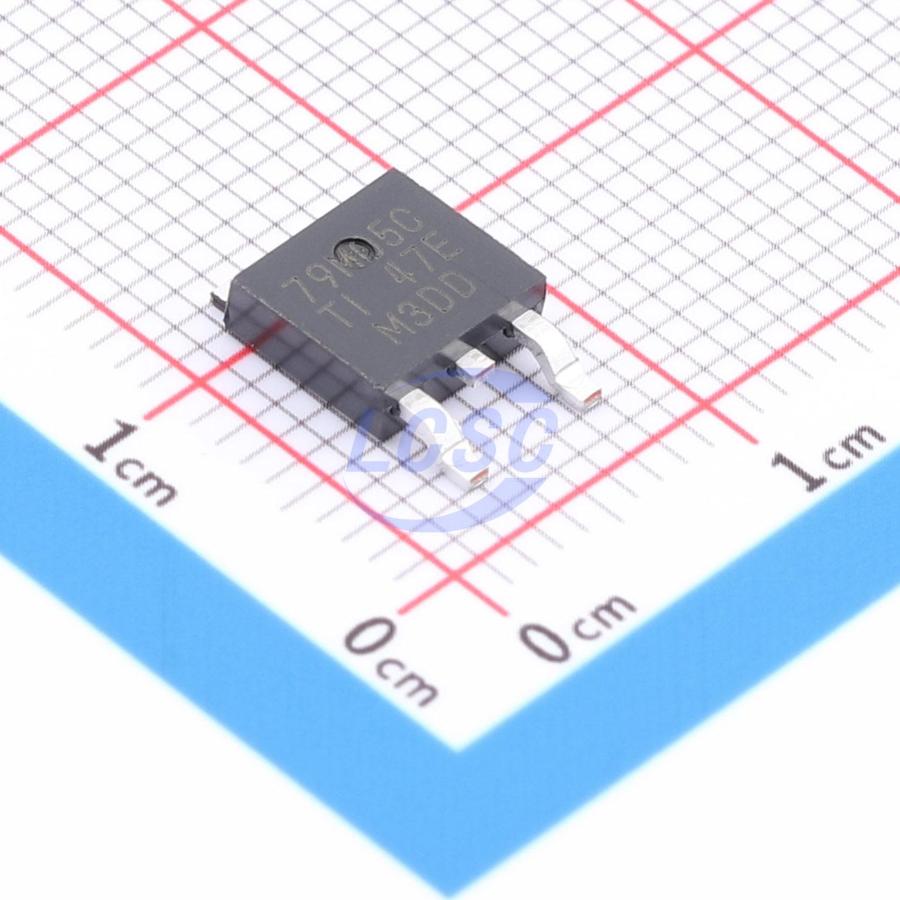

UA79M05CKVURG3
5V Negative Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
500mA Negative Voltage Linear Regulator
- Manufacturer
- TI
- Manufacturer part #
- UA79M05CKVURG3
- Store part #
- C2860667
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,636 in stock
#C2860667
Stock & price checked 12 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹157.04 | ₹157.04 |
| 10+ | ₹130.58 | ₹1,305.80 |
| 30+ | ₹117.35 | ₹3,520.50 |
| 100+ | ₹104.33 | ₹10,433.00 |
| 500+ | ₹96.53 | ₹48,265.00 |
| 1,000+ | ₹92.62 | ₹92,620.00 |
1 × ₹157.04
₹157.04
excl. GST
₹185.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA79M05CKVURG3
₹157.04 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Negative
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.32 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7905#C78860JSCJ · TO-252-2L | JSCJ | TO-252-2L | 8,065 | ₹40.13 · 8,065 in stock | View |
 | HT7905ARMZ#C5336217HTCSEMI · TO-252 | HTCSEMI | TO-252 | 935 | ₹37.08 · 935 in stock | View |
 | 7905#C19273129YFW · TO-252 | YFW | TO-252 | 2,425 | ₹37.80 · 2,425 in stock | View |
 | PJ7905TE#C36493737PJSEMI · TO-252 | PJSEMI | TO-252 | 10 | ₹41.90 · 10 in stock | View |
 | TP79M05K3#C41408044TECH PUBLIC · TO-252-2L | TECH PUBLIC | TO-252-2L | 1,527 | ₹36.32 · 1,527 in stock | View |
