XBLWDatasheet (PDF)

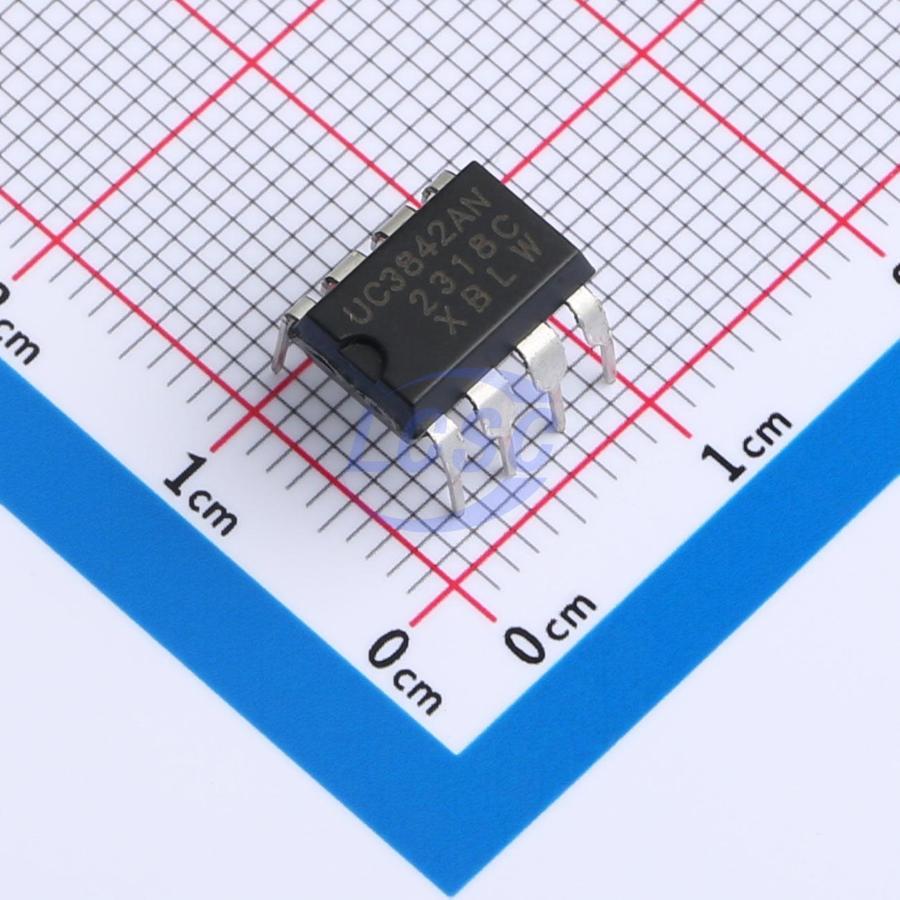

UC3842AN(XBLW)
1A 500kHz 1W 30V Flyback DIP-8 AC DC Converters, Offline Switchers RoHS
DIP-8ROHS CompliantActive
Current Mode Pulse-width Controller
- Manufacturer
- XBLW
- Manufacturer part #
- UC3842AN(XBLW)
- Store part #
- C18723589
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,825 in stock
#C18723589
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.18 | ₹65.90 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.04 | ₹1,356.00 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 2,000+ | ₹7.17 | ₹14,340.00 |
| 4,000+ | ₹6.76 | ₹27,040.00 |
5 × ₹13.18
₹65.90
excl. GST
₹77.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
UC3842AN(XBLW)
₹65.90 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Output Current
- 1A
- Frequency - Switching
- 500kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 30V
- Features
- Under-voltage lockout;Under Voltage Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 96%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.73 g
Overview
The UC3842 is a fixed frequency current mode PWM controllers. It is specifically designed for Off- Line and DC- DC converter applications. This integrated circuits feature a temperature compensated reference, high gain error amplifier, current sense comparator, and a high Push- pull output ideally suited for driving a power MOSFET. Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, allowing deadtimes to be programmed, and a latch for single pulse metering. This device is available in SOP8 package and DIP8 package.
Applications
- Switching regulators of any polarity
- Transformer- coupled DC- DC converters
Key features
- Automatic Feed Forward Compensation
- Low Startup and Operating Current < 0.5mA
- Undervoltage Lockout with Hysteresis
- Maximum Duty Ratio Control
- Operating Frequency: 500kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC3844AN(XBLW)#C18723591XBLW · DIP-8 | XBLW | DIP-8 | 1,445 | ₹22.00 · 1,445 in stock | View |
