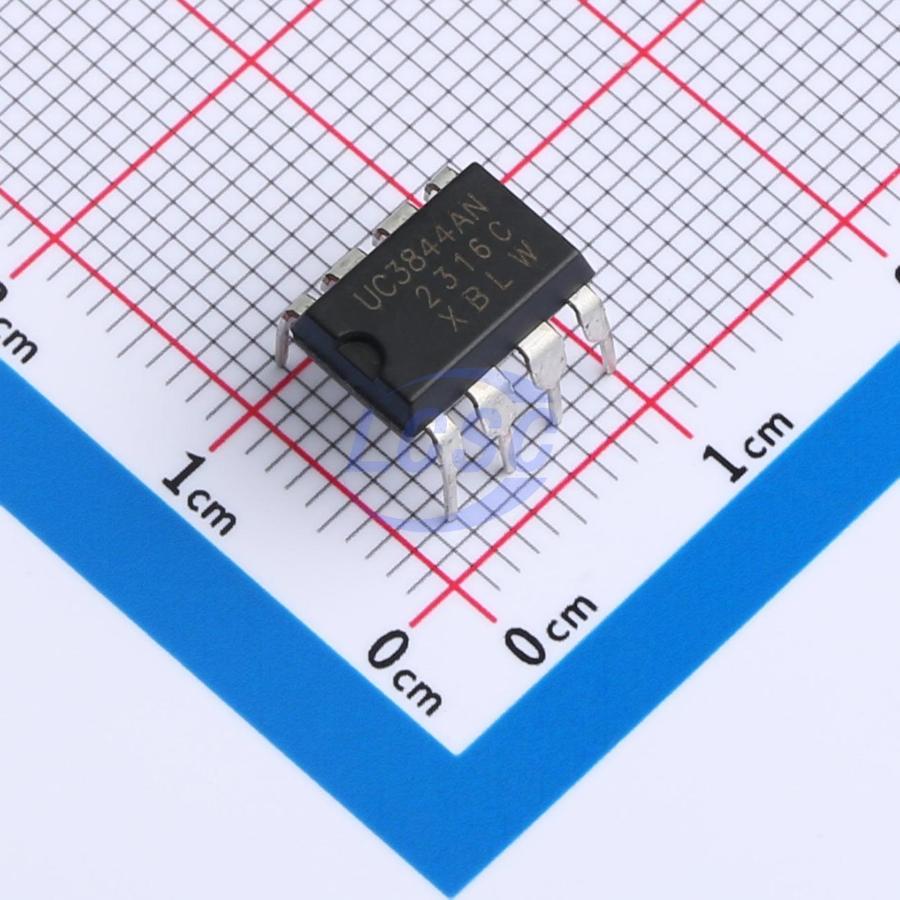

UC3844AN(XBLW)
1A 500kHz 1W 30V Flyback DIP-8 AC DC Converters, Offline Switchers RoHS
DIP-8ROHS CompliantActive
Current Mode Pulse-width Controller
- Manufacturer
- XBLW
- Manufacturer part #
- UC3844AN(XBLW)
- Store part #
- C18723591
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,445 in stock
#C18723591
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.00 | ₹110.00 |
| 50+ | ₹17.53 | ₹876.50 |
| 150+ | ₹15.61 | ₹2,341.50 |
| 500+ | ₹13.23 | ₹6,615.00 |
| 2,000+ | ₹12.17 | ₹24,340.00 |
| 4,000+ | ₹11.52 | ₹46,080.00 |
5 × ₹22.00
₹110.00
excl. GST
₹129.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
UC3844AN(XBLW)
₹110.00 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Output Current
- 1A
- Frequency - Switching
- 500kHz
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 30V
- Features
- Under-voltage lockout;Slope compensation;Under Voltage Protection
- Topology
- Flyback
- Duty Cycle(Max)
- 48%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.711 g
Overview
The UC3844 is a pulse width integrated circuit with current control mode for switching power supply. Compared with the voltage control mode, it has many advantages in load response and linear adjustment. This device is available in SOP8 package and DIP8 package.
Applications
- Switching regulators of any polarity
- Transformer-coupled DC-DC converters
Key features
- Internally Undervoltage Lockout Circuit
- Low Startup and Operating Current (0.26mA at typical)
- Maximum Duty Cycle Control
- High current push-pull output (drive current up to 1A)
- Operating Frequency: 500kHz
- Automatic Feed Forward Compensation
- Double-pulse Suppression
- Enhanced Load-response Characteristics
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC3842AN(XBLW)#C18723589XBLW · DIP-8 | XBLW | DIP-8 | 1,825 | ₹13.18 · 1,825 in stock | View |
