UC3842BD
49kHz~55kHz 1A 1W 10V~30V Boost DIP-8 AC DC Converters, Offline Switchers
DIP-8RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- UC3842BD
- Store part #
- C53055744
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,615 in stock
#C53055744
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.16 | ₹60.80 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.45 | ₹1,267.50 |
| 500+ | ₹7.53 | ₹3,765.00 |
| 2,000+ | ₹6.77 | ₹13,540.00 |
| 4,000+ | ₹6.40 | ₹25,600.00 |
5 × ₹12.16
₹60.80
excl. GST
₹71.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube

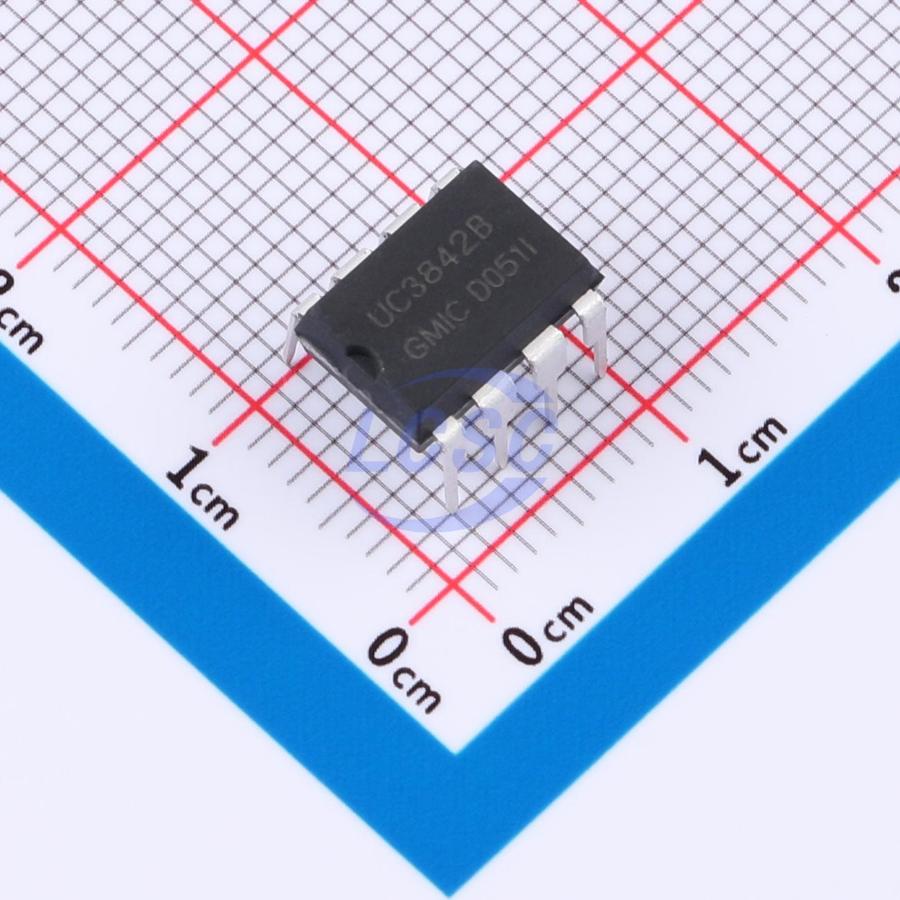

UC3842BD
₹60.80 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 49kHz~55kHz
- Output Current
- 1A
- Pd - Power Dissipation
- 1W
- Voltage - Supply
- 10V~30V
- Topology
- Boost
- Features
- Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 97%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.896 g
Overview
The 3842 is a high-performance fixed-frequency current-mode controller designed for off-line and DC-DC converter applications, offering designers a solution with minimal component count and low cost. This IC integrates an oscillator trimmed for precise duty cycle control, a temperature-compensated reference voltage, a high-gain error amplifier, a current-sensing comparator, and a high-current totem-pole output stage suitable for driving power MOSFETs. It also incorporates multiple protection features, including input undervoltage lockout (UVLO), cycle-by-cycle current limiting, programmable output dead time, and a latch for single-pulse metering.
Applications
- Inverter power supplies
- High-power high-frequency switching power supplies
- DC pulse-width modulation speed control systems
- UPS power supplies
- DC/DC converters
- High-power chargers
Key features
- Undervoltage lockout circuit
- Low startup current (<0.3mA)
- Stable internal bandgap voltage reference
- High-current totem-pole output (drive current up to 1A)
- Operating frequency up to 500kHz
- Automatic feed-forward compensation
- Pulse-by-pulse current limiting
- Enhanced load transient response
