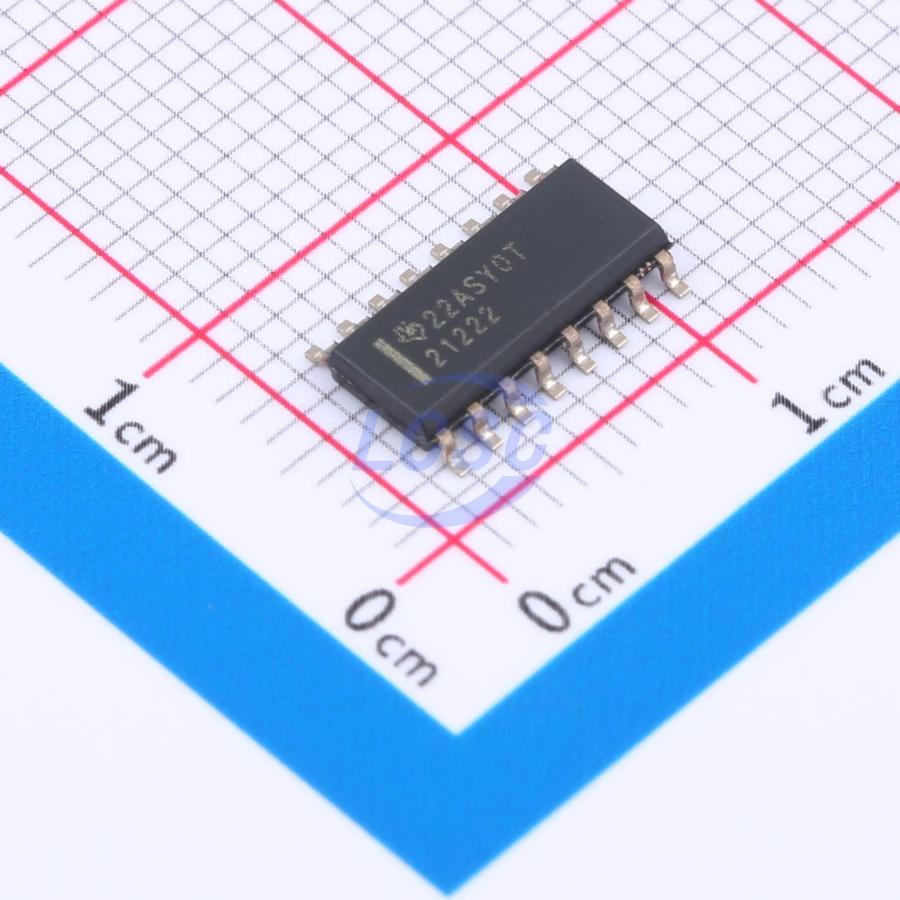

UCC21222DR

2 6A 4A SOIC-16 Gate Drivers RoHS

SOIC-16ROHS3 CompliantActive

Isolated dual-channel gate driver (with dead time)

Manufacturer: TI
Manufacturer part #: UCC21222DR
Store part #: C2878024
Package / case: SOIC-16
Category: Gate Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,800 in stock

#C2878024

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
1+	₹300.51	₹300.51
10+	₹256.07	₹2,560.70
30+	₹228.31	₹6,849.30
100+	₹199.91	₹19,991.00
500+	₹186.90	₹93,450.00
1,000+	₹181.48	₹1,81,480.00

Quantity (min 1)

1 × ₹300.51

₹300.51

excl. GST

₹354.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

UCC21222DR

₹300.51 for 1 + GST

Specifications

Input Logic Level - Low: 0.8V~1.25V
Low Level Delay Time: 40ns
High Level Delay Time: 40ns
number of channels: 2
Quiescent Current: 2mA
Input Logic Level - High: 1.6V~2V
Driven Configuration: Low Side;High Side;Half-Bridge
Operating Temperature: -40℃~+130℃@(Tj)
Current - Output Low(IOL): 6A
Fall Time: 12ns
Features: Dead-time control
Current - Output High(IOH): 4A
Load Type: IGBT;MOSFET
Voltage - Supply (Driver): 9.2V~18V
Voltage - Supply (Input): 3V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.245 g

Overview

The UCC21222 device is an isolated dual-channel gate driver with programmable dead time. This device uses a 4A peak source current and a 6A peak sink current to drive power MOSFETs, IGBTs, and GaN transistors. The UCC21222 device can be configured as two low-side drivers, two high-side drivers, or one half-bridge driver. The 5ns delay matching performance of this device allows two outputs to be paralleled, doubling the drive strength under heavy load conditions without the risk of internal breakdown. The input side is isolated from the two output drivers by a 3.0kV RMS isolation barrier, and the minimum common-mode transient immunity (CMTI) is 100V/ns. The dead time, which can be programmed via a resistor, allows you to adjust the system-limited dead time, thereby improving efficiency and preventing output overlap. Other protection features include: simultaneously turning off both outputs through the disable function when DIS is set high; an integrated anti-spike filter to suppress input transients shorter than 5ns; and 200ns negative voltage handling of spikes up to -2V on the input and output pins. All power supplies have UVLO protection.

Applications

Isolated converters in AC/DC and DC/DC power supplies
Server, telecom, IT, and industrial infrastructure
Motor drives and photovoltaic inverters
HEV and EV battery chargers
Industrial transportation
UPS

Key features

Resistor-programmable dead time
Versatile: dual low-side, dual high-side, or half-bridge driver
4A peak source, 6A peak sink output current
3V to 5.5V VCCI input range, up to 18V VDD output drive supply, 8V VDD UVLO
Switching parameters: 28ns typical propagation delay, 10ns minimum pulse width, 5ns maximum delay matching, 5.5ns maximum pulse width distortion, TTL and CMOS compatible inputs
Integrated spike filter
I/O withstands -2V for 200ns
CMTI greater than 100V/ns
Isolation barrier lifetime greater than 40 years
Surge immunity up to 7800V PK
Narrow-body SOIC-16 (D) package
Safety-related certifications (planned): 4242V PK isolation per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1, 3000V RMS isolation for 1 minute per UL 1577, CSA certified, compliant with IEC 60950-1, IEC 62368-1, and IEC 61010-1 end-equipment standards, CQC certified per GB4943.1-2011
Design custom solutions using UCC21222 with WEBENCH Power Designer
