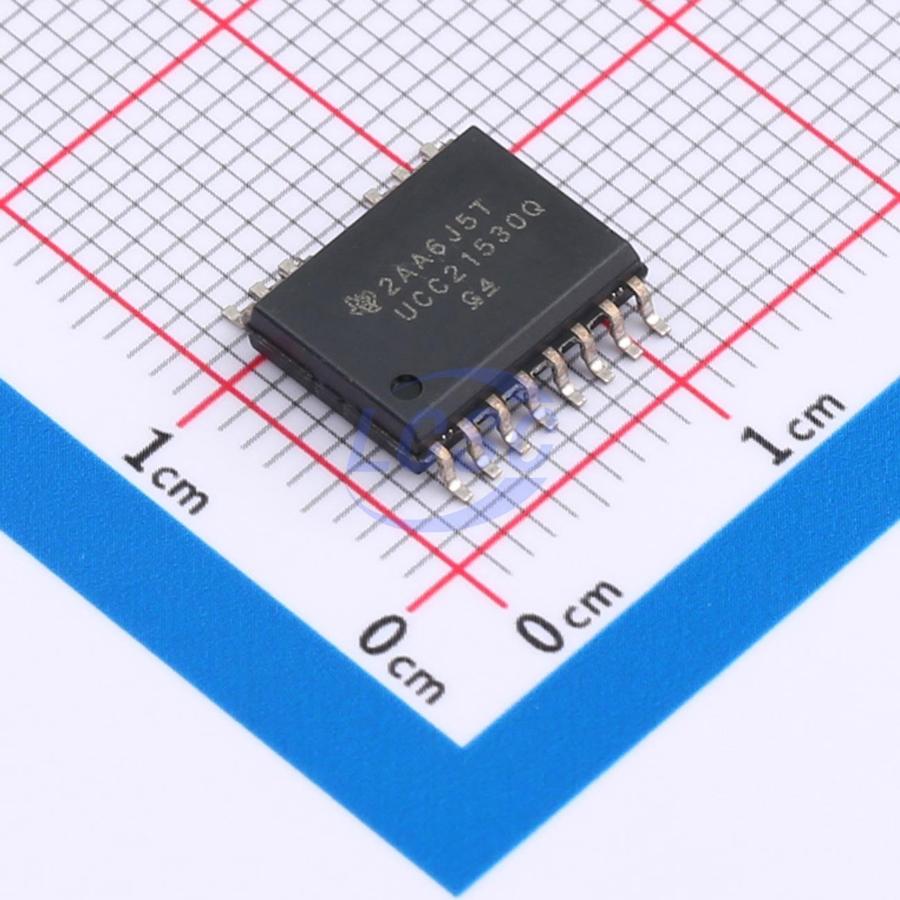

UCC21530QDWKRQ1

The UCC21530-Q1 is an isolated dual-channel gate driver with 4A peak source current and 6A peak sink current. The driver is designed to drive IGBTs, Si MOSFETs, and SiC MOSFETs at up to 5MHz, with excellent propagation delay and pulse width distortion performance. The input side is isolated from both output drivers by a 5.7kV_RMS reinforced isolation barrier, with a common-mode transient immunity (CMTI) of at least 100V/ns. The internal functional isolation between the two secondary-side drivers supports operating voltages up to 1850V. The driver can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver with programmable dead time (DT). Pulling the EN pin low simultaneously disables both outputs, while leaving it floating or pulling it high restores normal device operation. As a failsafe mechanism, a primary-side logic fault forces both outputs low. This device accepts VDD supply voltages up to 25V. The wide input voltage VCCI range of 3V to 18V makes the driver suitable for interfacing with both digital and analog controllers. All supply voltage pins feature undervoltage lockout (UVLO) protection.

Applications

• HEV and BEV battery chargers
• Solar string and central inverters
• AC/DC and DC/DC charging stations
• AC inverters and servo drives
• AC/DC and DC/DC power delivery
• Energy storage systems

Key features

• AEC-Q100 qualified with the following results: Device Temperature Grade 1, Device HBM ESD Classification Level H2, Device CDM ESD Classification Level C6
• Functional Safety-Capable
• Versatile: dual low-side, dual high-side, or half-bridge driver
• Wide-body SOIC-14 (DWK) package
• 3.3mm spacing between driver channels
• 19ns typical propagation delay
• 10ns minimum pulse width
• 5ns maximum delay matching
• 6ns maximum pulse width distortion
• Common-mode transient immunity (CMTI) >100V/ns
• Isolation barrier lifetime >40 years
• 4A peak source, 6A peak sink output current
• TTL and CMOS compatible inputs
• 3V to 18V input VCCI range
• Up to 25V VDD output drive supply
• 8V and 12V VDD UVLO options
• Programmable overlap and dead time
• Rejects input pulses and noise transients shorter than 5ns
• Operating temperature range: -40°C to +125°C
• Safety-related certifications: 8000V_PK isolation per DIN V VDE V 0884-11:2017-01; 5.7kVRMS isolation for 1 minute per UL 1577; CSA certification per IEC 60950-1, IEC 62368-1, IEC 61010-1, and IEC 60601-1 end-equipment standards; CQC certification per GB4943.1-2011
