UMWDatasheet (PDF)

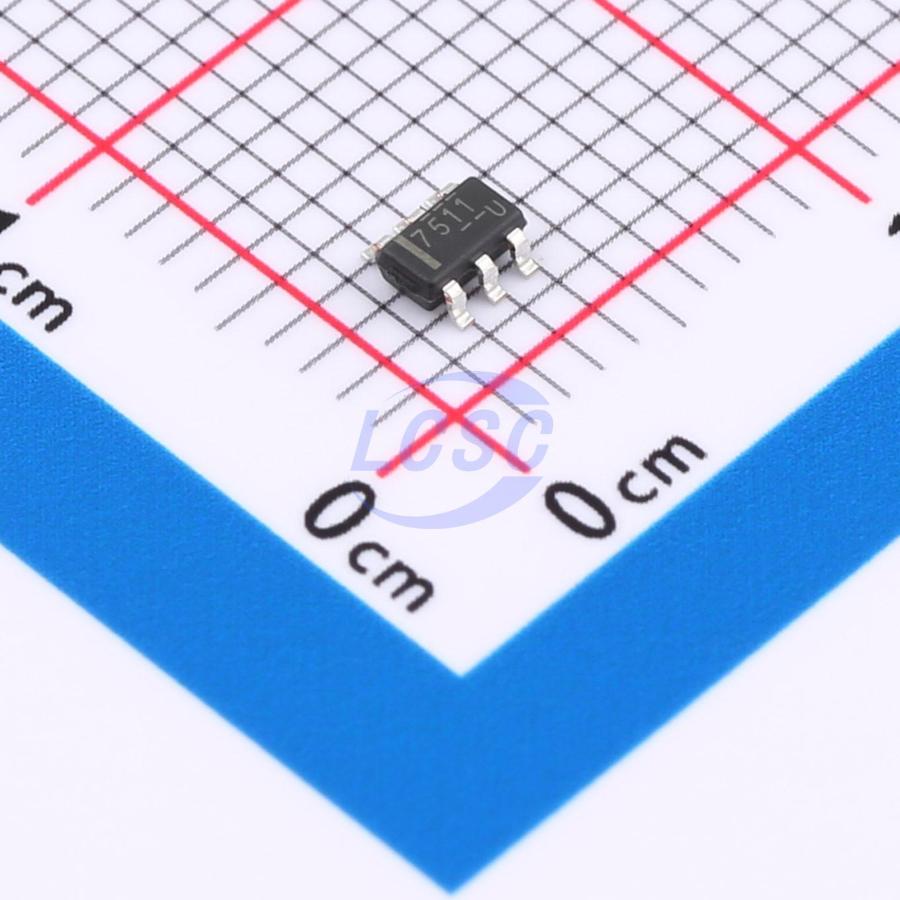

UCC27511DBVR(UMW)
4.5V~25V 4A 4A SOT-23-6 Gate Drivers RoHS
SOT-23-6ROHS3 CompliantActive
Single-Channel 4A Peak High-speed Low side Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- UCC27511DBVR(UMW)
- Store part #
- C20623190
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C20623190
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.96 | ₹179.80 |
| 50+ | ₹28.01 | ₹1,400.50 |
| 150+ | ₹24.59 | ₹3,688.50 |
| 500+ | ₹20.33 | ₹10,165.00 |
| 3,000+ | ₹18.44 | ₹55,320.00 |
| 6,000+ | ₹17.30 | ₹1,03,800.00 |
5 × ₹35.96
₹179.80
excl. GST
₹212.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27511DBVR(UMW)
₹179.80 for 5 + GST
Specifications
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 300uA
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
UMW UCC27511DBVR is a single-channel, high-speed, low-side gate driver capable of effectively driving MOSFET and IGBT power switches. The device delivers high peak current pulses to capacitive loads, featuring rail-to-rail drive capability and minimal propagation delay.
Applications
- Switching mode power supplies
- DC-DC converters
- Digital power controllers
- Solar power generation
- Motor control
- UPS
- GaN gate drive
Key features
- Dual-input design (selectable inverting (IN- pin) or non-inverting (IN+ pin) driver configuration) — unused input pins available for enable/disable function.
- TTL and CMOS compatible input logic thresholds.
- 4.5V to 25V single-supply operating range.
- Operating temperature range: -40℃ to 125℃.
- Input voltage range: -10V to 25V.
- Undervoltage lockout (UVLO).
- UVLO turn-on threshold: 4.3V.
- UVLO turn-off threshold: 4.1V.
- Turn-on/turn-off delay: Ton/Toff = 30ns/30ns.
- 4A peak source and sink current drive capability.
