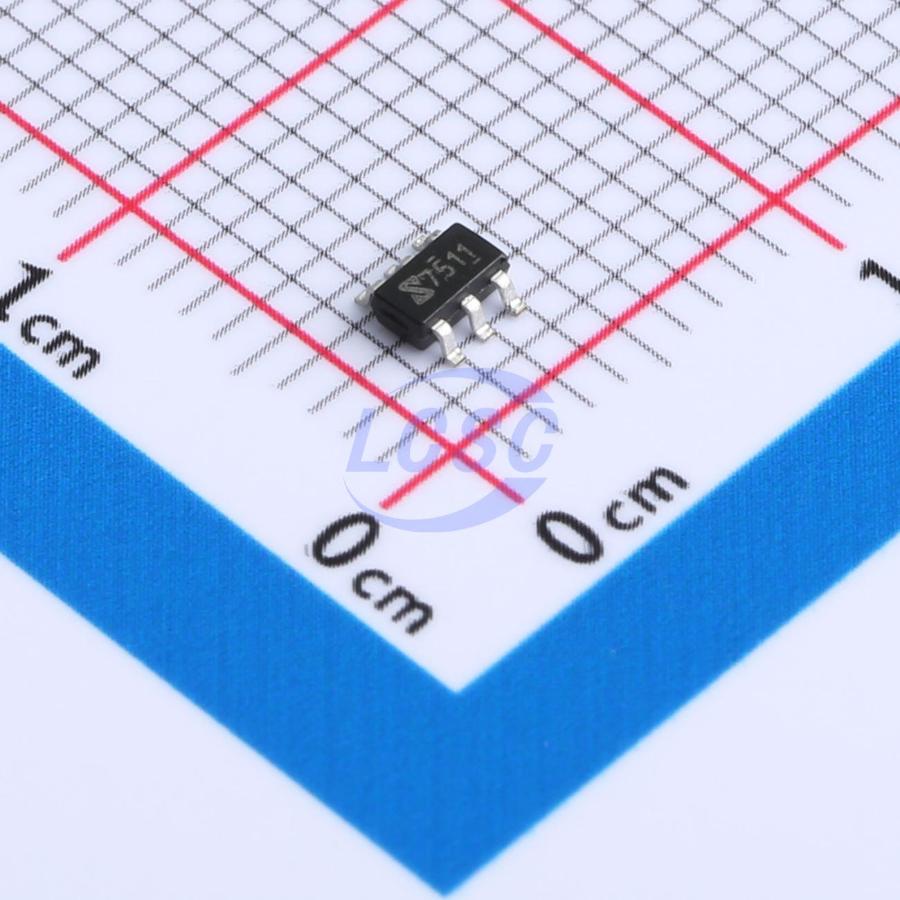

UCC27511DBVT-JSM
Low Side Gate Driver IC MOSFET IGBT SOT-23-6
SOT-23-6ROHS CompliantActive
Single-channel 4A ultra-high-speed power switch driver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- UCC27511DBVT-JSM
- Store part #
- C7466359
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,640 in stock
#C7466359
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.14 | ₹88.14 |
| 10+ | ₹72.02 | ₹720.20 |
| 30+ | ₹63.85 | ₹1,915.50 |
| 100+ | ₹55.69 | ₹5,569.00 |
| 500+ | ₹50.95 | ₹25,475.00 |
| 1,000+ | ₹48.37 | ₹48,370.00 |
1 × ₹88.14
₹88.14
excl. GST
₹104.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27511DBVT-JSM
₹88.14 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The UCC27511 single-channel high-speed low-side gate driver effectively drives MOSFET and IGBT power switches. The UCC27511 employs a design that minimizes shoot-through current, delivering high peak source/sink current pulses for capacitive loads while providing rail-to-rail drive capability and ultrashort propagation delays.
Applications
- Switching power supply DC-DC converters
- Companion gate driver for digital power controllers
- Solar energy
- Motor control
- Uninterruptible Power Supply (UPS)
- GaN gate drivers
Key features
- Dual-input design (selectable inverting (IN− pin) or non-inverting (IN+ pin) driver configuration)
- Unused input pin available for enable/disable function
- TTL and CMOS logic input compatible
- Operating range: 4.5V~25V
- Wide temperature range: -40°C~125°C
- Wide input range: -10V~25V
- UVLO
- UVLO rising threshold 4.3V
- UVLO falling threshold 4.1V
- Turn-on/turn-off propagation delay
- Ton/Toff = 30ns/30ns
- Drive current capability
- Source/Sink = 4A/4A
- SOT23-6 package
