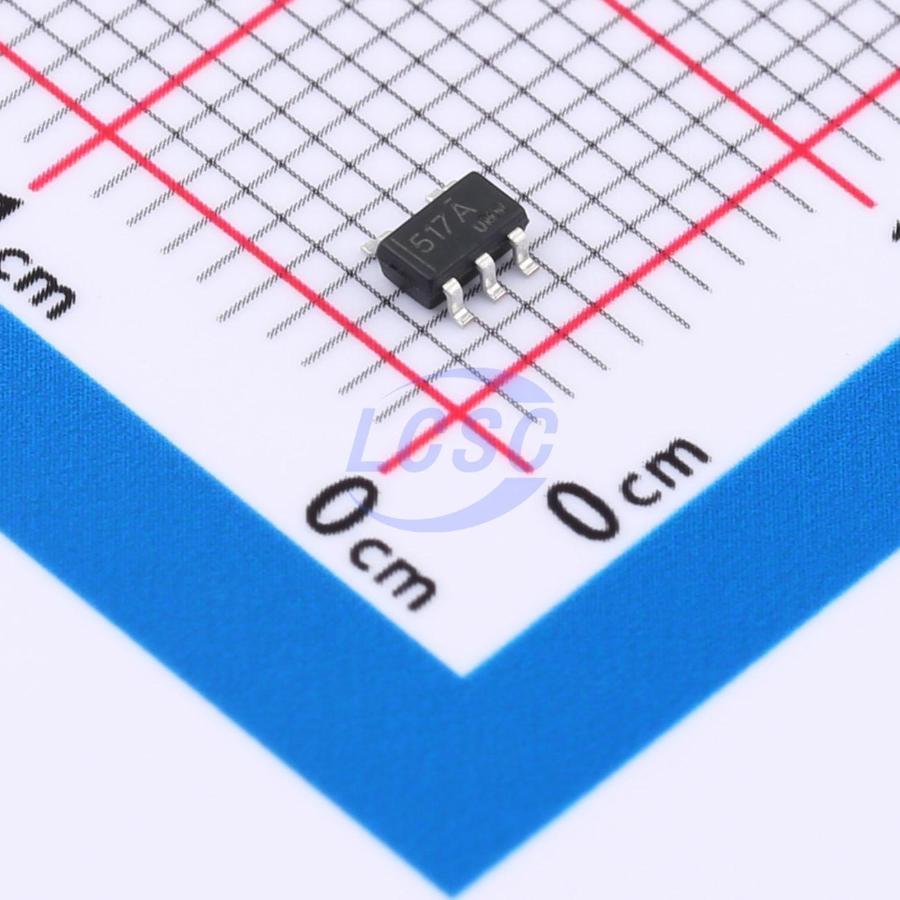

UCC27517ADBVR(UMW)
5V~25V 4A 4A SOT-23-5 Gate Drivers RoHS
4A Single-Channel, Low-Side, Non-lnverting Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- UCC27517ADBVR(UMW)
- Store part #
- C20623192
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,920 in stock
#C20623192
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.75 | ₹103.75 |
| 50+ | ₹16.18 | ₹809.00 |
| 150+ | ₹14.22 | ₹2,133.00 |
| 500+ | ₹11.78 | ₹5,890.00 |
| 3,000+ | ₹10.58 | ₹31,740.00 |
| 6,000+ | ₹9.92 | ₹59,520.00 |
5 × ₹20.75
₹103.75
excl. GST
₹122.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27517ADBVR(UMW)
₹103.75 for 5 + GST
Specifications
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 180uA
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
This device is a low-voltage power MOSFET and IGBT gate driver. Its proprietary latch-up resistant CMOS technology enables a single-chip integrated architecture with high robustness. Logic input levels are compatible with CMOS or TTL logic output levels as low as 3.3V. The output driver features an internal undervoltage lockout circuit with hysteresis and an output current buffer stage. The device is designed to operate over a wide VCC range of 5V to 25V and a wide temperature range of -40℃ to 125℃.
Applications
- Switch-mode power supplies
- General-purpose gate driver
- Drives MOSFETs and IGBTs
Key features
- Dual-input design (selectable inverting or non-inverting driver configuration) – unused input pin available for enable/disable function
- TTL and CMOS compatible input logic thresholds
- 5V to 25V single-supply range
- -40℃ to 125℃ operating temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UCC27517DBVR(UMW)#C20623191UMW · SOT-23-5 | UMW | SOT-23-5 | 39,440 | ₹20.64 · 39,440 in stock | View |
 | UCC27519DBVR(UMW)#C20623193UMW · SOT-23-5 | UMW | SOT-23-5 | 1,680 | ₹29.59 · 1,680 in stock | View |
