JSMSEMIDatasheet (PDF)

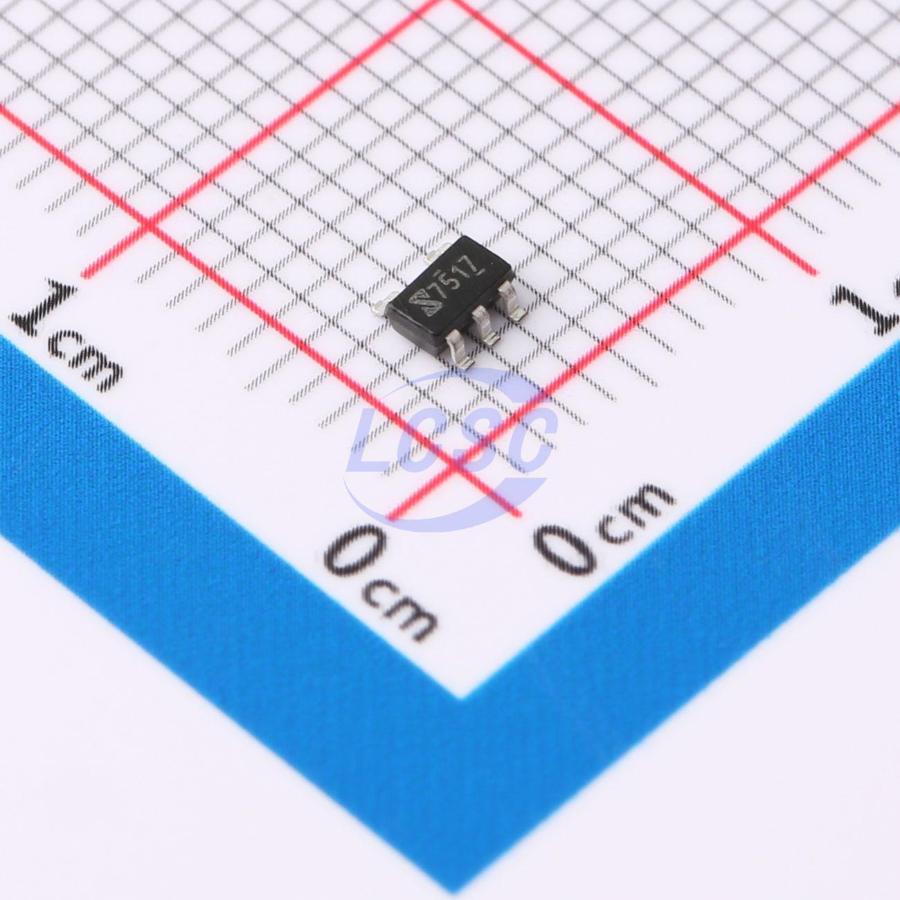

UCC27517DBVR-JSM
Gate Driver IC MOSFET IGBT SOT-23-5
SOT-23-5ROHS CompliantActive
4A single-channel low-side non-inverting gate driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- UCC27517DBVR-JSM
- Store part #
- C7432821
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,670 in stock
#C7432821
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.11 | ₹140.55 |
| 50+ | ₹22.08 | ₹1,104.00 |
| 150+ | ₹19.50 | ₹2,925.00 |
| 500+ | ₹16.29 | ₹8,145.00 |
| 3,000+ | ₹14.86 | ₹44,580.00 |
| 6,000+ | ₹13.98 | ₹83,880.00 |
5 × ₹28.11
₹140.55
excl. GST
₹165.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27517DBVR-JSM
₹140.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 25V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
A low-voltage power MOSFET and IGBT in-phase gate driver. Proprietary latch-up immune CMOS technology enables a highly robust single-chip integrated architecture. Logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operational over a -40°C to 125°C temperature range.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- Drives MOSFETs and IGBTs
Key features
- Dual-input design (inverting IN- pin or non-inverting IN+ pin selectable) driver configuration; unused input pin available for enable/disable function
- 3.3 V input logic compatible
- Operating range: 5V~25V
- Wide temperature range: -40 °C~125 °C
- UVLO: UVLO positive threshold 4.0V, UVLO negative threshold 3.9V
- Turn-on/turn-off propagation delay: Ton/Toff = 30ns/30ns
