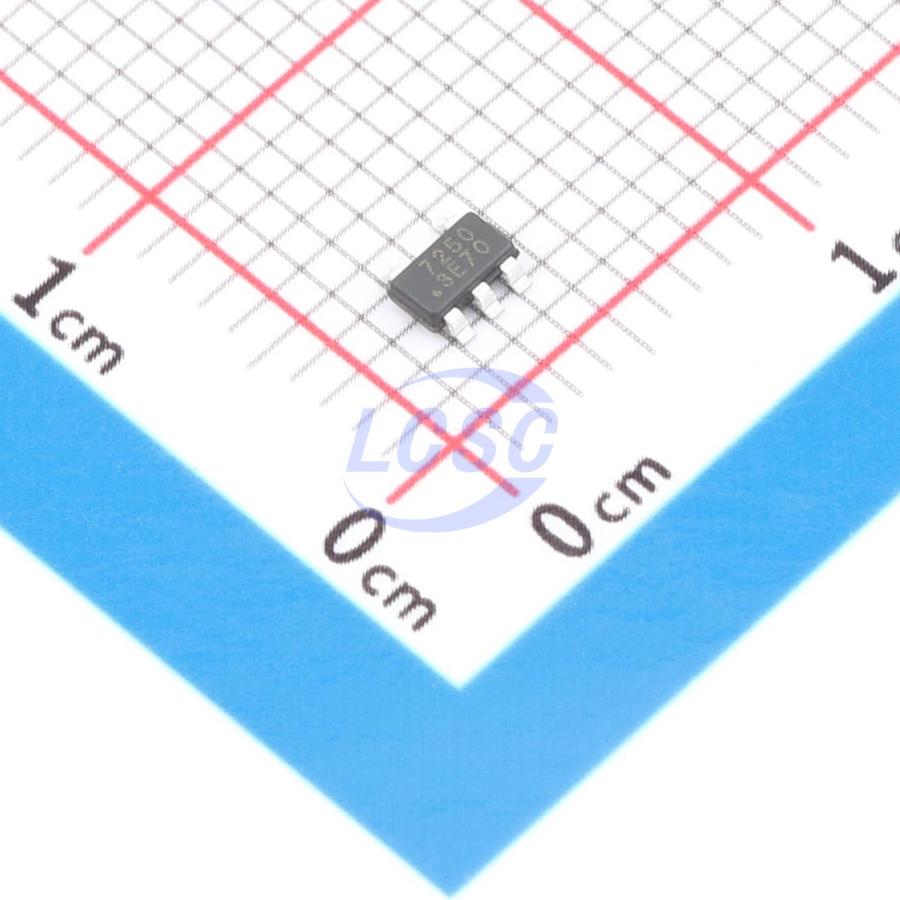

UCC27517DBVR-S-JSM
4.5V~20V 5A 5A TSOT-23-5 Gate Drivers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- UCC27517DBVR-S-JSM
- Store part #
- C52711846
- Package / case
- TSOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,685 in stock
#C52711846
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.37 | ₹136.85 |
| 50+ | ₹21.37 | ₹1,068.50 |
| 150+ | ₹18.80 | ₹2,820.00 |
| 500+ | ₹15.58 | ₹7,790.00 |
| 3,000+ | ₹14.21 | ₹42,630.00 |
| 6,000+ | ₹13.36 | ₹80,160.00 |
5 × ₹27.37
₹136.85
excl. GST
₹161.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UCC27517DBVR-S-JSM
₹136.85 for 5 + GST
Specifications
- Quiescent Current
- 30uA
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 9ns
- Fall Time
- 6ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
UCC27517DBVR-S is a single-channel high-speed low-side gate driver delivering 5A peak source and sink current with rail-to-rail drive capability for MOSFETs, IGBTs, and GaN power devices. The device features a minimum 13ns input-to-output propagation delay and a 20V supply rail, making it suitable for high-frequency power converter applications. Its input accepts negative voltages as low as -5V for enhanced input noise immunity. Wide input hysteresis ensures compatibility with TTL low-voltage logic. The flexible configuration of IN+ and IN- inputs allows the UCC27517DBVR-S to function as either a non-inverting or inverting driver. The device incorporates a non-overlapping drive design to prevent shoot-through in the output stage. Operating temperature range spans -40°C to 150°C. The UCC27517DBVR-S is available in a SOT23-THN package.
Applications
- Power MOSFET gate drive
- IGBT gate drive
- GaN device gate drive
- Switching power supply
- Motor control
- Solar power generation
Key features
- 5A peak source and 5A peak sink current
- 4.5V ~ 20V wide supply voltage range
- Negative input voltage capability down to -5V
- Fast propagation delay: 13ns
- Fast rise and fall times: 9ns and 6ns
- TTL input logic threshold
- Undervoltage lockout protection
- Low quiescent current: 30uA
- Output low when input floating
- SOT23-THN package
