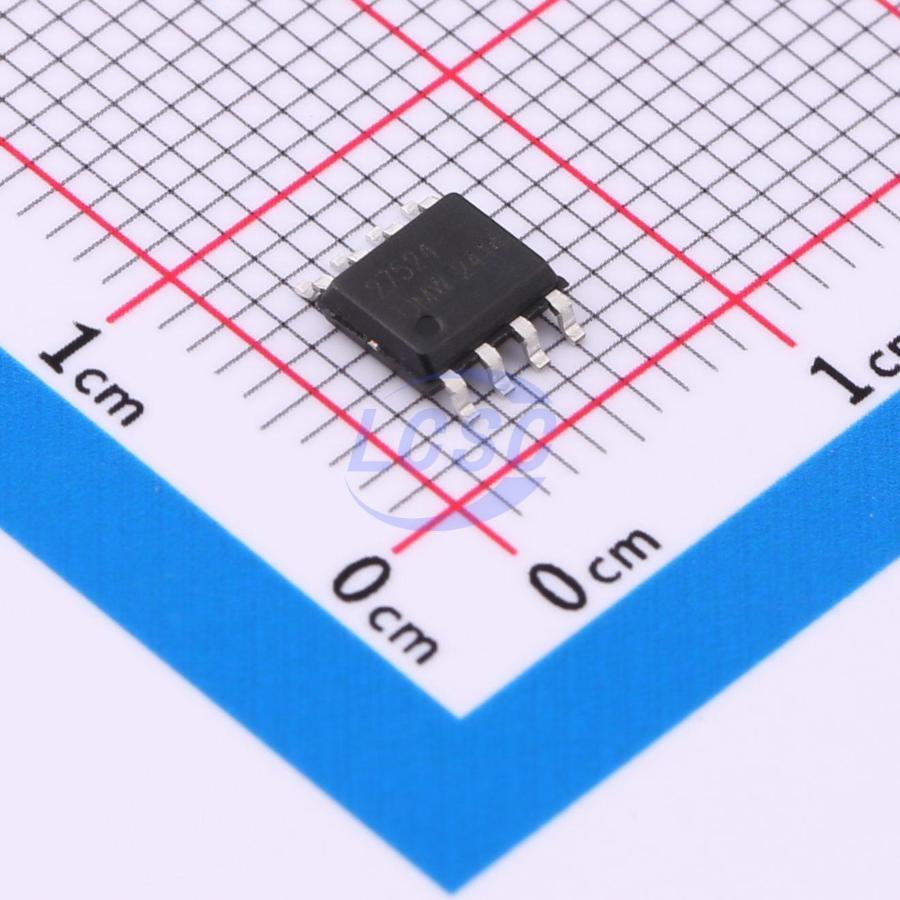

UCC27524ADR(UMW)
4.5V~20V SOP-8 Gate Drivers RoHS
Dual 4A High-Speed Power Switching Driver
- Manufacturer
- UMW
- Manufacturer part #
- UCC27524ADR(UMW)
- Store part #
- C20623194
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C20623194
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.71 | ₹188.55 |
| 50+ | ₹29.44 | ₹1,472.00 |
| 150+ | ₹25.89 | ₹3,883.50 |
| 500+ | ₹21.47 | ₹10,735.00 |
| 2,500+ | ₹19.50 | ₹48,750.00 |
| 5,000+ | ₹18.32 | ₹91,600.00 |
5 × ₹37.71
₹188.55
excl. GST
₹222.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC27524ADR(UMW)
₹188.55 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 1.5mA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Rise Time
- 15ns
- Fall Time
- 15ns
- Features
- Enable shutdown
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
The UMW UCC27524ADR is a dual-channel, high-speed, low-side gate driver capable of effectively driving MOSFET and IGBT power switches. It features matched rise and fall times when charging and discharging power switch gates. In addition, the UMW UCC27524ADR offers extremely high latch-up immunity under all conditions within its rated power and voltage range. The UMW UCC27524ADR will not be damaged when noise spikes of up to 5V (either polarity) appear on the ground pin. The UMW UCC27524ADR can withstand reverse currents of up to 500mA without damage or logic upset. All terminals are fully ESD-protected up to 2.0kV.
Applications
- Line drivers
- Pulse transformer drivers
- MOSFET and IGBT drives
- Motor drives
- Pulse generators
Key features
- Latch-up protection: withstands 0.5 A reverse current
- Input capable of handling negative voltage (-10 V)
- Low output impedance
- Two independent gate drive channels
- Independent enable function per output
- 4 A peak source and sink current drive capability
- 4.5 V to 20 V single-supply operating range
- Strong capacitive load drive capability: switching time < 25 ns at 1 nF load
- Matched rise/fall times
- Fast propagation delay (typical 40 ns)
- Operating temperature range: -40°C to 125°C
- Turn-on/turn-off delay: Ton/Toff = 70 ns / 70 ns
Same category
