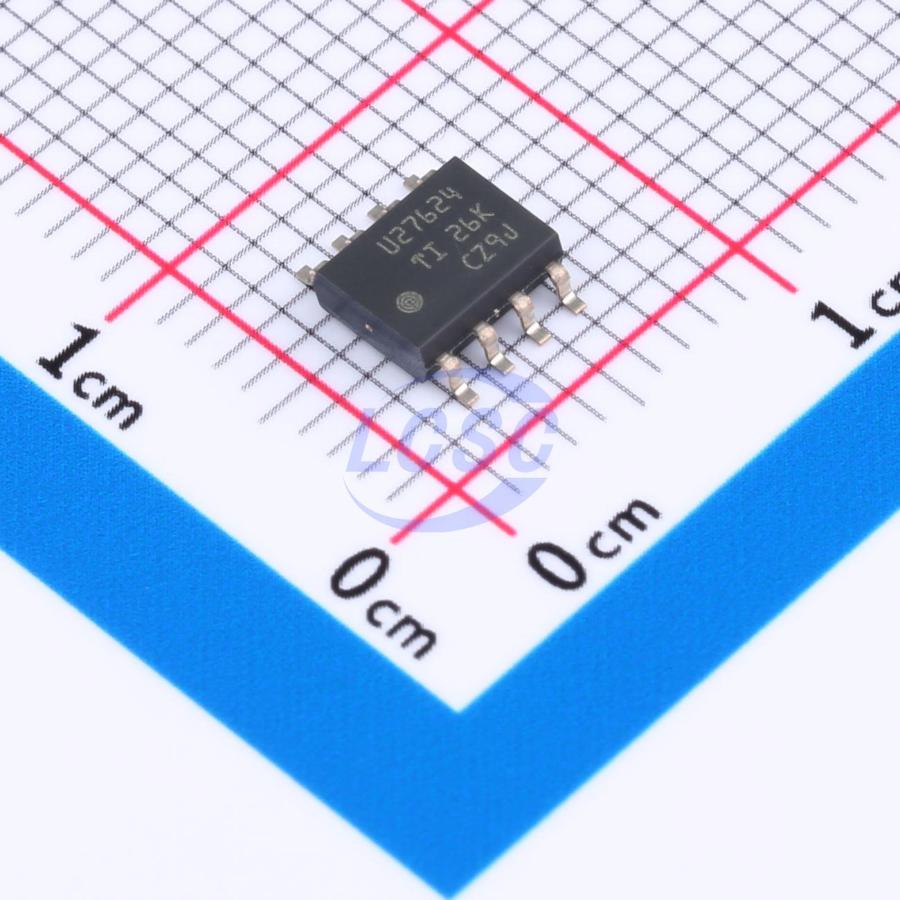

UCC27624DR
Low Side Gate Driver IC MOSFET SOIC-8
SOIC-8ROHS3 CompliantActive
Dual-channel low-side gate driver with -10V input capability, 30V, and 5A
- Manufacturer
- TI
- Manufacturer part #
- UCC27624DR
- Store part #
- C3655293
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,421 in stock
#C3655293
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.76 | ₹61.76 |
| 10+ | ₹48.06 | ₹480.60 |
| 30+ | ₹42.19 | ₹1,265.70 |
| 100+ | ₹35.02 | ₹3,502.00 |
| 500+ | ₹31.75 | ₹15,875.00 |
| 1,000+ | ₹29.79 | ₹29,790.00 |
1 × ₹61.76
₹61.76
excl. GST
₹72.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC27624DR
₹61.76 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.2V
- Low Level Delay Time
- 17ns
- High Level Delay Time
- 17ns
- Quiescent Current
- 300uA
- Input Logic Level - High
- 1.8V~2.3V
- Voltage - Supply
- 4.5V~26V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 6ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
