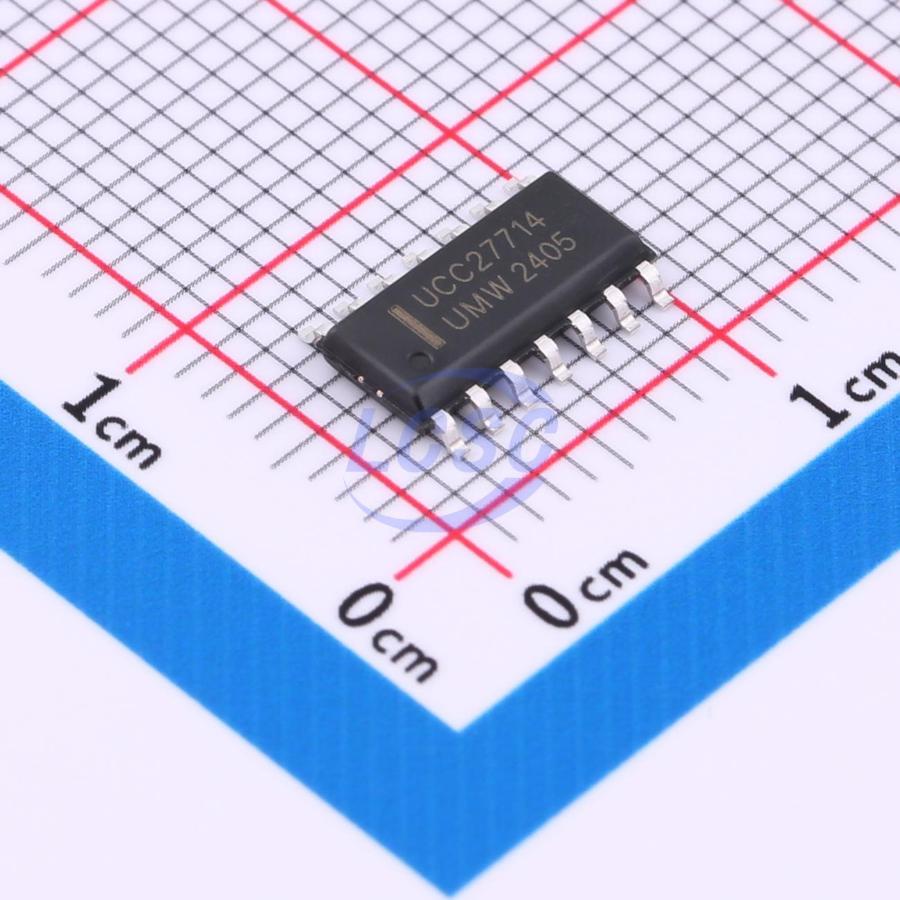

UCC27714DR(UMW)
10V~20V 4A 4A SOP-14 Gate Drivers RoHS
700V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- UCC27714DR(UMW)
- Store part #
- C20623188
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,220 in stock
#C20623188
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.08 | ₹62.08 |
| 10+ | ₹54.98 | ₹549.80 |
| 30+ | ₹51.33 | ₹1,539.90 |
| 100+ | ₹47.68 | ₹4,768.00 |
| 500+ | ₹45.54 | ₹22,770.00 |
| 1,000+ | ₹44.47 | ₹44,470.00 |
1 × ₹62.08
₹62.08
excl. GST
₹73.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC27714DR(UMW)
₹62.08 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.283 g
Overview
UMW UCC27714DR is a high-voltage, high-speed power MOSFET driver featuring independent high-side and low-side referenced output channels. Its proprietary HVIC and latch-up resistant CMOS technology enables a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize cross-conduction. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations, with operating voltages up to 700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel design for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt noise immunity ±50 V/nsec
- Allowable negative Vs capability: -9V
- Gate drive supply voltage range 10V to 20V
- Typical output source/sink current capability: 4A/4A
- Dual-channel undervoltage lockout
- UVLO positive threshold 8.9V
- UVLO negative threshold 8.2V
- Turn-on/turn-off propagation delay - Ton/Toff = 130ns/130ns
- Dual-channel matched propagation delay
- RoHS compliant
