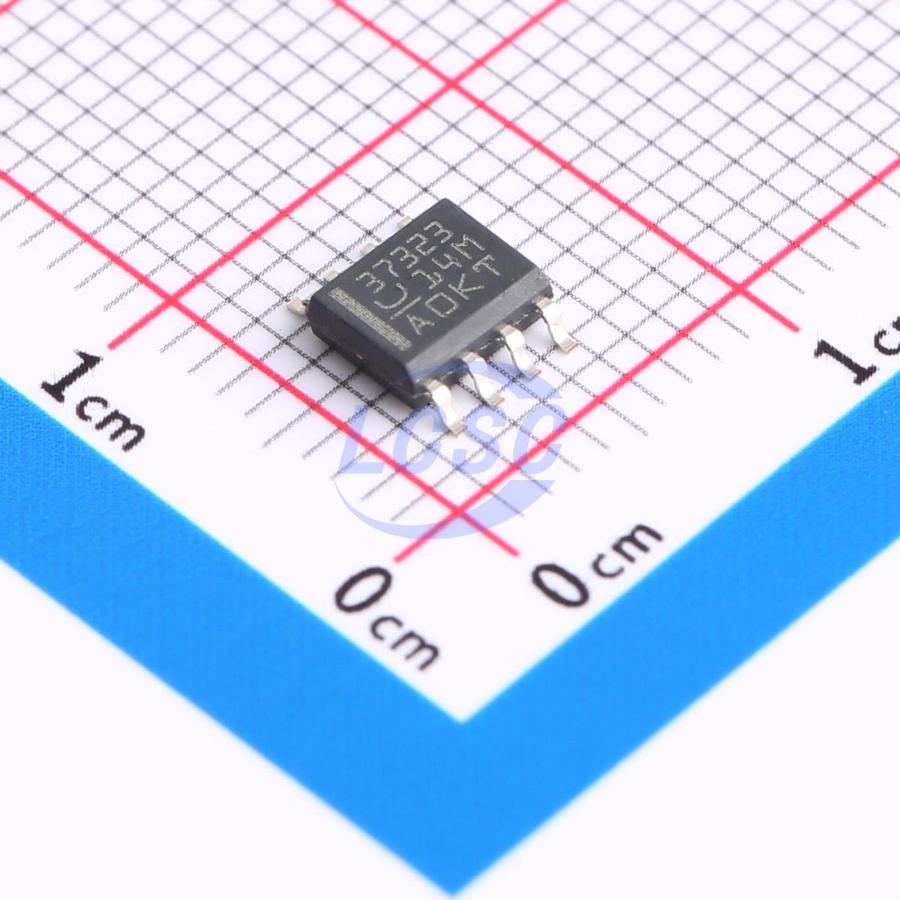

UCC37323DR
Low Side Gate Driver IC MOSFET SOIC-8
High-speed dual MOSFET driver
- Manufacturer
- TI
- Manufacturer part #
- UCC37323DR
- Store part #
- C1848354
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,819 in stock
#C1848354
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹113.59 | ₹113.59 |
| 10+ | ₹96.43 | ₹964.30 |
| 30+ | ₹84.50 | ₹2,535.00 |
| 100+ | ₹74.50 | ₹7,450.00 |
| 500+ | ₹71.24 | ₹35,620.00 |
| 1,000+ | ₹69.51 | ₹69,510.00 |
1 × ₹113.59
₹113.59
excl. GST
₹134.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC37323DR
₹113.59 for 1 + GST
Specifications
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 35ns
- Quiescent Current
- 300uA
- Voltage - Supply
- 4.5V~15V
- Operating Temperature
- 0℃~+70℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 20ns
- Fall Time
- 15ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The UCC2732x and UCC3732x series of high-speed dual MOSFET drivers offer a 4A peak sourcing current and a 4A peak sinking current to provide the highly efficient MOSFET drive most needed in the Miller plateau region. The unique parallel combination of bipolar and MOSFET hybrid output stages enables efficient sourcing and sinking currents at low supply voltages. Combinations of three standard logic options are provided - dual inverting, dual non-inverting, and one inverting and one non-inverting. The input thresholds are based on TTL and CMOS, independent of the supply voltage, and feature wide input hysteresis that provides excellent noise immunity. The UCC2732x and UCC3732x series are available in standard SOIC - 8 (D) or PDIP - 8 (P) packages, as well as a thermally enhanced 8-pin PowerPAD MSOP package (DGN), which significantly reduces thermal resistance to improve long-term reliability.
Applications
- Switching power supply
- DC/DC converter
- Photovoltaic inverter
- Motor control
- UPS
Key features
- Bi-CMOS output architecture delivers ±4A drive current in the Miller plateau region
- Constant-current parallel output for higher drive current, even at low supply voltages
- Available in MSOP-PowerPAD package
- TTL/CMOS input independent of supply voltage
- Industry-standard pinout
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UCC27325DR#C2868353TI · SOIC-8 | TI | SOIC-8 | 124 | ₹191.24 · 124 in stock | View |
 | UCC27324DR#C46427TI · SOIC-8 | TI | SOIC-8 | 85,490 | ₹42.79 · 85,490 in stock | View |
 | UCC27325DR-TUDI#C54935129Tudi · SOP-8 | Tudi | SOP-8 | 190 | ₹65.26 · 190 in stock | View |
 | UCC27324DR-TUDI#C54935130Tudi · SOP-8 | Tudi | SOP-8 | 161 | ₹55.51 · 161 in stock | View |
 | UCC37325DR#C2677148TI · SOIC-8 | TI | SOIC-8 | 184 | ₹120.94 · 184 in stock | View |
