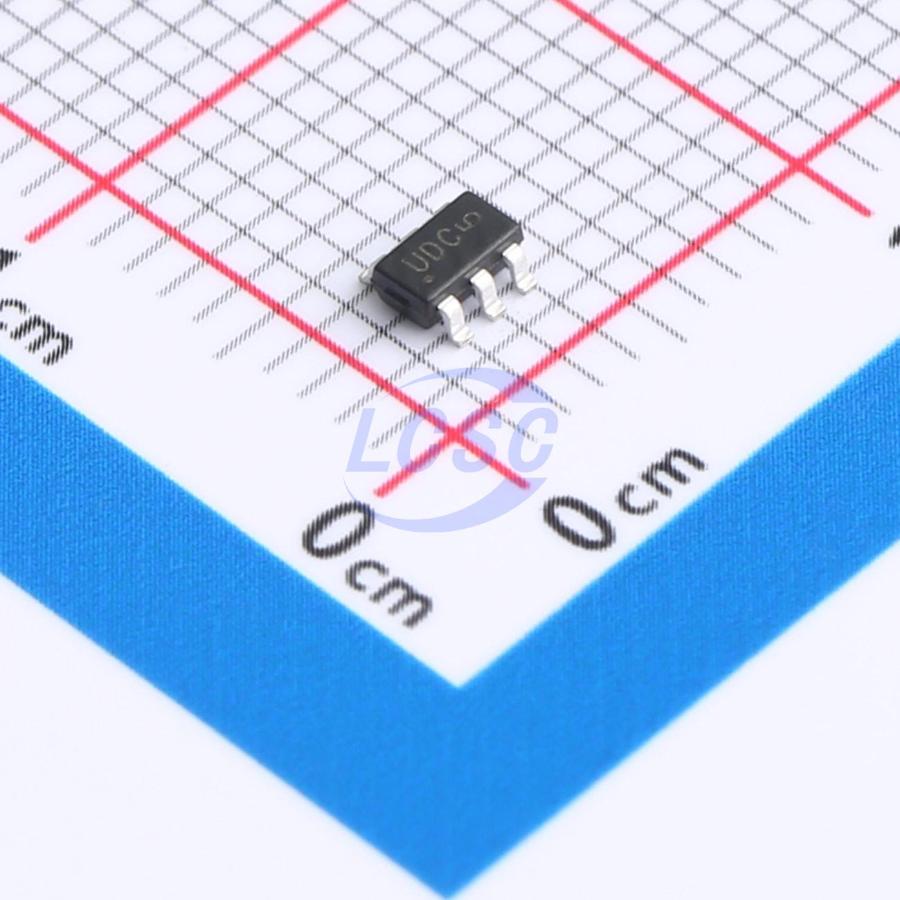

UM1663S
1MHz PWM 2.8V~36V 2.8V~5.5V SOT-23-6 LED Drivers RoHS
36V Boost LED Driver with PWM and Single-Wire Interface Dimming
- Manufacturer
- Union Semiconductor
- Manufacturer part #
- UM1663S
- Store part #
- C7542878
- Package / case
- SOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C7542878
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.81 | ₹199.05 |
| 50+ | ₹31.82 | ₹1,591.00 |
| 150+ | ₹28.40 | ₹4,260.00 |
| 500+ | ₹24.13 | ₹12,065.00 |
| 3,000+ | ₹21.75 | ₹65,250.00 |
| 6,000+ | ₹20.61 | ₹1,23,660.00 |
5 × ₹39.81
₹199.05
excl. GST
₹234.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UM1663S
₹199.05 for 5 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.8V~36V
- Operating Temperature
- -40℃~+85℃
- Features
- Over Voltage Protection;Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Voltage - Input(DC)
- 2.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The UM1663S is a highly integrated LED driver IC capable of driving 10 WLEDs in series. It is composed of a current mode boost converter integrated with a 38V/1A power switch. The UM1663S supports a wide input voltage range from 2.8V to 5.5V and runs at a fixed frequency of 1MHz. The LED current is set via an external resistor and the feedback voltage is regulated to 200mV. During operation, the LED current is controlled by the duty cycle of the SHDN input signal, which determines the feedback reference voltage. The UM1663S can modify dimming to support 64-step pulse dimming. The UM1663S also has internal overvoltage protection setting to prevent the output from exceeding the absolute maximum ratings during open LED conditions. It is available in GreenSOT23-6 package and operates over an ambient temperature range of -40°C to +85°C.
Applications
- Mobile Phone and Smart Phone
- Digital Camera and GPS
- Portable DVD Player
Key features
- High Output Voltage: Up to 36V
- Internal Soft-Start and Compensation
- 200mV Reference Voltage
- PWM Dimming and Frequency Range from 500Hz to 50kHz
- 64-Step Pulse Dimming
- Open LED Protection
- Internal Over Voltage Protection Setting
- Over Temperature Protection
- Current Limit Protection
- RoHS Compliant and Halogen Free
