Union Semiconductor

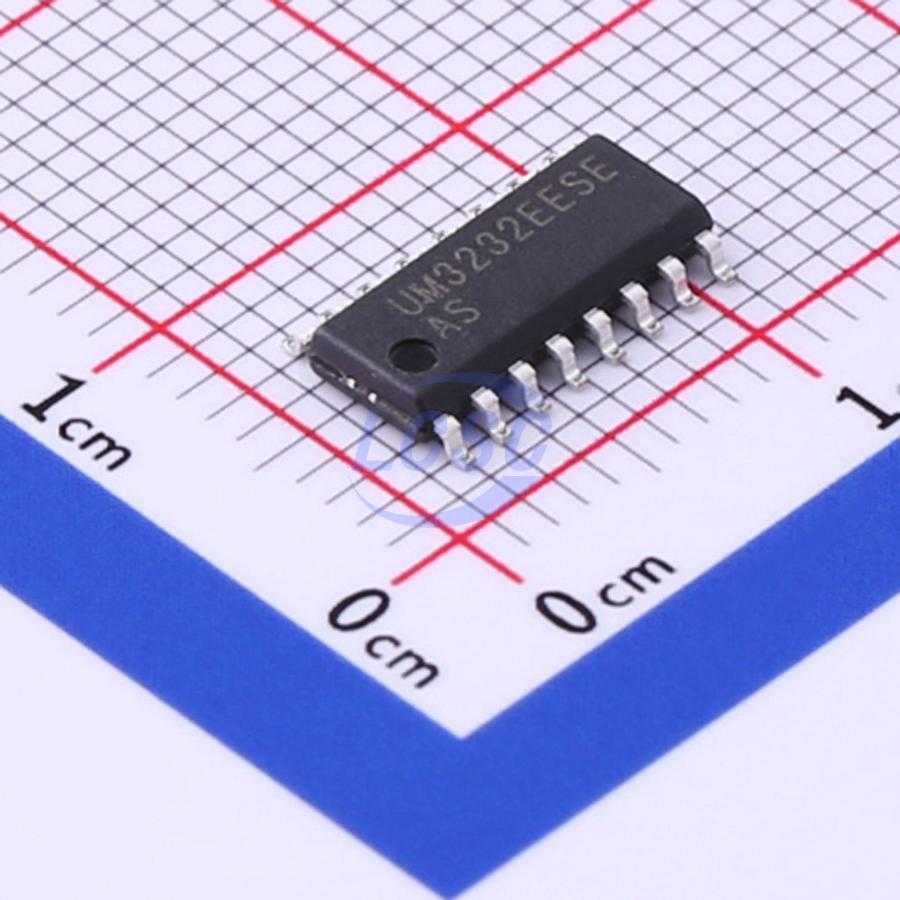

UM3232EESE

Transceiver 3V~5.5V 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS

SOP-16ROHS CompliantActive

UM3221E/UM3222E/UM3232E Fail-Safe, Single Supply RS-232 Transceivers

Manufacturer: Union Semiconductor
Manufacturer part #: UM3232EESE
Store part #: C510537
Package / case: SOP-16
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,144 in stock

#C510537

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹53.34	₹53.34
10+	₹42.28	₹422.80
30+	₹37.52	₹1,125.60
100+	₹31.66	₹3,166.00
500+	₹28.40	₹14,200.00
1,000+	₹26.90	₹26,900.00

Quantity (min 1)

1 × ₹53.34

₹53.34

excl. GST

₹62.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

UM3232EESE

₹53.34 for 1 + GST

Specifications

Type: Transceiver
Voltage - Supply: 3V~5.5V
Data Rate: 250Kbps
Operating Temperature: -40℃~+85℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Features: Automatic level shifting;Short-Circuit Protection;Hot-swap protection
Number of Receivers: 2
Quiescent Supply Current: 1.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.336 g

Overview

The UM3221E/UM3222E/UM3232E series are 3.3V powered RS-232 transceivers intended for portable or hand-held applications. The UM3221E has one driver/one receiver while the UM3222E/UM3232E has two drivers/two receivers. The device features low power consumption, high data-rate capability and enhanced ESD protection. The ESD rating of all transmitter outputs and receiver inputs is ±15kV for both human body mode and IEC61000-4-2 air discharge methods, and over ±8kV for IEC61000-4-2 contact discharge methods. The logic I/O pins are protected to ±2kV for human body mode. Small footprint, low profile package and the use of small 0.1μF capacitors ensure board space savings as well. Data rates greater than 250kbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V-only systems, mixed 1.8V and 3.3V systems, mixed 3.3V and 5.0V systems and 5.0V-only systems. The UM3221E/UM3222E has a low-power shutdown mode where the devices’ driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA that reduces power consumption in battery-powered portable systems or other low power consumption systems. The UM3221E/UM3222E receivers remain active in shutdown mode, allowing monitoring of external signals. The UM3221E/UM3222E and UM3232E are pin, package, and functionally compatible with the industry standard MAX242 and MAX 232, respectively.

Applications

Industrial Automation Equipments
Battery-Powered Equipments
Hand-Held Equipments
POS Terminals

Key features

Meets True EIA/TIA-232-F Standards from a +3.0V to +5.5V Power Supply
Meets EIA/TIA-562 Levels of ±3.7V with Supply Voltages as Low as 2.7V
Enhanced ESD Specifications: ±15kV Human Body Mode, ±15kV IEC61000-4-2 Air Discharge Mode, ±8kV IEC61000-4-2 Contact Discharge Mode
1μA Low Power Shutdown (UM3221E/UM3222E)
250kbps Minimum Transmission Rate
Guaranteed 30V/μs Max Slew Rate
Latch-Up Performance Exceeds 200mA
Hot Swap and Fail-Safe
I/O Logic Compatible with 1.8V Logic @ VCC = 3.3V
