Union Semiconductor

UM3304QS

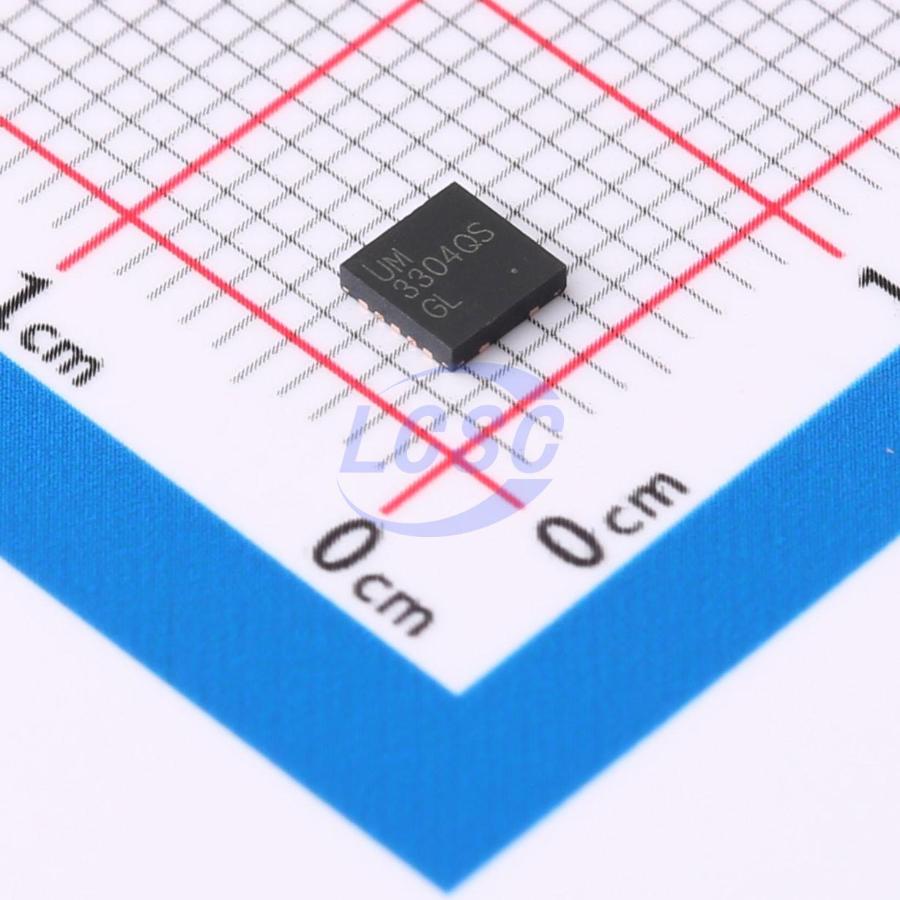

100Mbps 4 QFN-14-EP(3.5x3.5) Translators, Level Shifters RoHS

QFN-14-EP(3.5x3.5)ROHS CompliantActive

4-Bit Bidirectional Voltage-Level Translator with Auto Direction Sensing and ±4kV ESD Protection

Manufacturer: Union Semiconductor
Manufacturer part #: UM3304QS
Store part #: C2932357
Package / case: QFN-14-EP(3.5x3.5)
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,525 in stock

#C2932357

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹78.00	₹78.00
10+	₹63.87	₹638.70
30+	₹56.72	₹1,701.60
100+	₹49.76	₹4,976.00
500+	₹44.55	₹22,275.00
1,000+	₹42.59	₹42,590.00

Quantity (min 1)

1 × ₹78.00

₹78.00

excl. GST

₹92.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

UM3304QS

₹78.00 for 1 + GST

Specifications

output type: Tri-State
Operating Temperature: -40℃~+85℃
Data Rate: 100Mbps
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance
Voltage - Supply: 1.2V~3.6V;1.65V~5.5V
Number of Circuits: 4

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.19 g

Overview

UM3304/UM3304Q/UM3304QS/UM3304QT/UM3304QA is quad channel level translator with auto direction sensing and ±4kV ESD protection. This 4-channel non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes. Both I/O ports are auto-sensing; thus, no direction pin is required, making it ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems. The UM3304/UM3304Q/UM3304QS/UM3304QT/UM3304QA operates at a guaranteed data rate of 20Mbps over the entire specified operating voltage range. Within specific voltage domains, higher data rates are up to 100Mbps. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The UM3304/UM3304Q/UM3304QS/UM3304QT/UM3304QA is designed so that the OE input circuit is designed to track VCCA. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. The UM3304 is a quad level translator available in 1.90mm×1.40mm CSP12 bump package while the UM3304Q/UM3304QS is packaged in a 3.50mm×3.50mm QFN14 package, the UM3304QT is packaged in a 2.60mm×1.80mm QFN16 package and the UM3304QA is packaged in 1.70mm×2.00mm QFN12 package.

Applications

Low-Voltage ASIC Level Translation
Cell-Phone Cradles
Portable POS Systems
Portable Communication Devices Low-Cost Serial Interfaces Cell-Phones GPS
Telecommunications Equipment

Key features

1.2V to 3.6V on A Port and 1.65V to 5.5V on B Port (VCCA ≤ VCCB)
VCC Isolation Feature – If Either VCC Input is at GND, All Outputs are in the High-Impedance State
OE Input Circuit Referenced to VCCA
Low Power Consumption
Latch-Up Performance Exceeds 100mA
±4kV ESD Protection on B Ports
