UTCDatasheet (PDF)

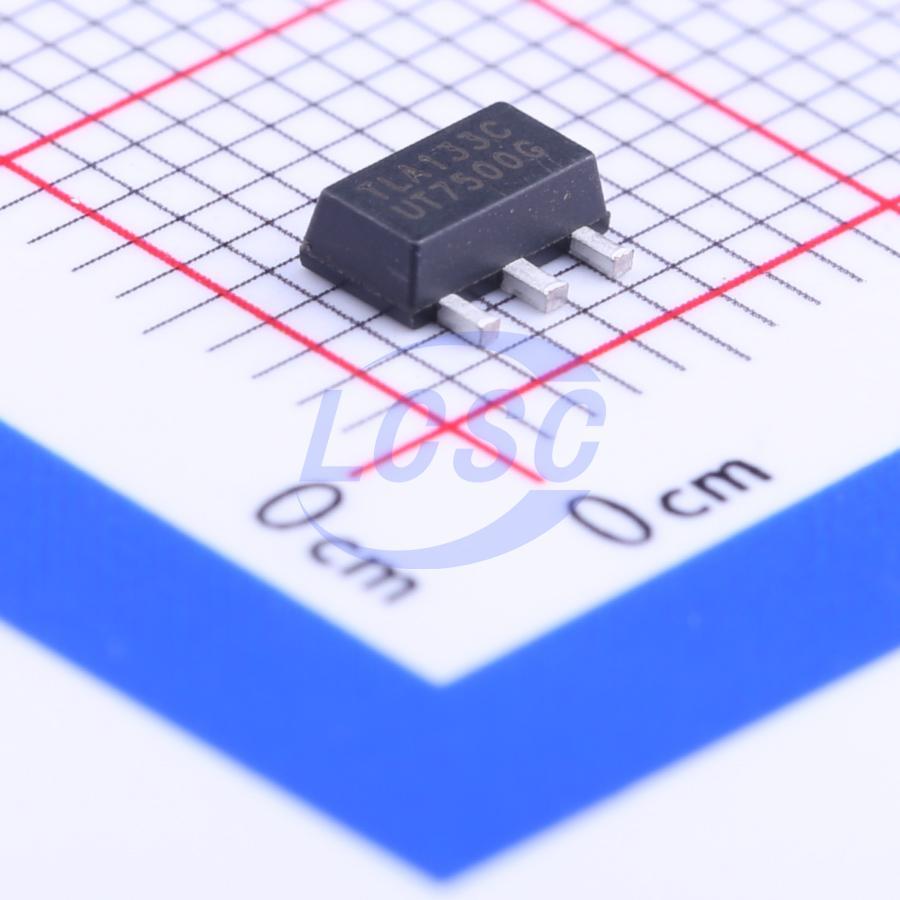

UT7500G-33-AB3-C-R
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS CompliantActive
CMOS IC High-Drive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- UT7500G-33-AB3-C-R
- Store part #
- C82129
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,410 in stock
#C82129
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.38 | ₹81.90 |
| 50+ | ₹13.07 | ₹653.50 |
| 150+ | ₹11.42 | ₹1,713.00 |
| 500+ | ₹10.17 | ₹5,085.00 |
| 2,500+ | ₹9.19 | ₹22,975.00 |
| 4,000+ | ₹8.69 | ₹34,760.00 |
| 8,000+ | ₹8.59 | ₹68,720.00 |
| 20,000+ | ₹8.52 | ₹1,70,400.00 |
5 × ₹16.38
₹81.90
excl. GST
₹96.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UT7500G-33-AB3-C-R
₹81.90 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
The UTC UT7500 series is a low voltage regulator implemented by CMOS technology which is composed of a three-terminal high current. The input voltage for it is allowed as high as 24V and the output voltage are fixed at 1.8V, 2.5V, 3.0V, 3.3V, 3.6V, 4.0V and 5.0V. Besides, it delivers 100mA output current. Other outstanding features of UTC UT7500 include low voltage drop and low quiescent current. When being used with external components, UTC UT7500 can obtain variable voltages and currents. UTC UT7500 series is very suitable for applications, such as battery-powered equipment, communication equipment and audio/video equipment.
Applications
- battery-powered equipment
- communication equipment
- audio/video equipment
Key features
- Very Low Power Consumption
- Very Low Voltage Drop
- Very Low Temperature Coefficient
- Up to 24V Input Voltage
- 100mA @ PD ≤ 250mW Output Current
- Tolerance ±3%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7533-1#C5273790TWGMC · SOT-89 | TWGMC | SOT-89 | 14,530 | ₹6.59 · 14,530 in stock | View |
 | 7533#C18195388LangJie · SOT-89 | LangJie | SOT-89 | 5 | ₹14.45 · 5 in stock | View |
 | HT7533#C499633KEXIN · SOT-89 | KEXIN | SOT-89 | 9,680 | ₹7.81 · 9,680 in stock | View |
 | HT7533-1#C21714136CBI · SOT-89 | CBI | SOT-89 | 90 | ₹7.06 · 90 in stock | View |
 | HT7133-1#C5279050TWGMC · SOT-89 | TWGMC | SOT-89 | 1,120 | ₹8.03 · 1,120 in stock | View |
