VBsemi ElecDatasheet (PDF)

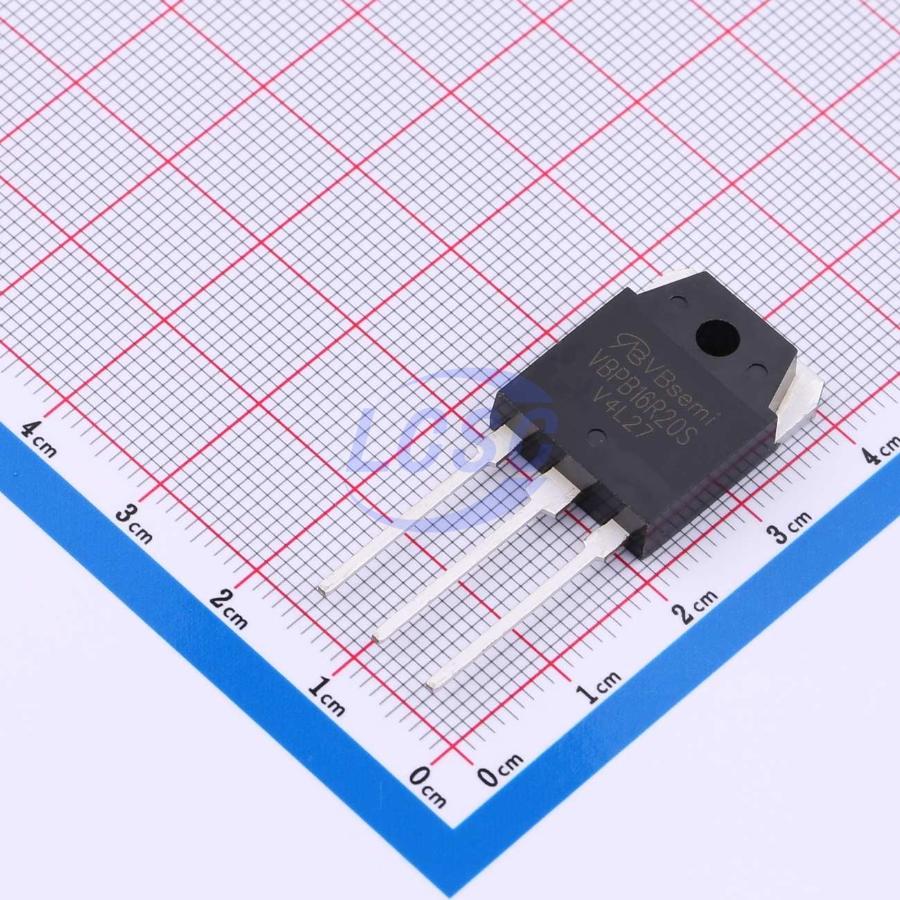

VBPB16R20S
N-Channel 600V 20A 208W Through Hole TO-3P
TO-3PRoHSActive
MOSFET N-CH 600V 20A TO-3P
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBPB16R20S
- Store part #
- C42412814
- Package / case
- TO-3P
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C42412814
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹647.21 | ₹647.21 |
| 10+ | ₹581.25 | ₹5,812.50 |
| 30+ | ₹373.79 | ₹11,213.70 |
| 90+ | ₹334.16 | ₹30,074.40 |
| 510+ | ₹315.88 | ₹1,61,098.80 |
| 990+ | ₹307.61 | ₹3,04,533.90 |
1 × ₹647.21
₹647.21
excl. GST
₹763.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
VBPB16R20S
₹647.21 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.322nF
- Pd - Power Dissipation
- 208W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 190mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 106nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.4 g
Overview
Applications
- Telecommunications - Server and telecom power supplies
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Consumer and computing - ATX power supplies
- Industrial - Welding - Battery chargers
- Renewable energy - Solar (PV inverters)
- Switch mode power supplies (SMPS)
Key features
- N-Channel MOSFET
- Reduced trr, Qrr, and IRRM
- Low figure-of-merit (FOM) R(on)×Qg
- Low input capacitance (Ciss)
- Low switching losses due to reduced Qrr
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IXTQ30N60P-VB#C29779097VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹528.13 · 5 in stock | View |
 | VBPB165R20S#C22372740VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹438.39 · 5 in stock | View |
 | IXFQ28N60P3-VB#C54177234VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 10 | ₹595.18 · 10 in stock | View |
 | 2SK3131-VB#C22389385VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹729.73 · 5 in stock | View |
 | IXTQ48N65X2M-VB#C46527466VBsemi Elec · TO-3P | VBsemi Elec | TO-3P | 5 | ₹659.29 · 5 in stock | View |
