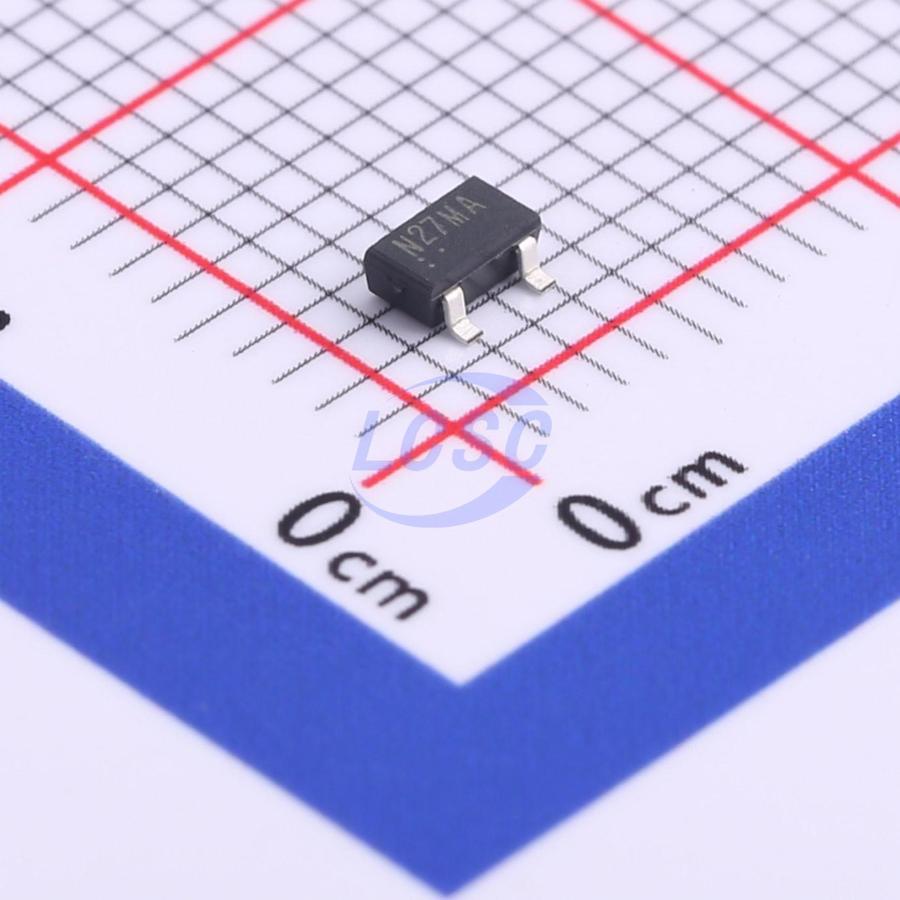

VDD271MNTA
200ms Active Low 700mV~6V 1 SOT-23 Supervisors RoHS
Low voltage, Low power, High detect accuracy CMOS Voltage Detector with Delay circuit
- Manufacturer
- AnaSem
- Manufacturer part #
- VDD271MNTA
- Store part #
- C697879
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C697879
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.13 | ₹91.30 |
| 100+ | ₹7.30 | ₹730.00 |
| 300+ | ₹6.39 | ₹1,917.00 |
| 3,000+ | ₹5.72 | ₹17,160.00 |
| 6,000+ | ₹5.16 | ₹30,960.00 |
| 9,000+ | ₹4.88 | ₹43,920.00 |
10 × ₹9.13
₹91.30
excl. GST
₹107.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
VDD271MNTA
₹91.30 for 10 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 600nA
- Voltage - Supply
- 700mV~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.7V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The VDD series are delay circuit built-in voltage detectors with low voltage, low power consumption and high accuracy. The accuracy of the detection voltage is detected based on a voltage reference of high accuracy that the temperature coefficient is controlled. The detection voltage is made in high accuracy by using the laser trimming technology. Because the delay circuit is built-in, delay time can be set without any external components.
Applications
- Reset of microprocessor
- Power-on reset of system
- Charge detection of battery
- Battery back-up of memory
- Monitoring of battery life time
- Delay circuit
Key features
- Detection voltage range: 1.8V ~ 6.0V (selectable with a step of 0.1V)
- Operating voltage range: 0.7V ~ 6.0V
- High accuracy detection voltage: ±1% (/DET = 1.8V ~ 6.0V)
- Detection voltage temperature characteristics: Typ. ±20ppm/°C (VDET = 1.8V ~ 6.0V)
- Delay time: S/10 ~ 50ms, M/50 ~ 200ms, L/80 ~ 400ms
- Output types: CMOS or N-channel open drain
- Low current consumption: Typ. 0.6μA (VIN = 1.5V)
- Operating temperature range: -40°C ~ +85°C
- Small package: SOT - 23 (2.9×2.8×1.1mm)
