VISHAYDatasheet (PDF)

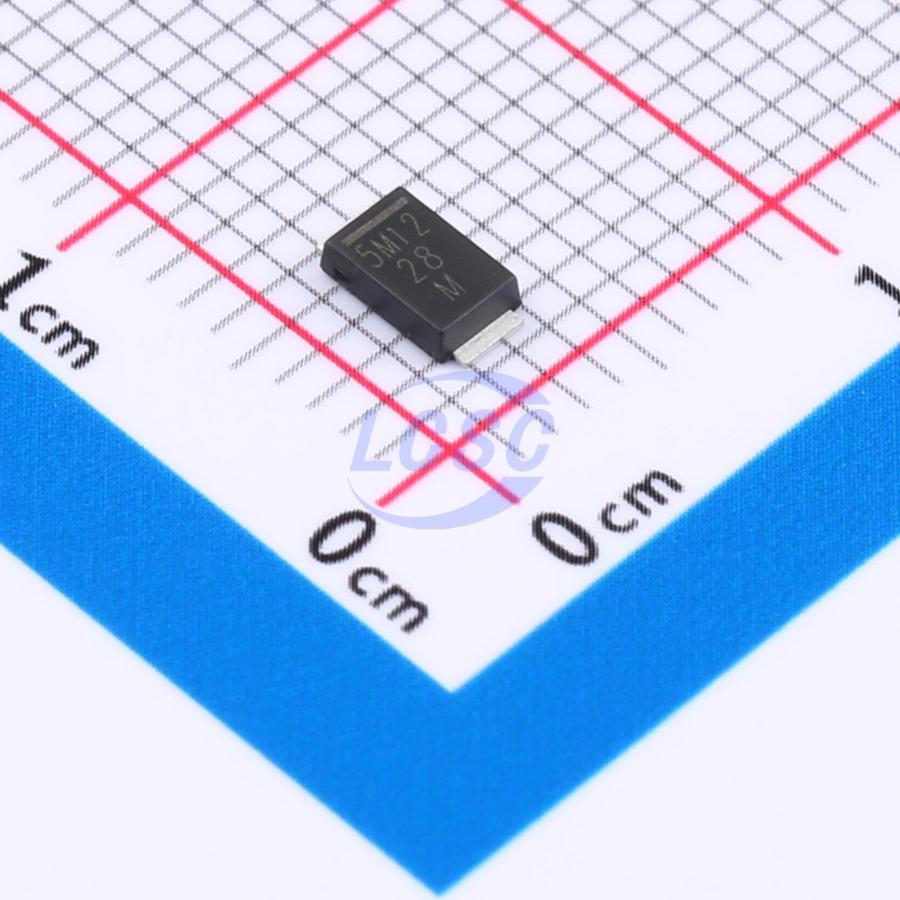

VSS8D5M12-M3/H
Diode 1 Independent 120V 2.2A Surface Mount DO-221AD
DO-221ADROHS3 CompliantActive
DIODE SCHOTTKY 120V DO-221AD
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D5M12-M3/H
- Store part #
- C3759470
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C3759470
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.07 | ₹61.07 |
| 10+ | ₹48.46 | ₹484.60 |
| 30+ | ₹43.04 | ₹1,291.20 |
| 100+ | ₹36.29 | ₹3,629.00 |
| 500+ | ₹33.47 | ₹16,735.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹61.07
₹61.07
excl. GST
₹72.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D5M12-M3/H
₹61.07 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Voltage - Forward(Vf@If)
- 620mV@2.5A
- Reverse Leakage Current (Ir)
- 350uA@120V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 2.2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.068 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHM3
- Compatible to SOD-128 package case outline
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSS8D5M12HM3/H#C3758506VISHAY · DO-221AD | VISHAY | DO-221AD | 70 | ₹37.23 · 70 in stock | View |
 | VSS8D5M15HM3/H#C3757879VISHAY · DO-221AD | VISHAY | DO-221AD | 2 | ₹39.77 · 2 in stock | View |
 | VSS8D3M12-M3/H#C3758077VISHAY · DO-221AD | VISHAY | DO-221AD | 225 | ₹64.40 · 225 in stock | View |
 | VSS8D5M15-M3/H#C3759549VISHAY · DO-221AD | VISHAY | DO-221AD | 173 | ₹59.32 · 173 in stock | View |
| VSS8D5M12-M3/I#C3757305VISHAY · DO-221AD | VISHAY | DO-221AD | On request | ₹22.07 · 0 in stock | View | |
