VISHAYDatasheet (PDF)

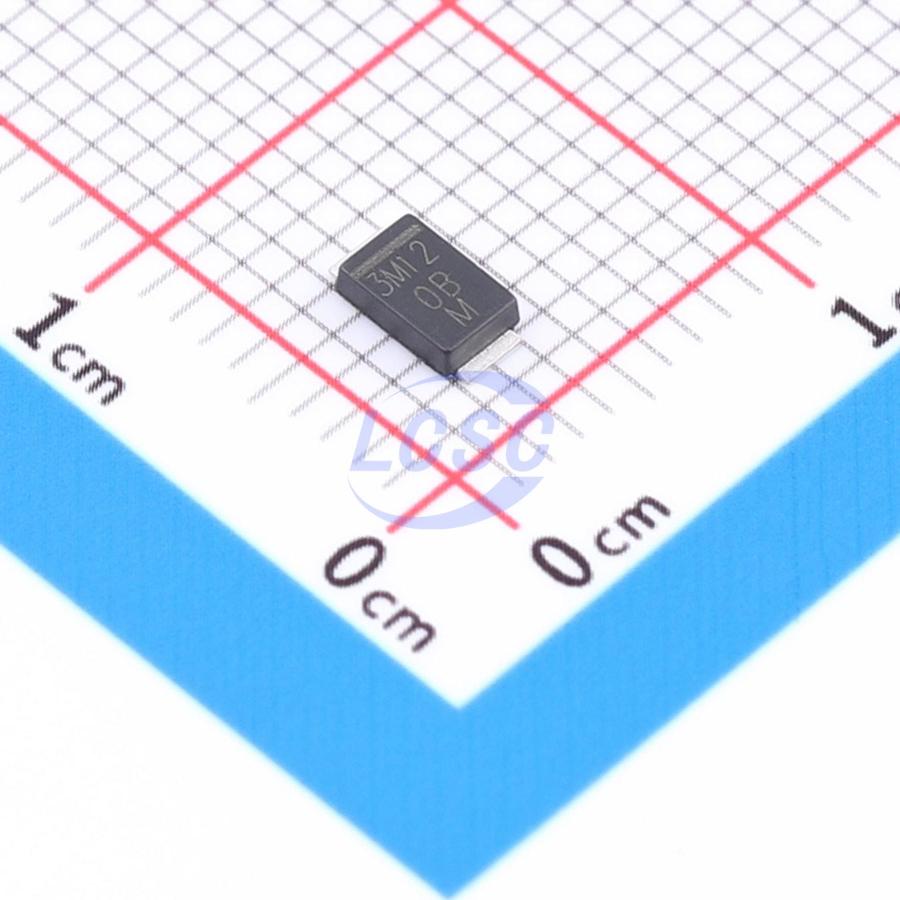

VSS8D3M12-M3/H
1 Independent 120V 610mV@1.5A 2A DO-221AD Single Diodes RoHS
DO-221ADROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- VSS8D3M12-M3/H
- Store part #
- C3758077
- Package / case
- DO-221AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
225 in stock
#C3758077
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.40 | ₹64.40 |
| 10+ | ₹52.70 | ₹527.00 |
| 30+ | ₹47.92 | ₹1,437.60 |
| 100+ | ₹41.63 | ₹4,163.00 |
| 500+ | ₹39.03 | ₹19,515.00 |
| 1,000+ | ₹37.30 | ₹37,300.00 |
1 × ₹64.40
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
VSS8D3M12-M3/H
₹64.40 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Voltage - Forward(Vf@If)
- 610mV@1.5A
- Reverse Leakage Current (Ir)
- 300uA@120V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
Applications
- For use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- MSL Level 1 per J-STD-020, LF max peak of 260°C
- AEC-Q101 qualification available
- Automotive order code: NHM3 base part number
- Compatible with SOD-128 package outline
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VSS8D5M12HM3/H#C3758506VISHAY · DO-221AD | VISHAY | DO-221AD | 70 | ₹37.23 · 70 in stock | View |
 | VSS8D5M12-M3/H#C3759470VISHAY · DO-221AD | VISHAY | DO-221AD | 16 | ₹61.07 · 16 in stock | View |
| VSS8D2M12-M3/H#C3757234VISHAY · DO-221AD | VISHAY | DO-221AD | 27 | ₹70.50 · 27 in stock | View | |
 | VSS8D2M12-M3/I#C3759873VISHAY · DO-221AD | VISHAY | DO-221AD | 349 | ₹119.51 · 349 in stock | View |
 | VSS8D5M15-M3/H#C3759549VISHAY · DO-221AD | VISHAY | DO-221AD | 173 | ₹59.32 · 173 in stock | View |
