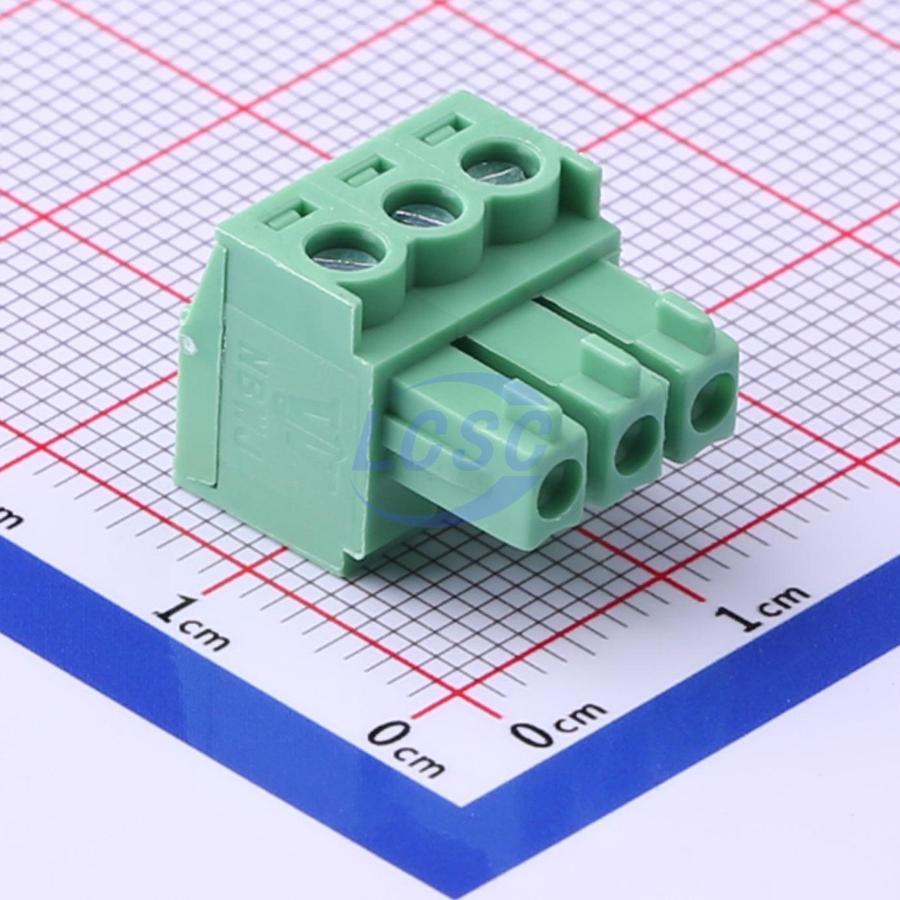

WJ15EDGK-3.81-03P-14-00A
3 Position Male Plug 3.81mm Pitch
PopularP=3.81mmRoHSActive
TERM BLOCK PLUG 3POS 3.81mm
- Manufacturer
- KANGNEX
- Manufacturer part #
- WJ15EDGK-3.81-03P-14-00A
- Store part #
- C8413
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60,355 in stock
#C8413
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.36 | ₹176.80 |
| 50+ | ₹28.15 | ₹1,407.50 |
| 150+ | ₹24.65 | ₹3,697.50 |
| 350+ | ₹19.94 | ₹6,979.00 |
| 2,450+ | ₹19.08 | ₹46,746.00 |
| 4,900+ | ₹18.55 | ₹90,895.00 |
5 × ₹35.36
₹176.80
excl. GST
₹208.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 350 per bag
WJ15EDGK-3.81-03P-14-00A
₹176.80 for 5 + GST
Specifications
- Wire Gauge - mm2
- 1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x3P
- Number of Pins
- 3P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Termination Style
- Without fixing device
- Mounting Type
- Free-hanging
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 350 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.255 g
