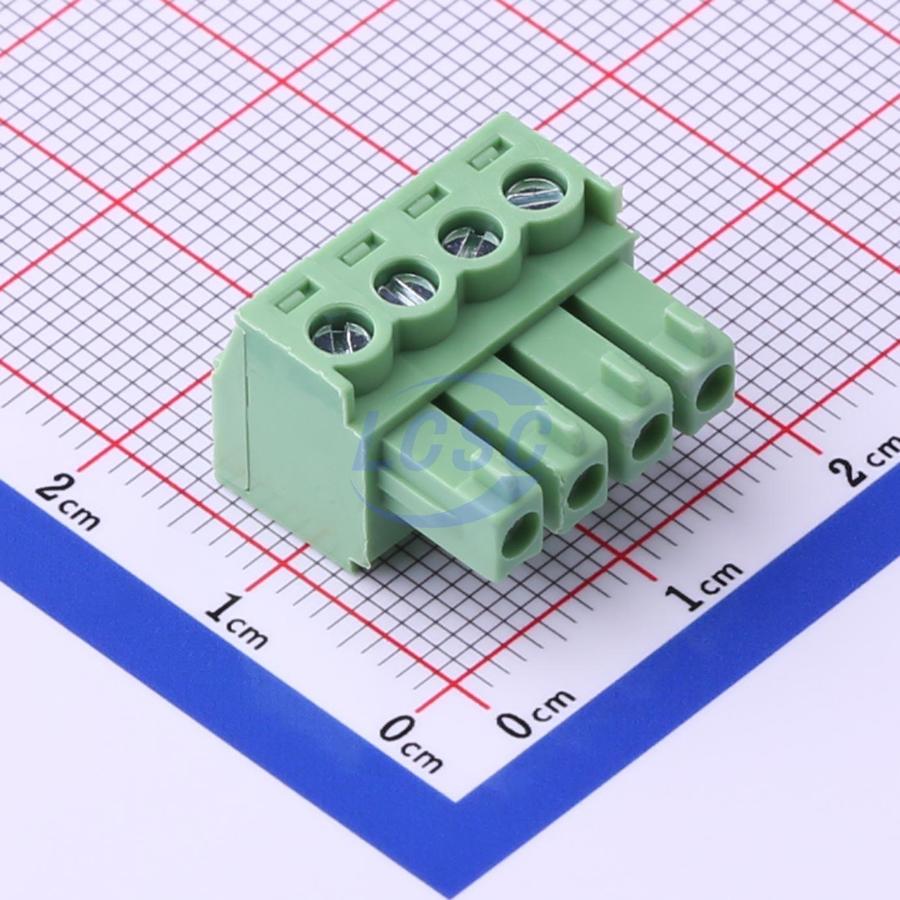

WJ15EDGK-3.81-04P-14-00A
4 Position Male Plug 3.81mm Pitch
PopularP=3.81mmRoHSActive
TERM BLOCK PLUG 4POS 3.81mm
- Manufacturer
- KANGNEX
- Manufacturer part #
- WJ15EDGK-3.81-04P-14-00A
- Store part #
- C7244
- Package / case
- P=3.81mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
62,865 in stock
#C7244
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.99 | ₹219.95 |
| 50+ | ₹34.83 | ₹1,741.50 |
| 300+ | ₹29.45 | ₹8,835.00 |
| 600+ | ₹25.45 | ₹15,270.00 |
| 2,400+ | ₹24.36 | ₹58,464.00 |
| 5,100+ | ₹23.69 | ₹1,20,819.00 |
5 × ₹43.99
₹219.95
excl. GST
₹259.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 300 per bag
WJ15EDGK-3.81-04P-14-00A
₹219.95 for 5 + GST
Specifications
- Wire Gauge - mm2
- 1.5
- Wire Gauge - AWG
- 16~28
- Number of Positions or Pins
- 1x4P
- Number of Pins
- 4P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 4
- Number of Rows
- 1
- Current Rating
- 8A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2)
- Voltage Rating
- 300V
- Pitch
- 3.81mm
- Connector Type
- Male Plug
- Termination Style
- Without fixing device
- Mounting Type
- Free-hanging
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 300 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 3 g
