WJ2EDGK-5.08-03P-14-00A

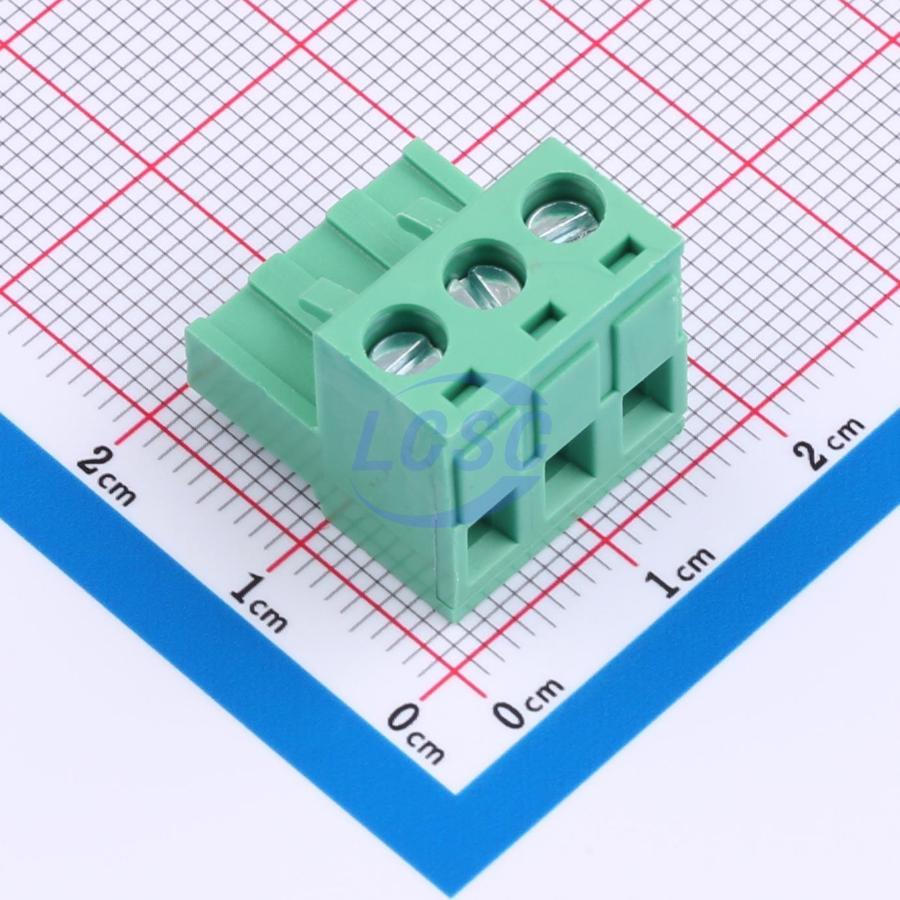

3 Position Male Plug 5.08mm Pitch
PopularP=5.08mmRoHSActive
TERM BLOCK PLUG 3POS 5.08mm
- Manufacturer
- KANGNEX
- Manufacturer part #
- WJ2EDGK-5.08-03P-14-00A
- Store part #
- C71371
- Package / case
- P=5.08mm
- Category
- Headers, Plugs and Sockets
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56,425 in stock
#C71371
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.10 | ₹185.50 |
| 50+ | ₹29.36 | ₹1,468.00 |
| 250+ | ₹24.82 | ₹6,205.00 |
| 500+ | ₹21.45 | ₹10,725.00 |
| 2,500+ | ₹20.52 | ₹51,300.00 |
| 5,000+ | ₹19.96 | ₹99,800.00 |
5 × ₹37.10
₹185.50
excl. GST
₹218.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per bag
WJ2EDGK-5.08-03P-14-00A
₹185.50 for 5 + GST
Specifications
- Wire Gauge - mm2
- 2.5
- Wire Gauge - AWG
- 14~28
- Number of Positions or Pins
- 1x3P
- Number of Pins
- 3P
- Operating Temperature
- -40℃~+105℃
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Current Rating
- 10A
- Outlet Direction (Vertical Basis)
- Top Entry
- Connection Type
- Screw Connection (M2.5)
- Voltage Rating
- 300V
- Pitch
- 5.08mm
- Connector Type
- Male Plug
- Termination Style
- Without fixing device
- Mounting Type
- Free-hanging
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 250 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 4.493 g
