WILLSEMIDatasheet (PDF)

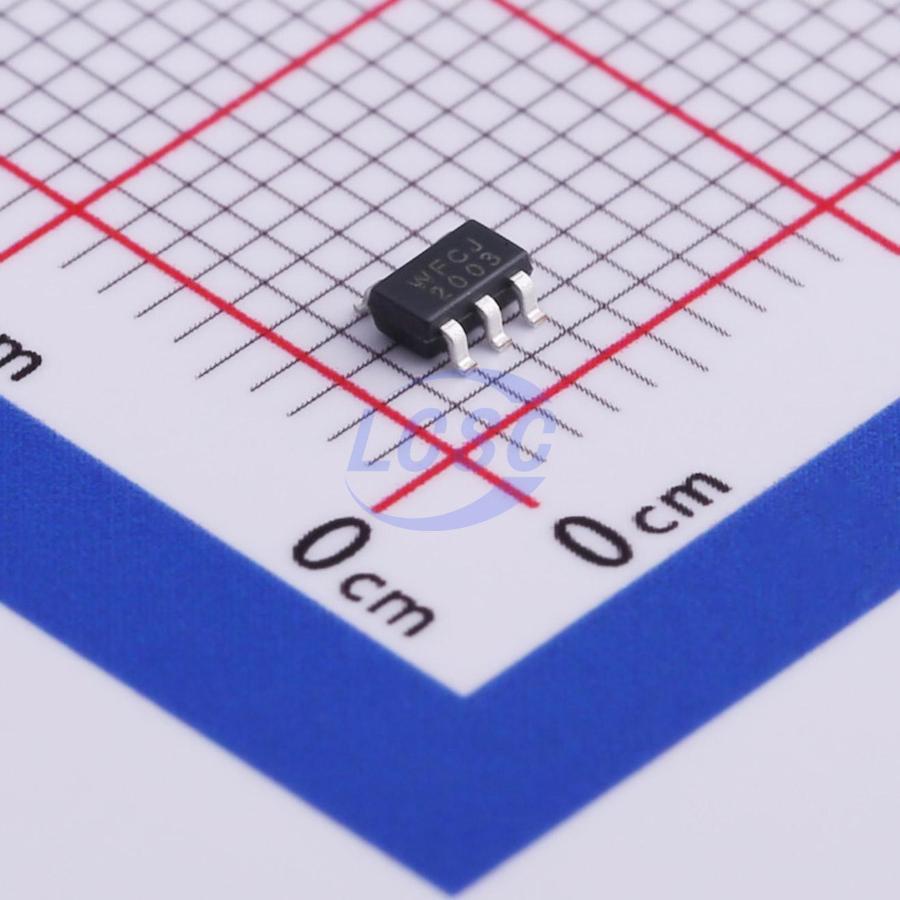

WL2805E28-5/TR
2.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Low power consumption, CMos LDO
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2805E28-5/TR
- Store part #
- C506236
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,475 in stock
#C506236
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.15 | ₹60.75 |
| 50+ | ₹9.75 | ₹487.50 |
| 150+ | ₹8.56 | ₹1,284.00 |
| 500+ | ₹7.67 | ₹3,835.00 |
| 3,000+ | ₹6.96 | ₹20,880.00 |
| 6,000+ | ₹6.59 | ₹39,540.00 |
5 × ₹12.15
₹60.75
excl. GST
₹71.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2805E28-5/TR
₹60.75 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The WL2805 series are low dropout linear regulators and optimized to provide a high performance solution for battery power system to deliver low quiescent current. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The WL2805 series are designed to make use of low cost ceramic capacitors which ensure the stability of the output current, and enhance the efficiency in order to prolong the battery life of those portable devices. The WL2805 regulators are available in SOT-23-3L, SOT-23-5L packages. Standard products are Pb-free and Halogen free products.
Applications
- MP3/MP4 Players
- Cell phones
- Bluetooth earphone
- Wireless mouse
- Others electronics devices
Key features
- Quiescent current : 3μA Typ.
- Input voltage : 2.3V ~ 5.5V
- Output voltage : 1.2V ~ 3.3V
- Output current : 250mA @ VOUT>2V
- Output current : 100mA @ VOUT≤2V
- Dropout voltage : 100mV @ 100mA
- Recommend capacitor : 1uF
- Operating Temperature : -40~+85°C
- Output short protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WL2863E28-5/TR#C2931321WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 1,960 | ₹16.75 · 1,960 in stock | View |
 | WL2803E28-5/TR#C719445WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 1,460 | ₹10.53 · 1,460 in stock | View |
| WL2808E28-5/TR#C3726282WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | On request | Price on request | Quote | |
