WILLSEMIDatasheet (PDF)

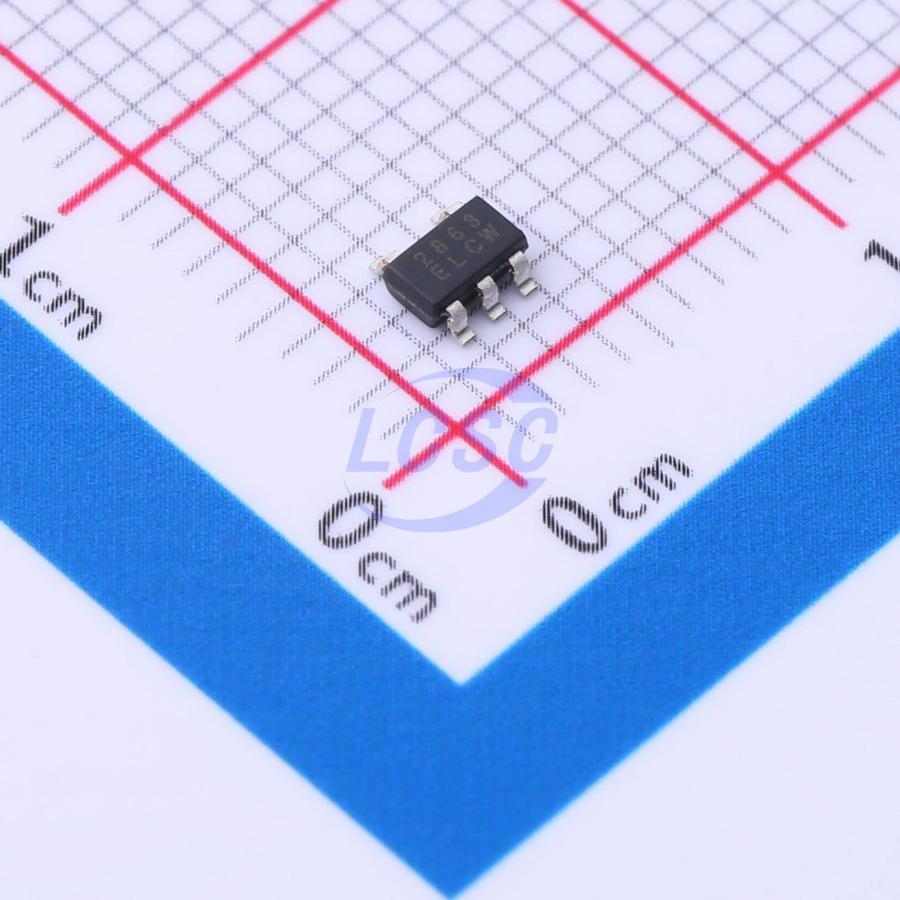

WL2863E28-5/TR
2.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Ultra-Low Noise, High PSRR LDO, 250mA Linear Regulator for RF and Analog Circuits
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WL2863E28-5/TR
- Store part #
- C2931321
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C2931321
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.75 | ₹83.75 |
| 50+ | ₹13.10 | ₹655.00 |
| 150+ | ₹11.27 | ₹1,690.50 |
| 500+ | ₹9.91 | ₹4,955.00 |
| 3,000+ | ₹8.81 | ₹26,430.00 |
| 6,000+ | ₹8.27 | ₹49,620.00 |
5 × ₹16.75
₹83.75
excl. GST
₹98.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WL2863E28-5/TR
₹83.75 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 21uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Output discharge;Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The WL2863E is a linear regulator capable of supplying 250-mA output current. Designed to meet the requirements of RF and analog circuits, the WL2863E device provides low noise, high PSRR, low quiescent current and very good load /line transients. The device is designed to work with a 1μF input and 1μF output ceramic capacitor (no separate noise Operation bypass capacitor is required). The WL2863E regulators are available in standard SOT-23-5L Package. Standard products are Pb-free and Halogen-free.
Applications
- Cell phones, radiophone, digital cameras
- Bluetooth, wireless handsets
- HiFi products
- Others portable electronics device
Key features
- Input Voltage Range: 2.2V~5.5V
- Output Voltage Range: 1.2V~4.3V
- Output current: 250mA
- PSRR: Typ.100dB at 10mA, f = 1KHz; Typ. 45dB at 10mA, f = 1MHz
- Low Dropout: Typ. 115mV at 250mA
- Quiescent current: Typ. 21μA
- Low Output Voltage Noise: Typ. 7μVRMS
- Output Voltage Tolerance: ±2%
- Shutdown Current: Typ. 0.01μμ
- UVLO Threshold(V): Typ. 1.90V
- Recommend capacitor: 1uF
- Stable with 1μF Ceramic Input and Output capacitor
- No Noise Bypass Capacitor Required
- Thermal-Overload Protection
