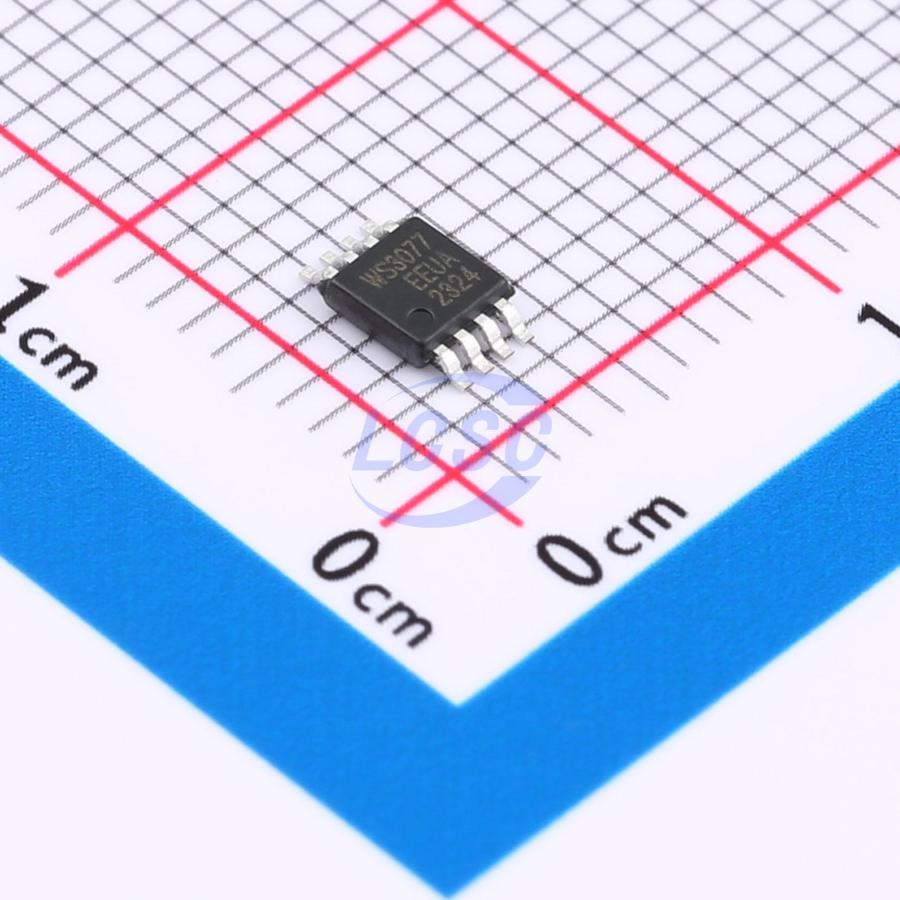

WS3077EEUA
1/1 Transceiver Full RS422, RS485 MSOP8
MSOP8ROHS CompliantActive
WS3077 RS422 Interface
- Manufacturer
- NJGW
- Manufacturer part #
- WS3077EEUA
- Store part #
- C19078073
- Package / case
- MSOP8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C19078073
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.03 | ₹162.03 |
| 10+ | ₹134.80 | ₹1,348.00 |
| 30+ | ₹119.68 | ₹3,590.40 |
| 100+ | ₹102.84 | ₹10,284.00 |
| 500+ | ₹87.49 | ₹43,745.00 |
| 1,000+ | ₹84.04 | ₹84,040.00 |
1 × ₹162.03
₹162.03
excl. GST
₹191.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
WS3077EEUA
₹162.03 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V~5.25V
- Type
- Transceiver
- Data Rate
- 16Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Features
- Overcurrent Protection;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.075 g
Overview
WS3077 is a 3.3V/5V, full-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC with one driver and one receiver. The bus features fail-safe functionality, ensuring the receiver output remains high when the receiver input is open-circuited or short-circuited. The device supports error-free data transmission at 16Mbps, with a receiver input impedance of 1/8 unit load, allowing up to 256 transceivers on the bus for full-duplex communication. All driver outputs provide ±15kV human body model ESD protection. Available in an 8-pin SO package, operating over a temperature range of -40°C to +125°C.
Applications
- Lighting systems
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 3.3V/5V supply voltage
- Error-free data transmission up to 16Mbps
- ±15kV HBM ESD protection on communication ports
- Fail-safe feature
- 1/8 unit load, up to 256 transceivers on a single bus
- 8-pin MSOP package
