NJGWDatasheet (PDF)

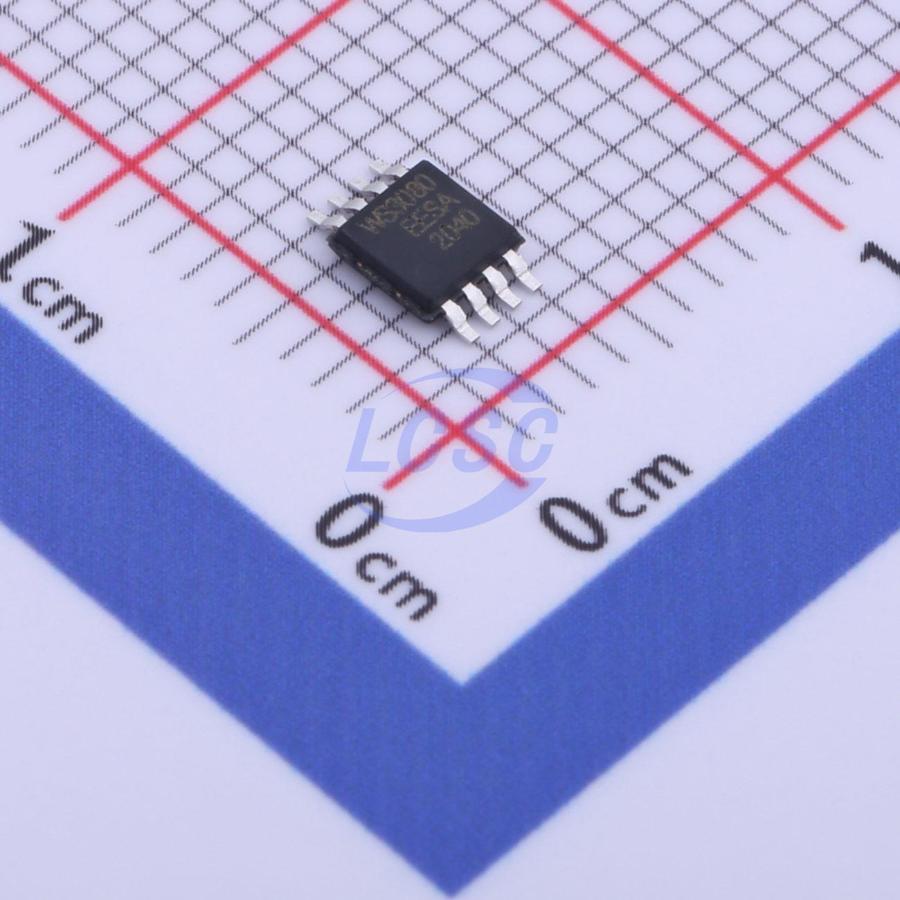

WS3080
1/1 Transceiver Half RS422, RS485 MSOP-8
MSOP-8ROHS CompliantActive
15kV ESD Protection, Fail-safe, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- NJGW
- Manufacturer part #
- WS3080
- Store part #
- C2691414
- Package / case
- MSOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,645 in stock
#C2691414
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.51 | ₹202.55 |
| 50+ | ₹32.47 | ₹1,623.50 |
| 150+ | ₹29.03 | ₹4,354.50 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 2,500+ | ₹21.42 | ₹53,550.00 |
| 5,000+ | ₹20.27 | ₹1,01,350.00 |
5 × ₹40.51
₹202.55
excl. GST
₹239.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
WS3080
₹202.55 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V~5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 450uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.126 g
Overview
The WS3080 is a 5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC, integrating one driver and one receiver. It features enhanced slew-rate limiting to reduce output EMI and reflections caused by mismatched terminations, enabling error-free data transmission at 500kbps. The receiver input impedance is 1/8 unit load, allowing up to 256 transceivers to be connected on the bus for half-duplex communication. All driver outputs provide ±15kV human body model ESD protection. The device is available in an 8-pin MSOP package and operates over a temperature range of -40°C to +125°C.
Applications
- Isolated RS-485 interface
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 5V supply voltage
- Enhanced slew rate limiting helps reduce output EMI and reflections caused by mismatched termination, enabling error-free data transmission at 500kbps
- Communication port with ±15kV human body model ESD protection
- Fail-safe functionality
- 1/8 unit load, up to 256 transceivers can be connected on the same bus
- 8-pin MSOP package
