NJGWDatasheet (PDF)
WS3081
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive

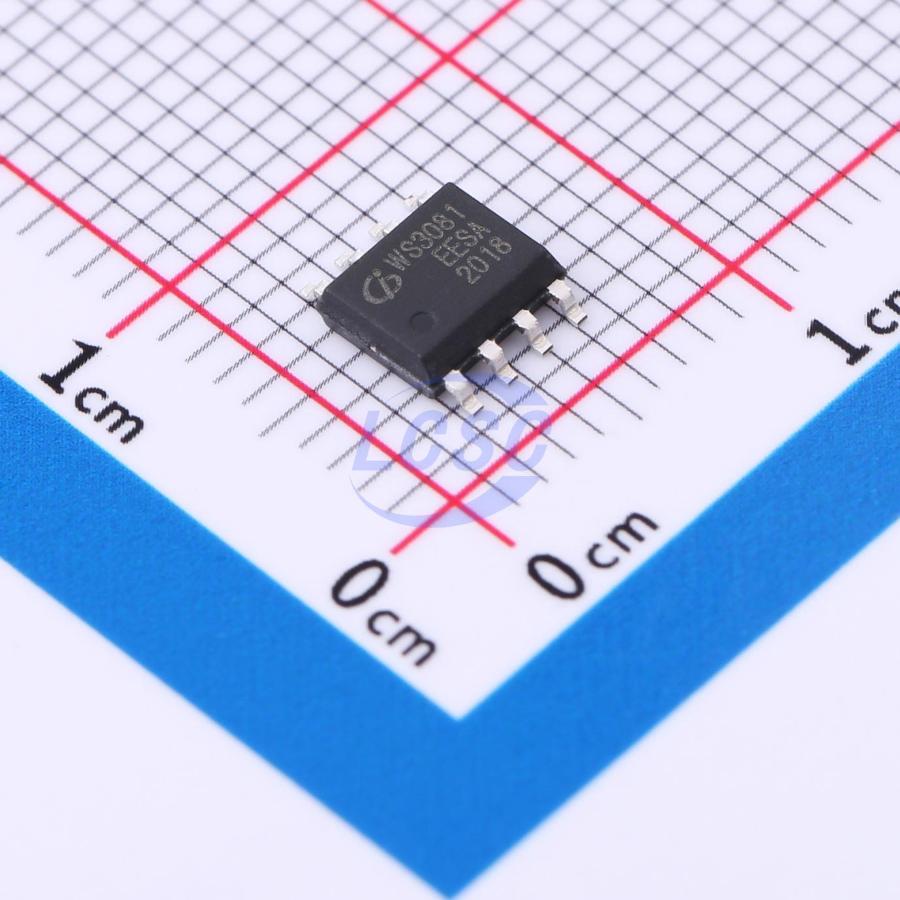

WS3081 3.3V/5V 16Mbps Half-Duplex Transceivers
- Manufacturer
- NJGW
- Manufacturer part #
- WS3081
- Store part #
- C2691428
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,151 in stock
#C2691428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.60 | ₹73.60 |
| 10+ | ₹59.27 | ₹592.70 |
| 30+ | ₹53.20 | ₹1,596.00 |
| 100+ | ₹45.59 | ₹4,559.00 |
| 500+ | ₹34.95 | ₹17,475.00 |
| 1,000+ | ₹33.01 | ₹33,010.00 |
1 × ₹73.60
₹73.60
excl. GST
₹86.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS3081
₹73.60 for 1 + GST
Specifications
- Voltage - Supply
- 3.3V~5.25V
- Type
- Transceiver
- Data Rate
- 16Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.274 g
Overview
WS3081 is a 3.3V/5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC, integrating one driver and one receiver, supporting error-free data transmission up to 16Mbps. The receiver input impedance is 1/8 unit load with operating current as low as 150uA, allowing up to 256 transceivers on the bus for half-duplex communication. All driver outputs feature ±15kV human body model ESD protection. Available in 8-pin SO package, operating over a -40°C to +85°C temperature range.
Applications
- Isolated RS-485 interface
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 3.3V/5V supply voltage
- Error-free data transmission up to 16Mbps
- ±15kV HBM ESD protection on communication ports
- 150µA operating current with fail-safe function
- 1/8 unit load, up to 256 transceivers on a single bus
- 8-pin SO package
