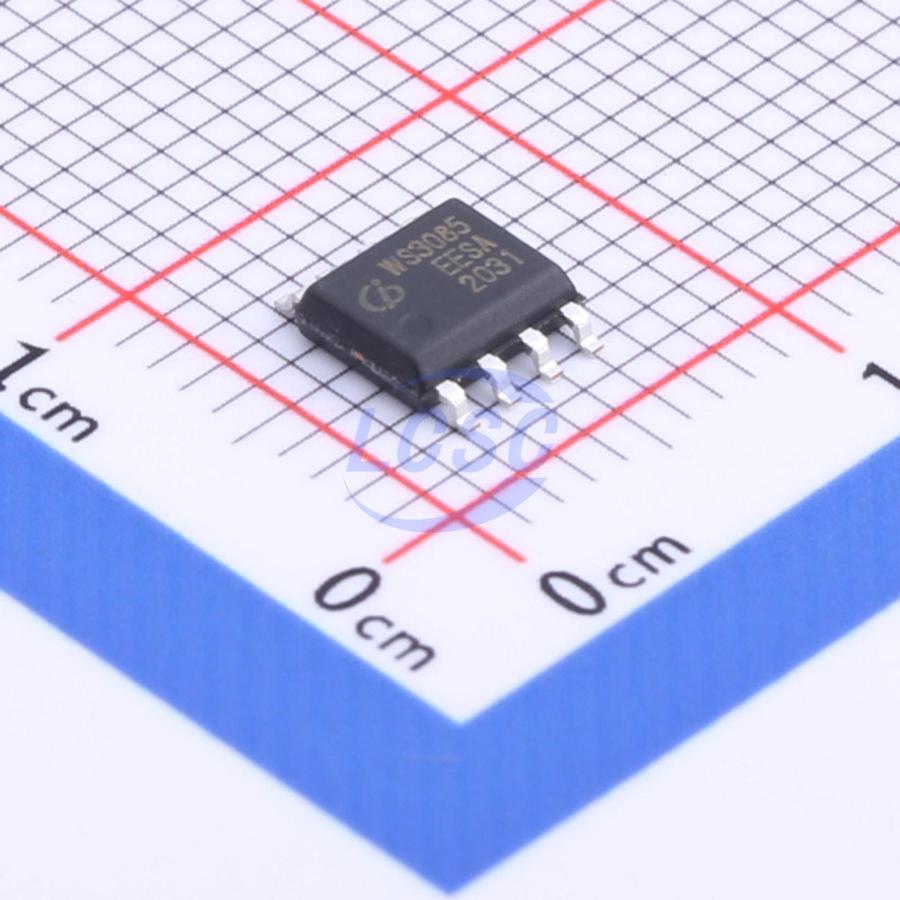

WS3085EESA-GEC
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
WS3085 15kV ESD Protection, Fail-safe, Slew-Rate-Limited RS-485/RS-422 Transceivers
- Manufacturer
- NJGW
- Manufacturer part #
- WS3085EESA-GEC
- Store part #
- C2691412
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,690 in stock
#C2691412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.82 | ₹169.10 |
| 50+ | ₹26.68 | ₹1,334.00 |
| 150+ | ₹23.64 | ₹3,546.00 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 2,500+ | ₹16.59 | ₹41,475.00 |
| 4,000+ | ₹15.57 | ₹62,280.00 |
5 × ₹33.82
₹169.10
excl. GST
₹199.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS3085EESA-GEC
₹169.10 for 5 + GST
Specifications
- Voltage - Supply
- 5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 450uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.249 g
Overview
WS3085 is a 5V, half-duplex, ±15kV ESD-protected RS-485/RS-422 transceiver IC, integrating one driver and one receiver. It features enhanced slew-rate limiting to reduce output EMI and reflections caused by mismatched terminations, enabling error-free data transmission at 500kbps. The receiver input impedance is 1/8 unit load, allowing up to 256 transceivers to be connected on the bus for half-duplex communication. All driver outputs provide ±15kV HBM ESD protection. Available in an 8-pin SO package, operating over a temperature range of -40°C to +125°C.
Applications
- Isolated RS-485 interface
- Energy meters
- Industrial control
- Industrial motor drives
- Automatic HVAC systems
Key features
- 5V supply voltage
- Enhanced slew rate limiting reduces output EMI and reflections caused by mismatched terminations, enabling error-free data transmission at 500kbps
- Communication port with ±15kV human body model ESD protection
- Fail-safe function
- 1/8 unit load, up to 256 transceivers on a single bus
- 8-pin SO package
