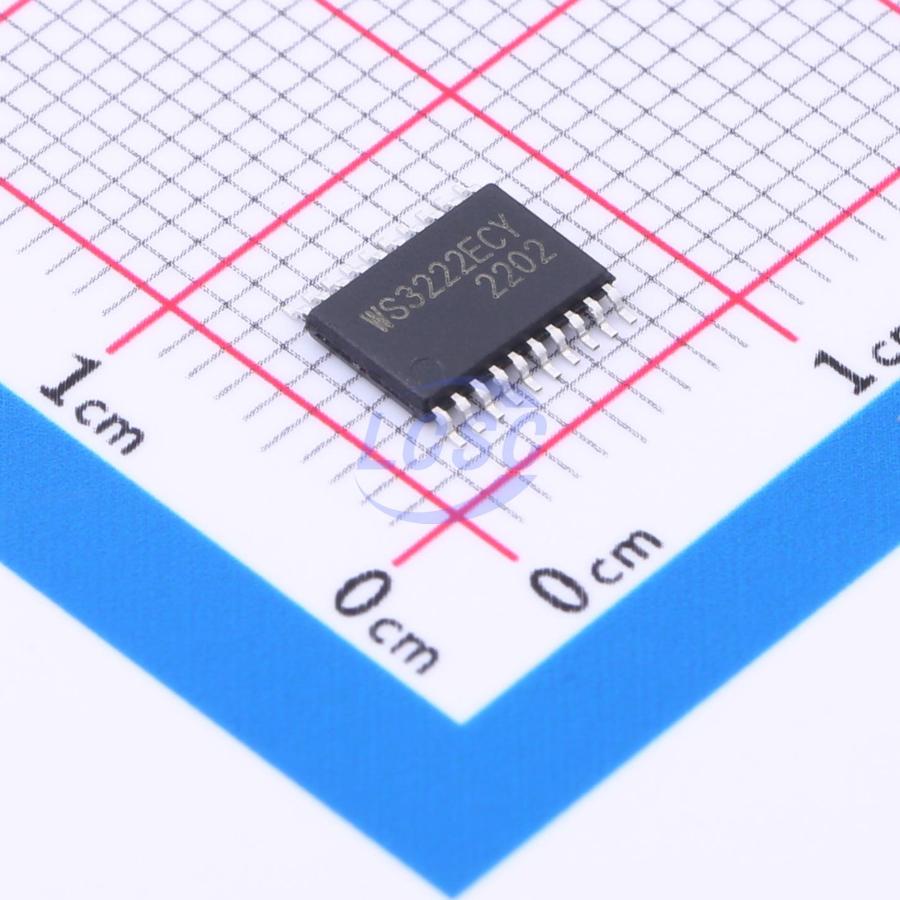

NJGW

WS3222ECY

3V~5V Transceiver 250Kbps TSSOP-20 Drivers, Receivers, Transceivers RoHS

TSSOP-20ROHS CompliantActive

RS232 communication interface chip

Manufacturer: NJGW
Manufacturer part #: WS3222ECY
Store part #: C2691424
Package / case: TSSOP-20
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,495 in stock

#C2691424

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹74.75	₹74.75
10+	₹66.06	₹660.60
30+	₹61.70	₹1,851.00
100+	₹57.58	₹5,758.00
500+	₹54.97	₹27,485.00
1,000+	₹53.67	₹53,670.00

Quantity (min 1)

1 × ₹74.75

₹74.75

excl. GST

₹88.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

WS3222ECY

₹74.75 for 1 + GST

Specifications

Voltage - Supply: 3V~5V
Type: Transceiver
Data Rate: 250Kbps
Operating Temperature: 0℃~+70℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 1mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.322 g

Overview

The WS3222E series are interface ICs powered by a 3V supply, compliant with EIA/TIA-232 and CCITT V.28/V.24 communication standards, and designed to meet low-power requirements. Each device integrates two drivers, two receivers, and a dedicated switched-capacitor voltage converter. These devices operate from a 3V to 3.6V supply, guaranteeing a data rate of 250kbit/s. ESD protection on all RS-232 I/O pins exceeds ±15kV air discharge and ±8kV contact discharge per EN61000-4-2.

Applications

Battery-powered and handheld devices
Laptops and PDAs
Cellular phone data cables
Terminal adapters and POS terminals
Modems

Key features

WS3222E meets EIA/TIA-232F and CCITT V.28/V.24 communication requirements at 3.3V supply
Low quiescent current: 0.5mA typical, 1mA maximum; low shutdown current: 1μA typical, 10μA maximum
Guaranteed 250Kbps data transfer rate
Dedicated switched-capacitor voltage converter
RS232 I/O ESD protection: ±15kV HBM, ±15kV EN61000-4-2 air-gap discharge, ±8kV EN61000-4-2 contact discharge
