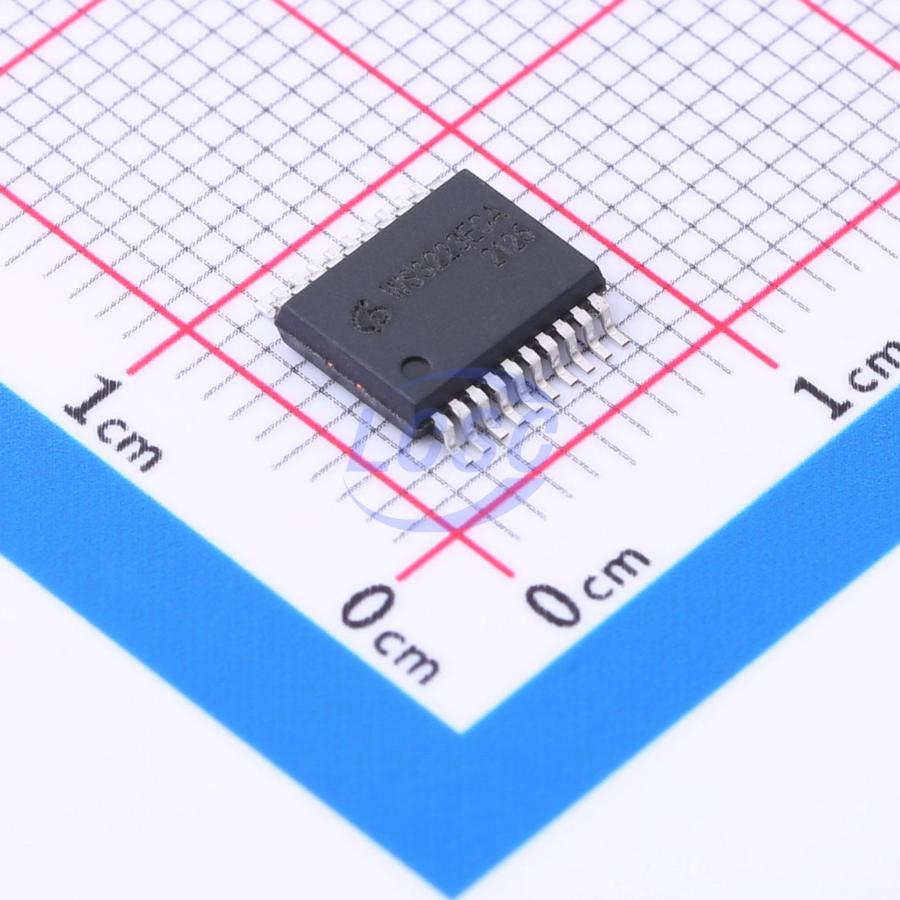

WS3223ECA
3V~5.25V Transceiver 250Kbps SSOP-20 Drivers, Receivers, Transceivers RoHS
SSOP-20ROHS CompliantActive
WS3223E v1.1 RS232 Communication Interface Chip
- Manufacturer
- NJGW
- Manufacturer part #
- WS3223ECA
- Store part #
- C2691425
- Package / case
- SSOP-20
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,045 in stock
#C2691425
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.12 | ₹97.12 |
| 10+ | ₹78.64 | ₹786.40 |
| 30+ | ₹69.50 | ₹2,085.00 |
| 100+ | ₹60.36 | ₹6,036.00 |
| 500+ | ₹52.28 | ₹26,140.00 |
| 1,000+ | ₹49.31 | ₹49,310.00 |
1 × ₹97.12
₹97.12
excl. GST
₹114.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
WS3223ECA
₹97.12 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.25V
- Type
- Transceiver
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Low-power mode;Wake-up function
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.935 g
Overview
The WS3223E series are interface ICs powered by a 3V supply, compliant with EIA/TIA-232 and CCITT V.28/V.24 communication requirements and meeting low-power specifications. Each device integrates two drivers, two receivers, and a dedicated switched-capacitor voltage converter. Operating from a 3V to 3.6V supply, they guarantee a data rate of 250kbit/s. ESD protection on all RS-232 I/O pins exceeds ±15kV air discharge and ±8kV contact discharge per EN61000-4-2. The proprietary XPWRSAVE feature (patent pending) automatically shuts down the internal voltage converter and driver circuitry when the RS-232 cable is disconnected from the host interface or the connected peripheral is powered off.
Applications
- Battery-powered and handheld devices
- Laptops and PDAs
- Cellular phone data cables
- Terminal adapters and POS terminals
- Modems
Key features
- WS3223E meets EIA/TIA-232F and CCITT V.28/V.24 communication requirements at 3.3V supply
- Low quiescent current: 0.5mA typical, 1mA maximum
- Low shutdown current: 1μA typical, 10μA maximum
- Guaranteed 250Kbps data rate
- Dedicated switched-capacitor voltage converter
- ESD protection on RS232 I/O: ±15kV HBM, ±15kV EN61000-4-2 air-gap discharge, ±8kV EN61000-4-2 contact discharge
