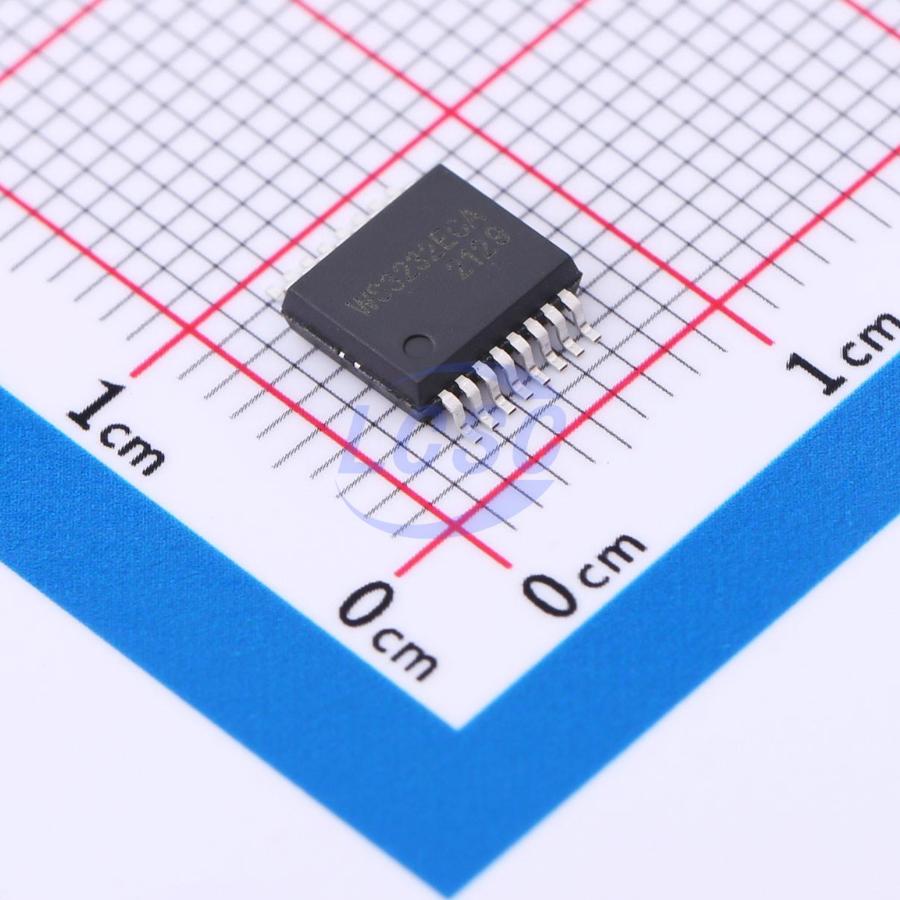

NJGW

WS3232ECA

3.3V~5V Transceiver 250Kbps SSOP-16-208mil Drivers, Receivers, Transceivers RoHS

SSOP-16-208milROHS CompliantActive

Manufacturer: NJGW
Manufacturer part #: WS3232ECA
Store part #: C2691416
Package / case: SSOP-16-208mil
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,831 in stock

#C2691416

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹83.19	₹83.19
10+	₹67.99	₹679.90
30+	₹61.47	₹1,844.10
100+	₹53.44	₹5,344.00
500+	₹41.49	₹20,745.00
1,000+	₹39.32	₹39,320.00

Quantity (min 1)

1 × ₹83.19

₹83.19

excl. GST

₹98.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

WS3232ECA

₹83.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3.3V~5V
Type: Transceiver
Data Rate: 250Kbps
Operating Temperature: 0℃~+70℃
ESD Protect: ±15kV
charge pump: Yes
Number of Drivers: 2
Number of Receivers: 2
Quiescent Supply Current: 0.5mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.4 g

Overview

The WS3232E series are interface ICs powered by a 3V supply, compliant with EIA/TIA-232 and CCITT V.28/V.24 communication requirements, and designed to meet low-power demands. Each device integrates two drivers, two receivers, and a dedicated switched-capacitor voltage converter. These devices operate from a 3V to 5.25V supply, with a guaranteed data rate of 250kbit/s. ESD protection on all RS232 I/O pins exceeds ±15kV air discharge and ±8kV contact discharge per EN61000-4-2.

Applications

Battery-powered and handheld devices
Laptops and PDAs
Cellular phone data cables
Terminal adapters and POS terminals
Modems

Key features

WS3232E meets EIA/TIA-232F and CCITT V.28/V.24 communication requirements at 3.3V or 5V supply
Low quiescent current: 0.5mA typical, 1mA maximum
Guaranteed 250Kbps data rate
Dedicated switched-capacitor voltage converter
RS232 I/O ESD protection: ±15kV HBM, ±15kV EN61000-4-2 air-gap discharge, ±8kV EN61000-4-2 contact discharge
