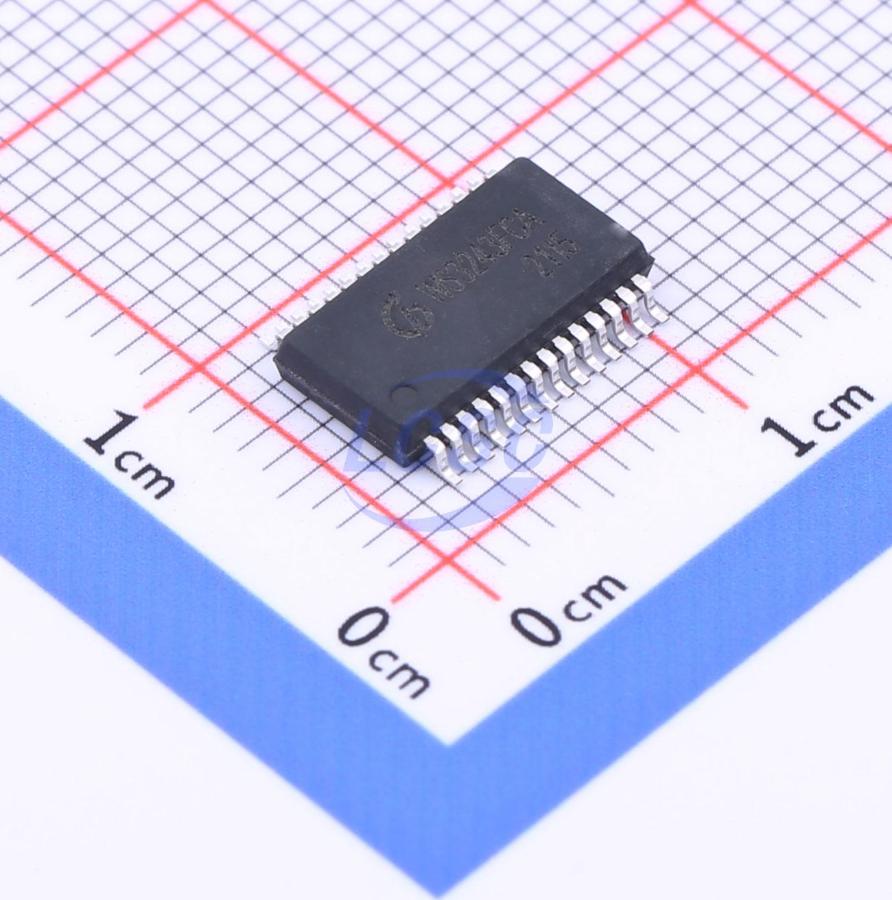

WS3243FCA
Transceiver 3V~5.5V 1Mbit/s SSOP-28-208mil Drivers, Receivers, Transceivers RoHS
SSOP-28-208milROHS CompliantActive
- Manufacturer
- NJGW
- Manufacturer part #
- WS3243FCA
- Store part #
- C2691418
- Package / case
- SSOP-28-208mil
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,341 in stock
#C2691418
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.73 | ₹114.73 |
| 10+ | ₹93.87 | ₹938.70 |
| 30+ | ₹83.65 | ₹2,509.50 |
| 100+ | ₹73.44 | ₹7,344.00 |
| 500+ | ₹58.24 | ₹29,120.00 |
| 1,000+ | ₹54.98 | ₹54,980.00 |
1 × ₹114.73
₹114.73
excl. GST
₹135.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
WS3243FCA
₹114.73 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbit/s
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 3
- Features
- Low-power mode;Wake-up function
- Number of Receivers
- 5
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.448 g
Overview
The WS3243F series are interface ICs powered by 3V, compliant with EIA/TIA-232 and V.28/V.24 communication protocols, and designed to meet low-power requirements. Internally, they include three drivers, five receivers, and a dedicated switched-capacitor voltage converter. These devices operate from a 3V to 5.25V supply, guarantee a data transfer rate of 1000kbit/s, and provide ESD protection on all RS-232 I/O pins exceeding ±15kV air discharge and ±8kV contact discharge per EN61000-4-2. The WS3243F features the proprietary XPWRSAVE function (patent pending), which automatically shuts down the internal voltage converter and driver circuitry when the RS-232 cable is disconnected from the host interface or the connected peripheral device is powered off.
Applications
- Battery-powered and handheld devices
- Laptops and PDAs
- Cellular phone data cables
- Terminal adapters and POS terminals
- Modems
Key features
- WS3243F meets EIA/TIA-232F and CCITT V.28/V.24 communication requirements at 3.3V or 5V supply
- Compliant with EIA/TIA-232 and EIA/TIA-562 protocols, supply voltage down to 2.7V
- Low quiescent current: 0.5mA typical, 1mA maximum
- Low shutdown current: 1μA typical, 10μA maximum
- Dedicated switched-capacitor voltage converter
- Dedicated XPWRSAVE automatic standby power saving
- Guaranteed 1000Kbps data rate
- RS232 I/O ESD protection: ±15kV HBM, ±15kV EN61000-4-2 air-gap discharge, ±8kV EN61000-4-2 contact discharge
