WILLSEMIDatasheet (PDF)

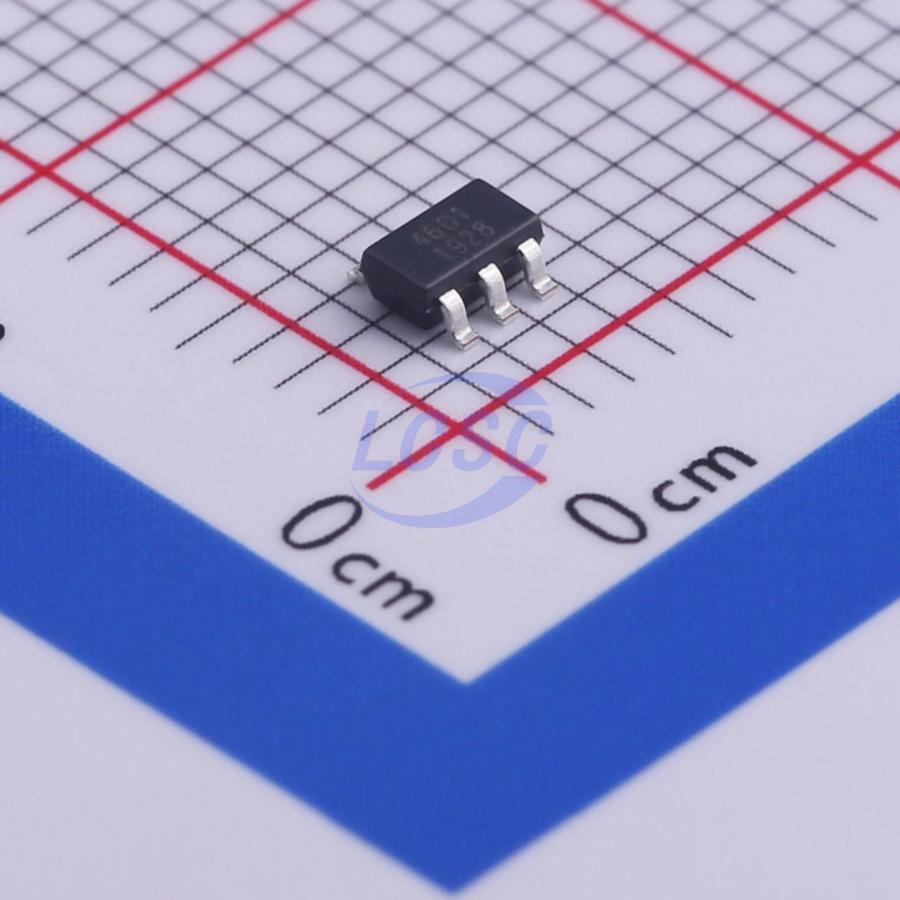

WS4601E-5/TR
1 1A Active High High Side Switch SOT-23-5L Power Distribution Switches, Load Drivers RoHS
SOT-23-5LROHS CompliantActive
Ultra-low on-resistance P-MOSFET high-side switch
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS4601E-5/TR
- Store part #
- C213171
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,745 in stock
#C213171
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.04 | ₹125.20 |
| 50+ | ₹20.59 | ₹1,029.50 |
| 150+ | ₹17.34 | ₹2,601.00 |
| 500+ | ₹14.66 | ₹7,330.00 |
| 2,500+ | ₹14.21 | ₹35,525.00 |
| 5,000+ | ₹13.98 | ₹69,900.00 |
5 × ₹25.04
₹125.20
excl. GST
₹147.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS4601E-5/TR
₹125.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Reverse voltage protection
- number of channels
- 1
- Maximum Continuous Current
- 1A
- Control Input Logic
- Active High
- RDS(on)
- 80mΩ
- Operating Voltage
- 2.5V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The WS4601 is high-side switch with ultra-low ON resistance P-MOSFET. Integrated current-limit function can limit inrush current for heave capacitive load, over load current, and short-circuit current to protect power source. The WS4601 is also integrated reverse protection function to eliminate any reverse current flow across the switch when the device is off. Output auto-discharge while the device shutdown made output voltage off quickly. Thermal shutdown function can protect the device and load. The WS4601 is available in SOT-23-5L package. Standard product is Pb-free and Halogen-free.
Applications
- USB peripherals
- USB Dongle
- USB 3G data card
- 3.3V or 5V Power Switch
- 3.3V or 5V Power Distribution
Key features
- Input voltage range: 2.5~5.5
- Main switch RON: 80mΩ@VIN = 5V
- Continue output current: 1.0A
- Current limit threshold: 1.5A (Typ.)
- Current limit accurate: +/-20%
- Output short current: 0.7A (Typ.)
- Auto discharge
- Reverse block (No “body diode”)
- Over temperature protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WS4612EDA-5/TR#C2931339WILLSEMI · SOT-23-5L | WILLSEMI | SOT-23-5L | 1,185 | ₹15.72 · 1,185 in stock | View |
