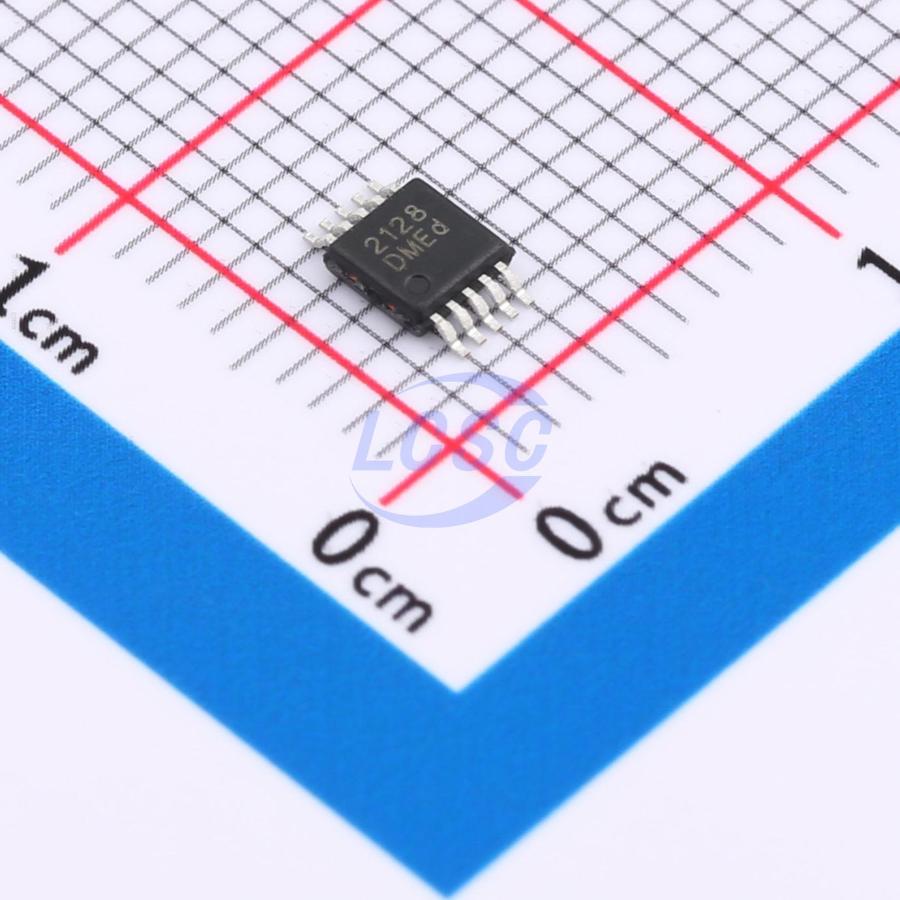

WS742128DM-10/TR
12.8mA 3V~5.5V 2-Channel EMSOP-10L Audio Amplifiers RoHS
Capless 2Vrms to 3Vrms Audio Driver with Adjustable Gain
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS742128DM-10/TR
- Store part #
- C16197399
- Package / case
- EMSOP-10L
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,545 in stock
#C16197399
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.63 | ₹93.15 |
| 50+ | ₹16.41 | ₹820.50 |
| 150+ | ₹15.46 | ₹2,319.00 |
| 500+ | ₹14.27 | ₹7,135.00 |
| 2,500+ | ₹13.74 | ₹34,350.00 |
| 4,000+ | ₹13.42 | ₹53,680.00 |
5 × ₹18.63
₹93.15
excl. GST
₹109.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS742128DM-10/TR
₹93.15 for 5 + GST
Specifications
- Quiescent Current
- 12.8mA
- Voltage - Supply
- 3V~5.5V
- Features
- Analog voltage gain;Enable/shutdown function;Overvoltage protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.001%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 112dB
- Speaker Channels
- 2-Channel
- Power Supply Rejection Ratio (PSRR)
- 90dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The WS742128D is an integrated solution for Set-top box and high definition player, and designed to optimize the audio driver circuit performance while reducing the BOM cost by eliminating the peripheral discrete components for noise reduction. WS742128D features a 3Vrms stereo audio driver that designed to allow for the removal of output AC-coupling capacitors. Featuring single-ended input mode, gain range of ±1N to ±10/ can be achieved via external gain resistor setting. The WS742128D is able to offer 3Vrms output at 600Ω load with 5V supply. Meanwhile, the WS742128D offers built-in shut-down control circuitry for optimal pop-free performance. Under under-voltage condition, WS742128D is able to detect it and mutes the output. WS742128D satisfies MSL3 level requirements.
Applications
- Set-Top Boxes
- High Definition DVD Players
- Car Entertainment System Medical
Key features
- Single Supply Voltage: 3.0V~5.5V
- THD+N: >100dB
- SNR: >112dB
- -40°C to 85°C Operation Range
- Voltage Output at 600Ω Load: 2Vrms with 3.3V supply voltage, 3Vrms with 5.0V supply voltage
- No Pop/Clicks Noise when Power ON/OFF
- No Need Output DC-Blocking Capacitors
- Optimized Frequency Response between 20Hz~20kHz
- Accepting Differential Input
- Featuring external under voltage mute
- Ultra Low noise and THD
