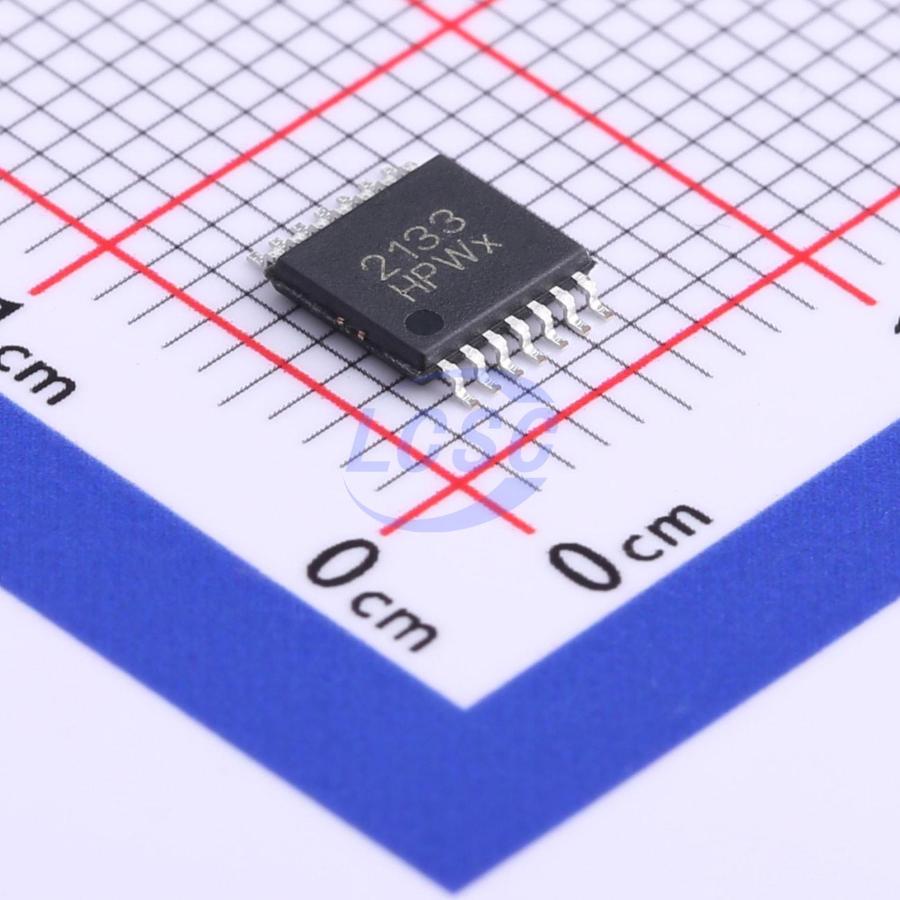

WILLSEMI

WS742133H-14/TR

3V~5.5V 12.6mA 2-Channel TSSOP-14 Audio Amplifiers

TSSOP-14RoHSActive

Capless 2Vrms to 3Vrms Line Driver with Adjustable Gain

Manufacturer: WILLSEMI
Manufacturer part #: WS742133H-14/TR
Store part #: C717883
Package / case: TSSOP-14
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,170 in stock

#C717883

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.10	₹130.50
50+	₹20.55	₹1,027.50
150+	₹18.16	₹2,724.00
500+	₹15.19	₹7,595.00
2,500+	₹13.80	₹34,500.00
4,000+	₹13.01	₹52,040.00

Quantity (min 5, multiples of 5)

5 × ₹26.10

₹130.50

excl. GST

₹153.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

WS742133H-14/TR

₹130.50 for 5 + GST

Specifications

Voltage - Supply: 3V~5.5V
Quiescent Current: 12.6mA
Features: Enable/shutdown function;Automatic mute/no-noise switch;Overvoltage protection
Total Harmonic Distortion + Noise (THD+N): 0.001%
Operating Temperature: -40℃~+85℃
Number of Inputs: 2 Pairs Differential Inputs
Signal-to-Noise Ratio: 112dB
Speaker Channels: 2-Channel
Power Supply Rejection Ratio (PSRR): 90dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.115 g

Overview

The WS742133 is an integrated solution for Set-top box and high definition player, and designed to optimize the audio driver circuit performance while reducing the BOM cost by eliminating the peripheral discrete components for noise reduction. It features a 3Vrms stereo audio driver that allows for the removal of output AC-coupling capacitors. Featuring differential input mode, gain range of ±1 to ±10 can be achieved via external gain resistor setting. The WS742133 is able to offer 3Vrms output at 600Ω load with 5V supply. Meanwhile, it offers built-in shut-down control circuitry for optimal pop-free performance. Under under-voltage condition, it is able to detect it and mutes the output. WS742128 satisfies MSL3 level requirements.

Applications

Set-Top Boxes
High Definition DVD Players
Car Entertainment System
Medical

Key features

Single Supply Voltage: 3.0V ~ 5.5V
THD+N: >100dB
SNR: >112dB
-40°C to 85°C Operation Range
Voltage Output at 600Ω Load: 2Vrms with 3.3V supply voltage, 3Vrms with 5.0V supply voltage
No Pop/Clicks Noise when Power ON/OFF
No Need Output DC-Blocking Capacitors
Optimized Frequency Response between 20Hz ~ 20kHz
Accepting Differential Input
Featuring external under voltage mute
Available in TSSOP-14L package
Ultra Low noise and THD
