MSKSEMI

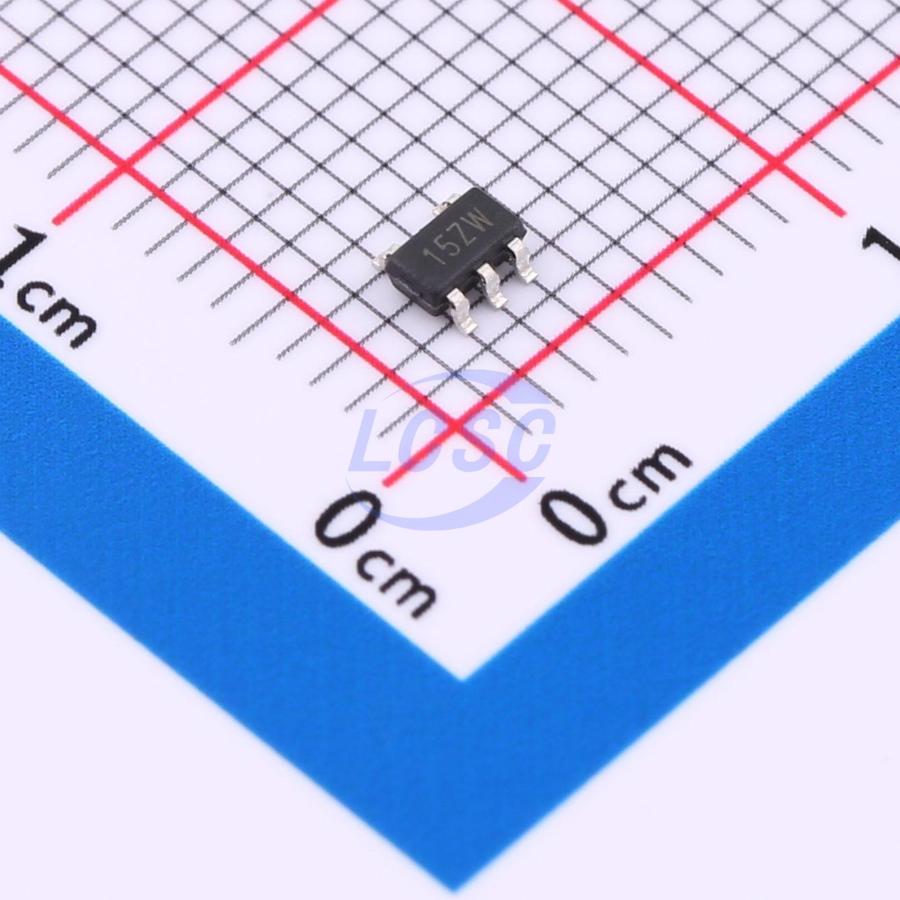

XC6201P302MR-MS

3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5LRoHSActive

Low Dropout Linear Regulator ICs

Manufacturer: MSKSEMI
Manufacturer part #: XC6201P302MR-MS
Store part #: C22462569
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,355 in stock

#C22462569

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹13.73	₹68.65
50+	₹10.85	₹542.50
150+	₹9.42	₹1,413.00
500+	₹8.33	₹4,165.00
2,500+	₹7.47	₹18,675.00
5,000+	₹7.04	₹35,200.00

Quantity (min 5, multiples of 5)

5 × ₹13.73

₹68.65

excl. GST

₹81.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC6201P302MR-MS

₹68.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 2uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 12V
Output Type: Fixed
Features: Over Current Protection;Input overvoltage protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

XC6201PXXXXX-MS series are a set of Low Dropout Linear Regulator ICs implemented in CMOS technology. They can withstand voltage 10V. And they are available with low voltage drop and low quiescent current, widely used in audio, video and communication appliances. XC6201PXXXXX-MS series are linear voltage regulator ICs withstanding 12V voltage. The series IC consists of a voltage reference, an error amplifier, a current limiter and a phase compensation circuit plus a driver transistor. The output stabilization capacitor is also compatible with low ESR ceramic capacitors. The over current protection circuit and the over voltage protection circuit are built - in. The protection circuit will operate when the output current or input voltage reaches limit level.

Applications

Battery - powered Equipments
Communication Equipments
Audio/Video Equipments
Smart Battery Packs
Smoke Detectors
CO2 DETECTORS

Key features

Low Power Consumption
Low Voltage Drop
Low Temperature Coefficient
Withstanding Voltage 12V
Quiescent Current 2.0μA
Output Voltage Accuracy: tolerance ±2%
High output current: 300mA
